Snakemake

Snakemake#

A small structural-MRI pipeline using FSL built with Snakemake — a workflow manager — running on Neurodesk. The workflow is split across workflow/Snakefile and per-step rule files in workflow/rules/.

Author: Monika Doerig

Date: 11 June 2026

License:

Note: This notebook uses neuroimaging tools from Neurocontainers; those tools retain their original licenses. Please see Neurodesk citation guidelines for details.

✨ Use of AI ▽

This notebook was generated with assistance from Anthropic's Claude (via Claude Code) across several iterations and then revised by the author. The author reviewed the final content and takes responsibility for it.

Citation and Resources#

Tools included in this workflow#

Snakemake

FSL (BET + FAST)

Dataset#

  • Gorgolewski KJ, Storkey A, Bastin ME, Whittle IR, Wardlaw JM, and Pernet CR (1970). A test-retest fMRI dataset for motor, language and spatial attention functions. . OpenNeuro. [Dataset] doi: doi:10.18112/openneuro.ds000114.v1.0.2

Educational resources#

1. What is Snakemake, and why use it on Neurodesk?#

Snakemake is a file-based workflow management system: you declare rules of the form “to produce output X, run command C on input Y,” and Snakemake works out the dependency graph and the run order. It’s heavily inspired by GNU Make but uses a Python-based markup language and adds:

  • Wildcards — write a rule once, run it across many subjects (sub-{subject}_T1w.nii.gz).

  • DAG resolution + visualisation — Snakemake plans the whole workflow and can draw it for you.

  • Resumability — re-running only redoes what’s changed, based on file timestamps.

  • Parallel execution — out-of-the-box across local cores, or across cluster nodes via SLURM/Kubernetes/cloud profiles.

  • Native module support — the envmodules: directive lets each rule declare its own Lmod modules, which maps cleanly onto Neurodesk’s module system.

  • Modular layout — a top-level Snakefile can include: per-step rule files (workflow/rules/<step>.smk), so a real workflow stays readable as it grows.

Other workflow engines (Nextflow, Nipype, Pydra) tackle the same problem with different ergonomics. Snakemake’s particular fit for Neurodesk comes from two things: envmodules: lets each rule pin its own software version against Neurodesk’s Lmod tree, and the same Snakefile runs identically from a Jupyter cell during development and on SLURM when you scale out. You don’t rewrite the workflow to move between scales — only the executor flag changes.

Note

How this notebook handles tool loading. We do not pre-load any modules in this notebook. Each Snakemake rule declares its own modules via the envmodules: directive, and we run Snakemake with --use-envmodules. This is the idiomatic pattern — rules are self-describing — and the same Snakefile runs unchanged on a single laptop or across a SLURM cluster.

A simpler alternative is to pre-load FSL once at the notebook level (Python: await module.load('fsl/6.0.7.18')) and let rules invoke FSL commands directly without a module load prefix. That works because the rule subprocess inherits the Python kernel’s environment — including the PATH extension that module.load just made.

2. Load software and import libraries#

We do not load any neuroimaging modules here (which is different from most other example notebooks on NeurodeskEDU). Each Snakemake rule will load its own modules at execution time via the envmodules: directive.

import module
await module.list()  # should be empty / no neuroimaging tools loaded

[]

Let’s install python packages and import them:

%%capture
!pip install nilearn nibabel pandas pybids snakemake

import subprocess
import os
from pathlib import Path
from IPython.display import SVG, Image, display
from bids import BIDSLayout
import numpy as np
import nibabel as nib
import matplotlib.pyplot as plt
from nilearn import plotting

3. Project layout and data preparation#

3.1. Layout#

We work inside a dedicated directory snakemake_demo/. The full tree will be shown after the workflow has run — the cell below creates only the two scaffolding directories.

snakemake_demo/
├── workflow/
│   ├── Snakefile             # entry point: includes + rule all
│   ├── rules/
│   │   ├── common.smk        # shared constants + T1_PATH
│   │   ├── bet.smk           # FSL bet
│   │   ├── fast.smk          # FSL fast
│   │   └── qc.smk            # 3-panel QC figure
│   └── scripts/
│       └── qc.py             # consumes the snakemake-object API
├── ds000114/                 # raw data (DataLad-managed)
├── results/                  # BIDS-derivatives-style outputs
└── logs/                     # per-rule stdout/stderr

Splitting one rule per .smk file means each step can be read, reviewed, and tested in isolation. The top-level Snakefile becomes a one-screen summary for the pipeline.

workdir = Path('snakemake_demo')
(workdir / 'workflow' / 'rules').mkdir(parents=True, exist_ok=True)
(workdir / 'workflow' / 'scripts').mkdir(parents=True, exist_ok=True)
print('Working directory:', workdir.resolve())

Working directory: /home/jovyan/workspace/books/examples/workflows/snakemake_demo

3.2. Data download#

We pull the ds000114 dataset via DataLad. datalad install clones the dataset metadata (creating broken git-annex symlinks for every file), then datalad get fetches the actual T1w content for the three subjects we’ll process.

%%bash
cd snakemake_demo
[ -d ds000114 ] || datalad install https://github.com/OpenNeuroDatasets/ds000114.git
for s in 01 02 03; do
    datalad get -d ds000114 ds000114/sub-${s}/ses-test/anat/sub-${s}_ses-test_T1w.nii.gz
done
ls -lh ds000114/sub-0{1,2,3}/ses-test/anat/*_T1w.nii.gz

install(ok): /home/jovyan/workspace/books/examples/workflows/snakemake_demo/ds000114 (dataset)
get(ok): sub-01/ses-test/anat/sub-01_ses-test_T1w.nii.gz (file) [from s3-PUBLIC...]
get(ok): sub-02/ses-test/anat/sub-02_ses-test_T1w.nii.gz (file) [from s3-PUBLIC...]
get(ok): sub-03/ses-test/anat/sub-03_ses-test_T1w.nii.gz (file) [from s3-PUBLIC...]
lrwxrwxrwx 1 jovyan jovyan 143 Jun 12 02:46 ds000114/sub-01/ses-test/anat/sub-01_ses-test_T1w.nii.gz
 -> ../../../.git/annex/objects/QP/jm/MD5E-s8677710--d6820f6cb8fb965e864419c14f6a22d5.nii.gz/MD5E-s8
677710--d6820f6cb8fb965e864419c14f6a22d5.nii.gz
lrwxrwxrwx 1 jovyan jovyan 145 Jun 12 02:46 ds000114
/sub-02/ses-test/anat/sub-02_ses-test_T1w.nii.gz -> ../../../.git/annex/objects/qq/gm/MD5E-s10025785
--0e790e210a275d76e3f2f4d895df6358.nii.gz/MD5E-s10025785--0e790e210a275d76e3f2f4d895df6358.nii.gz
lr
wxrwxrwx 1 jovyan jovyan 143 Jun 12 02:46 ds000114/sub-03/ses-test/anat/sub-03_ses-test_T1w.nii.gz -
> ../../../.git/annex/objects/P9/kj/MD5E-s7970968--75bb38265ea96864bfa0b012ba21b0b0.nii.gz/MD5E-s797
0968--75bb38265ea96864bfa0b012ba21b0b0.nii.gz

[INFO] Attempting a clone into /home/jovyan/workspace/books/examples/workflows/snakemake_demo/ds0001
14
[INFO] Attempting to clone from https://github.com/OpenNeuroDatasets/ds000114.git to /home/jovya
n/workspace/books/examples/workflows/snakemake_demo/ds000114
[INFO] Start enumerating objects
[INFO] Start counting objects
[INFO] Start compressing objects
[INFO] Start receiving objects
[INFO] Start resolving deltas
[INFO] Completed clone attempts for Dataset(/home/jovyan/workspace/books/examples/workflows/snakemak
e_demo/ds000114)
[INFO] Remote origin not usable by git-annex; setting annex-ignore
[INFO] https://github.com/OpenNeuroDatasets/ds000114.git/config download failed: Not Found
[INFO] Remote origin not usable by git-annex; setting annex-ignore
[INFO] https://github.com/OpenNeuroDatasets/ds000114.git/config download failed: Not Found
[INFO] access to 1 dataset sibling s3-PRIVATE not auto-enabled, enable with:
| 		datalad siblings -d
 "/home/jovyan/workspace/books/examples/workflows/snakemake_demo/ds000114" enable -s s3-PRIVATE

3.3. BIDS sanity check with pybids#

Before we point a workflow at this dataset, a quick BIDSLayout query confirms it parses as BIDS and that the subjects we plan to process have the file type we expect. validate=True is pybids’ default: it uses an internal regex/schema to include only files whose names match BIDS patterns — non-matching files are silently excluded from the layout (no exception is raised for individual files; PyBIDS does still raise if the dataset root itself is non-BIDS, e.g. missing dataset_description.json). This is filename-level validation only; for full metadata/sidecar/inheritance auditing, run the standalone bids-validator Node.js tool.

See the dedicated PyBIDS notebook for richer queries.

layout = BIDSLayout(workdir / 'ds000114')  # validate=True is the default
subjects = layout.get_subjects()
print(f'{len(subjects)} subjects in dataset; first few: {subjects[:5]}')
print()
for sub in ['01', '02', '03']:
    t1s = layout.get(subject=sub, suffix='T1w', extension='.nii.gz', return_type='file')
    print(f'sub-{sub}: {len(t1s)} T1w file(s)')

10 subjects in dataset; first few: ['01', '02', '03', '04', '05']

sub-01: 2 T1w file(s)
sub-02: 2 T1w file(s)
sub-03: 2 T1w file(s)

4. The workflow#

We build the workflow up one file at a time, the same order Snakemake reads them:

  1. rules/common.smk — shared constants and the raw T1w path. Loaded first so every other rule can see them.

  2. rules/bet.smk — FSL bet for brain extraction. Its input is T1_PATH from common.smk.

  3. rules/fast.smk — FSL fast for 3-class tissue segmentation. Uses shadow: "shallow" to discard FAST’s many intermediate files.

  4. rules/qc.smk — a 3-panel QC figure. Uses the script: directive.

  5. Snakefile — just include: directives and a one-line rule all.

Outputs follow BIDS-derivatives conventions: sub-XX_desc-brain_T1w.nii.gz for the skull-stripped brain, sub-XX_dseg.nii.gz for the discrete segmentation. The QC PNGs use the same naming style (sub-XX_desc-qc.png in a figures/ subdir) but live outside the strict spec, which doesn’t formally cover QC images.

4.1. rules/common.smk — constants#

These constants live in their own file and are loaded first (via the include: directive at the top of the Snakefile), so every other rule can reference SUBJECTS, BIDS_ROOT, SESSION, and T1_PATH by name. Uppercase signals “constant” — Python convention.

T1_PATH is a Python f-string with two kinds of braces. Single braces around {BIDS_ROOT} and {SESSION} are interpolated immediately when the file is included — those are plain Python variables. The double braces around {{subject}} are an f-string escape: they survive interpolation as a literal {subject}, which Snakemake later sees as a wildcard and resolves per job. The result is one path template that’s partly Python-resolved at module load and partly Snakemake-resolved at run time.

common_smk = '''SUBJECTS = ["01", "02", "03"]
BIDS_ROOT = "ds000114"
SESSION = "ses-test"

# Raw T1w path for one subject. The double-brace `{{subject}}` keeps the
# Snakemake wildcard unsubstituted at module-load time.
T1_PATH = f"{BIDS_ROOT}/sub-{{subject}}/{SESSION}/anat/sub-{{subject}}_{SESSION}_T1w.nii.gz"
'''
(workdir / 'workflow' / 'rules' / 'common.smk').write_text(common_smk)
print(common_smk)

SUBJECTS = ["01", "02", "03"]
BIDS_ROOT = "ds000114"
SESSION = "ses-test"

# Raw T1w path for one subject. The double-brace `{{subject}}` keeps the
# Snakemake wildcard unsubstituted at module-load time.
T1_PATH = f"{BIDS_ROOT}/sub-{{subject}}/{SESSION}/anat/sub-{{subject}}_{SESSION}_T1w.nii.gz"

4.2. rules/bet.smk — brain extraction#

The input: references T1_PATH from common.smk — Snakemake substitutes the {subject} wildcard at job-resolution time, so the path is written exactly once in the workflow. The output uses BIDS-derivative naming (_desc-brain_T1w.nii.gz). The shell line runs bet with -f 0.5 (the fractional intensity threshold, BET’s main tuning knob — lower values strip less aggressively) and redirects both stdout and stderr into the per-rule log via &> {log}.

A docstring, a log:, envmodules:, threads: and a resources: hint together make this rule self-describing for cluster execution: switching to the SLURM executor later needs no extra configuration — each job already knows which Lmod module to load and how much memory to request.

bet_smk = '''rule bet:
    "Brain-extract T1w with FSL bet"
    input:
        img=T1_PATH,
    output:
        img="results/sub-{subject}/anat/sub-{subject}_desc-brain_T1w.nii.gz",
    log:
        "logs/bet/sub-{subject}.log",
    envmodules:
        "fsl/6.0.7.18",
    threads: 1
    resources:
        mem_mb=2000,
    shell:
        """
        bet {input.img} {output.img} -f 0.5 &> {log}
        """
'''
(workdir / 'workflow' / 'rules' / 'bet.smk').write_text(bet_smk)
print(bet_smk)

rule bet:
    "Brain-extract T1w with FSL bet"
    input:
        img=T1_PATH,
    output:
        img="results/sub-{subject}/anat/sub-{subject}_desc-brain_T1w.nii.gz",
    log:
        "logs/bet/sub-{subject}.log",
    envmodules:
        "fsl/6.0.7.18",
    threads: 1
    resources:
        mem_mb=2000,
    shell:
        """
        bet {input.img} {output.img} -f 0.5 &> {log}
        """

4.3. rules/fast.smk — tissue segmentation#

FSL fast is a tissue-segmentation tool. Given a brain-extracted T1w, it writes several files based on a user-supplied prefix (-o ): partial-volume probability maps for CSF/GM/WM (_pve_0/1/2), the discrete hard-classified map (_seg), and a couple of intermediate views (_mixeltype, _pveseg). We only consume _seg.

Rather than declare every byproduct as an output, the rule uses shadow: "shallow". Snakemake runs the job in a temporary directory and, when it finishes, copies only files listed in output: back into results/; everything else is discarded with the shadow dir. That keeps the derivatives tree clean without us having to know FAST’s full output surface.

The params: prefix entry is a small lambda that computes the prefix from output.img by stripping the BIDS suffix, so the prefix is the path FAST should write its byproducts under. The rule’s shell: block then passes it through as fast -o {params.prefix} ..., so the prefix FAST sees is always derived from the same path Snakemake tracks. If we later renamed or relocated the output, the prefix would follow automatically. Writing the prefix as a hardcoded string would split that single source of truth into two places, and Snakemake’s linter also flags hardcoded params: values for exactly this portability reason.

fast_smk = '''rule fast:
    "3-class tissue segmentation with FSL fast"
    input:
        img=rules.bet.output.img,
    output:
        img="results/sub-{subject}/anat/sub-{subject}_dseg.nii.gz",
    params:
        prefix=lambda wildcards, output: output.img.removesuffix("_dseg.nii.gz"),
    log:
        "logs/fast/sub-{subject}.log",
    envmodules:
        "fsl/6.0.7.18",
    threads: 2
    resources:
        mem_mb=2000,
    shadow: "shallow"
    shell:
        """
        export OMP_NUM_THREADS={threads}
        fast -t 1 -n 3 -o {params.prefix} {input.img} &> {log}
        mv {params.prefix}_seg.nii.gz {output.img}
        """
'''
(workdir / 'workflow' / 'rules' / 'fast.smk').write_text(fast_smk)
print(fast_smk)

rule fast:
    "3-class tissue segmentation with FSL fast"
    input:
        img=rules.bet.output.img,
    output:
        img="results/sub-{subject}/anat/sub-{subject}_dseg.nii.gz",
    params:
        prefix=lambda wildcards, output: output.img.removesuffix("_dseg.nii.gz"),
    log:
        "logs/fast/sub-{subject}.log",
    envmodules:
        "fsl/6.0.7.18",
    threads: 2
    resources:
        mem_mb=2000,
    shadow: "shallow"
    shell:
        """
        export OMP_NUM_THREADS={threads}
        fast -t 1 -n 3 -o {params.prefix} {input.img} &> {log}
        mv {params.prefix}_seg.nii.gz {output.img}
        """

4.4. rules/qc.smk — QC figure via the script: directive#

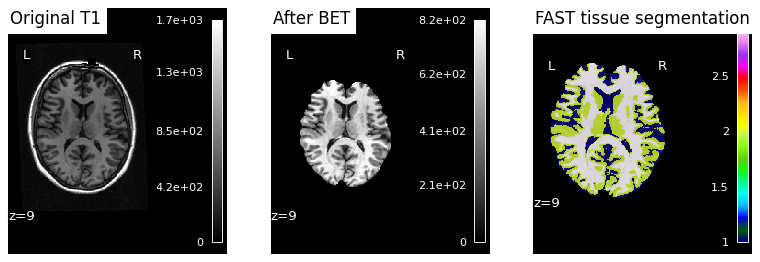

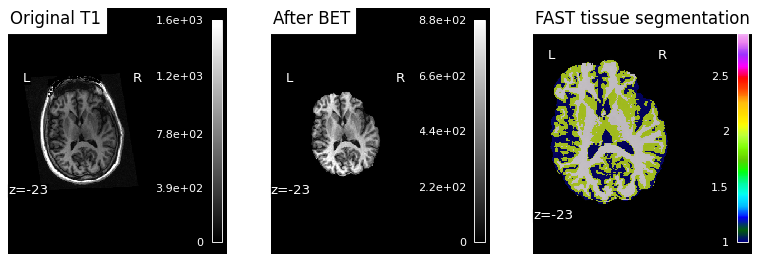

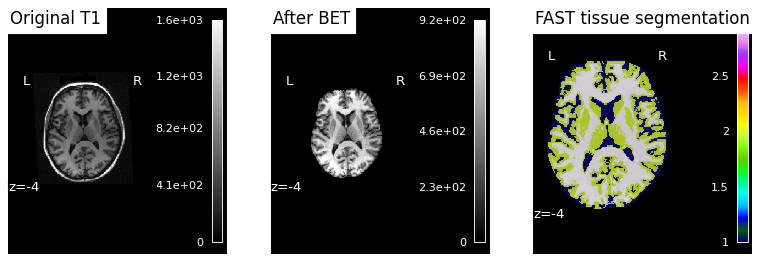

The QC rule generates a three-panel sanity-check figure for each subject: the raw T1w, the brain-extracted volume from BET, and the FAST segmentation overlaid on the brain. The point is to let a reader scroll through subjects and spot misregistrations or failed brain extractions at a glance, without opening any viewer.

Snakemake’s script: directive is a better fit here than shell: because the QC step is logic-heavy (load NIfTI, slice volume, draw overlay, write PNG) and would be awkward to wedge into a one-line shell command. script: launches a Python interpreter that already has access to a global snakemake object, so ../scripts/qc.py reads snakemake.input.original, snakemake.input.brain, snakemake.input.seg, snakemake.output.png, and snakemake.log[0] directly — no argparse, no path strings passed on the command line, no risk of the wrapper and the script disagreeing about field order.

The two derivative inputs are referenced via rules.bet.output.img and rules.fast.output.img — the same single-source-of-truth pattern used elsewhere in the pipeline. The QC rule never re-types a file path; it borrows the one already declared upstream, so renaming any output ripples through automatically.

qc_smk = '''rule qc:
    "Produce a 3-panel QC figure (T1 → BET → FAST overlay)"
    input:
        original=T1_PATH,
        brain=rules.bet.output.img,
        seg=rules.fast.output.img,
    output:
        png="results/sub-{subject}/figures/sub-{subject}_desc-qc.png",
    log:
        "logs/qc/sub-{subject}.log",
    threads: 1
    resources:
        mem_mb=2000,
    script:
        "../scripts/qc.py"
'''
(workdir / 'workflow' / 'rules' / 'qc.smk').write_text(qc_smk)
print(qc_smk)

rule qc:
    "Produce a 3-panel QC figure (T1 → BET → FAST overlay)"
    input:
        original=T1_PATH,
        brain=rules.bet.output.img,
        seg=rules.fast.output.img,
    output:
        png="results/sub-{subject}/figures/sub-{subject}_desc-qc.png",
    log:
        "logs/qc/sub-{subject}.log",
    threads: 1
    resources:
        mem_mb=2000,
    script:
        "../scripts/qc.py"

4.5. workflow/scripts/qc.py#

When Snakemake invokes a Python script via the script: directive, it prepends a preamble that defines a module-level snakemake object — no import is needed. (Linters and IDE type-checkers don’t know about this injection and will flag the bare snakemake reference; the # noqa: F821 comments in the script silence that noise.)

The script reads snakemake.input.<name>, snakemake.output.<name>, and snakemake.log[0] directly, then renders a three-panel figure with nilearn: the original T1w, the BET-extracted brain, and the FAST tissue segmentation. For each subject the axial cut is placed at the z-coordinate of the brain’s centre of mass (computed in millimetres via the BET affine), so the slice always lands inside the brain even though subjects sit at different positions in native space. The two anatomical panels (plot_anat) clamp vmax to the 99th percentile of non-zero voxels — that keeps bright outliers and large empty backgrounds from washing out contrast. The third panel (plot_roi) overlays the discrete FAST labels (1 = CSF, 2 = GM, 3 = WM) on the BET brain.

qc_script = '''# Snakemake's `script:` directive prepends a preamble that defines a
# module-level `snakemake` object — no import needed. Linters report it as an undefined name (pyflakes F821, ruff F821);
# the `# noqa: F821` comments silence that.
import numpy as np
import nibabel as nib
import matplotlib.pyplot as plt
from nilearn import plotting

original_path = snakemake.input.original  # noqa: F821
brain_path = snakemake.input.brain  # noqa: F821
seg_path = snakemake.input.seg  # noqa: F821
out_path = snakemake.output.png  # noqa: F821

# Pick a *per-subject* anatomical cut at the brain's centre of mass (in mm),
# computed from the BET-extracted brain. Using the voxel-grid centre or a fixed
# value like z=0 lands at different anatomical levels per subject in native space.
brain_img = nib.load(brain_path)
brain_data = brain_img.get_fdata()
centroid_vox = np.argwhere(brain_data > 0).mean(axis=0)
# Append 1 for homogeneous coords so the 4x4 affine maps voxel -> mm.
z_mm = float((brain_img.affine @ np.append(centroid_vox, 1.0))[2])

# Per-image vmax at the 99th percentile of non-zero voxels keeps contrast healthy
# (otherwise a few bright outliers - or large empty background - wash everything out).
def pct99(path):
    data = nib.load(path).get_fdata()
    nz = data[data > 0]
    return float(np.percentile(nz, 99)) if nz.size else None

fig, axes = plt.subplots(1, 3, figsize=(12, 4))

plotting.plot_anat(
    original_path, display_mode="z", cut_coords=[z_mm], axes=axes[0],
    title="Original T1", vmax=pct99(original_path),
)
plotting.plot_anat(
    brain_path, display_mode="z", cut_coords=[z_mm], axes=axes[1],
    title="After BET", vmax=pct99(brain_path),
)
# FAST seg values: 1 = CSF, 2 = gray matter, 3 = white matter.
plotting.plot_roi(
    seg_path, bg_img=brain_path, display_mode="z", cut_coords=[z_mm],
    axes=axes[2], title="FAST tissue segmentation",
)

fig.savefig(out_path, dpi=80, bbox_inches="tight")
plt.close(fig)
'''
(workdir / 'workflow' / 'scripts' / 'qc.py').write_text(qc_script)
print('Wrote', (workdir / 'workflow' / 'scripts' / 'qc.py').resolve())

Wrote /home/jovyan/workspace/books/examples/workflows/snakemake_demo/workflow/scripts/qc.py

4.6. workflow/Snakefile — the entry point#

With each step in its own .smk file, the top-level Snakefile is essentially a one-screen summary: four include: lines (with common.smk first, so that SUBJECTS and T1_PATH are defined before the rules that use them) and a rule all.

rule all is a Snakemake convention — the first rule in the file becomes the default target, and its input: block declares what Snakemake should build when invoked without arguments. Here it asks for one QC figure per subject, written as expand(rules.qc.output.png, subject=SUBJECTS)rather than retyping the literal path. That’s the same single-source-of-truth pattern used elsewhere in the workflow — the entry point and the QC rule cannot drift apart.

Because QC depends on FAST and FAST depends on BET, Snakemake traces the DAG backwards from those PNGs and runs every upstream rule whose output isn’t already on disk. You never have to spell the upstream rules out; asking for the leaves is enough.

snakefile = '''include: "rules/common.smk"
include: "rules/bet.smk"
include: "rules/fast.smk"
include: "rules/qc.smk"


rule all:
    input:
        expand(rules.qc.output.png, subject=SUBJECTS),
'''
(workdir / 'workflow' / 'Snakefile').write_text(snakefile)
print(snakefile)

include: "rules/common.smk"
include: "rules/bet.smk"
include: "rules/fast.smk"
include: "rules/qc.smk"


rule all:
    input:
        expand(rules.qc.output.png, subject=SUBJECTS),

5. Lint the workflow#

Snakemake ships with a built-in linter, invoked via snakemake --lint, that scans the workflow for common best-practice violations: rules missing a log: directive, hardcoded values inside shell: commands that should be lifted to params:, missing reproducibility metadata such as conda:, container:, or envmodules:, and a handful of similar patterns. The authors recommend running it before publishing any workflow. We invoke it through subprocess.run(…) because the notebook isn’t a shell.

lint = subprocess.run(
    ['snakemake', '-s', 'workflow/Snakefile', '--lint'],
    cwd=workdir, capture_output=True, text=True,
)
print(lint.stdout)
if lint.stderr:
    print('--- stderr ---')
    print(lint.stderr)

--- stderr ---
Lints for rule bet (line 1, /home/jovyan/workspace/books/examples/workflows/snakemake_demo/workflow/rules/bet.smk):
    * Additionally specify a conda environment or container for each rule, environment modules are not enough:
      While environment modules allow to document and deploy the required
      software on a certain platform, they lock your workflow in there,
      disabling easy reproducibility on other machines that don't have exactly
      the same environment modules. Hence env modules (which might be beneficial
      in certain cluster environments), should always be complemented with
      equivalent conda environments.
      Also see:
      https://snakemake.readthedocs.io/en/latest/snakefiles/deployment.html#integrated-package-management
      https://snakemake.readthedocs.io/en/latest/snakefiles/deployment.html#running-jobs-in-containers

Lints for rule fast (line 1, /home/jovyan/workspace/books/examples/workflows/snakemake_demo/workflow/rules/fast.smk):
    * Additionally specify a conda environment or container for each rule, environment modules are not enough:
      While environment modules allow to document and deploy the required
      software on a certain platform, they lock your workflow in there,
      disabling easy reproducibility on other machines that don't have exactly
      the same environment modules. Hence env modules (which might be beneficial
      in certain cluster environments), should always be complemented with
      equivalent conda environments.
      Also see:
      https://snakemake.readthedocs.io/en/latest/snakefiles/deployment.html#integrated-package-management
      https://snakemake.readthedocs.io/en/latest/snakefiles/deployment.html#running-jobs-in-containers

Lints for rule qc (line 1, /home/jovyan/workspace/books/examples/workflows/snakemake_demo/workflow/rules/qc.smk):
    * Specify a conda environment or container for each rule.:
      This way, the used software for each specific step is documented, and the
      workflow can be executed on any machine without prerequisites.
      Also see:
      https://snakemake.readthedocs.io/en/latest/snakefiles/deployment.html#integrated-package-management
      https://snakemake.readthedocs.io/en/latest/snakefiles/deployment.html#running-jobs-in-containers

Our workflow already addresses several common lint findings up front:

  • log: on every rule — per-job stdout/stderr lands in logs/<rule>/sub-<subject>.log rather than getting interleaved.

  • params: prefix derived from output.img via a lambda in fast.smk, so the lint check “Param prefix is hardcoded” doesn’t fire.

  • No + path composition — we use f-strings and rules.<x>.output everywhere.

One family of warnings remains by design: “Specify a conda environment or container… env modules are not enough” on the two rules that load FSL (bet, fast), plus the plain “Specify a conda environment or container” on the qc rule (which uses the conda-env Python via the script: directive). envmodules: ties the workflow to systems with those exact Lmod modules (i.e. Neurodesk). We deliberately keep envmodules: alone since this notebook is specifically about Snakemake on Neurodesk. Adding a conda: env file or container: image alongside makes the workflow portable to laptops, CI, or non-HPC clouds; both choices are valid — see the Snakemake deployment docs (https://snakemake.readthedocs.io/en/latest/snakefiles/deployment.html) for how to wire them in.

6. Visualise the workflow#

Snakemake can render two complementary diagrams:

  • --rulegraph — one node per rule, regardless of how many subjects you process. The compact “shape” of the pipeline.

  • --dag — one node per job (rule × wildcard combination). The fully unrolled execution plan.

Both flags emit Graphviz DOT format on stdout, so we pipe the output through dot -Tsvg (from the graphviz package) to render as SVG. The rulegraph and DAG below show the same workflow at those two levels of detail.

Rulegraph (one node per rule):

rg = subprocess.run(
    ['snakemake', '-s', 'workflow/Snakefile', '--rulegraph'],
    cwd=workdir, capture_output=True, text=True,
)
if rg.returncode != 0:
    print('--- stderr ---'); print(rg.stderr)
    raise RuntimeError('snakemake --rulegraph failed')

rg_svg = subprocess.run(
    ['dot', '-Tsvg'], input=rg.stdout, capture_output=True, text=True,
)

if rg_svg.returncode != 0:
    print('--- dot stderr ---')
    print(rg_svg.stderr)
    raise RuntimeError('dot failed; is graphviz installed?')

display(SVG(rg_svg.stdout))
../../_images/5875b6651d1cab164fcb08e2513d06331e83b0c0e3a4f3297f7c37b36c941084.svg

DAG (one node per rule × subject job — Snakemake will execute 9 jobs total: 3 subjects × 3 rules):

# Note: in Snakemake 9.x `--dag` takes an optional *format* argument (dot/mermaid-js),
# so we omit any target — Snakemake defaults to the first rule (`all`).
dag_result = subprocess.run(
    ['snakemake', '-s', 'workflow/Snakefile', '--dag'],
    cwd=workdir, capture_output=True, text=True,
)
if dag_result.returncode != 0:
    print('--- stderr ---')
    print(dag_result.stderr)
    raise RuntimeError('snakemake --dag failed; see stderr above')

dag_svg = subprocess.run(
    ['dot', '-Tsvg'],
    input=dag_result.stdout, capture_output=True, text=True,
)
if dag_svg.returncode != 0:
    print('--- dot stderr ---')
    print(dag_svg.stderr)
    raise RuntimeError('dot failed; is graphviz installed?')

display(SVG(dag_svg.stdout))
../../_images/10d2baf0f8658cb10867aa1f1c130ef8962da46b0c6e7f4e45c3654cabe385ae.svg

7. Dry-run the pipeline#

Before committing real compute, snakemake -n (or --dry-run) walks the DAG and prints which jobs would be executed and why (missing output, updated input, changed input set, etc.) — without running anything. That makes it the fastest way to catch wildcard or path mismatches, unintended re-runs, or the wrong target list before they cost real compute. --cores 4 is still required because Snakemake refuses to plan without a resource budget; nothing is actually scheduled.

result = subprocess.run(
    ['snakemake', '-s', 'workflow/Snakefile', '-n', '--cores', '4'],
    cwd=workdir, capture_output=True, text=True,
)
print(result.stdout)
if result.returncode != 0:
    print('--- stderr ---')
    print(result.stderr)

SNAKEMAKE
=========
  Date: 2026-06-12 02:46:58
  Workflow ID: bf61ff2e-afde-4a59-a6fb-2d4e1e6d0fe7
  Platform: Linux-6.8.0-111-generic-x86_64-with-glibc2.39
  Host: 3269c0427c30
  User: jovyan
  Snakemake version: 9.23.0
  Python version: 3.13.13 | packaged by conda-forge | (main, Apr  8 2026, 02:00:33) [GCC 14.3.0]
  Command: /opt/conda/bin/snakemake -s workflow/Snakefile -n --cores 4
  Snakefile: /home/jovyan/workspace/books/examples/workflows/snakemake_demo/workflow/Snakefile
  Base directory: /home/jovyan/workspace/books/examples/workflows/snakemake_demo/workflow
  Run directory: /home/jovyan/workspace/books/examples/workflows/snakemake_demo
  Working directory: /home/jovyan/workspace/books/examples/workflows/snakemake_demo
  Config file(s): []
  Config MD5: 99914b932bd37a50b983c5e7c90ae93b

Building DAG of jobs...
Job stats:
job      count
-----  -------
bet          3
fast         3
qc           3
all          1
total       10


[Fri Jun 12 02:46:59 2026]
rule bet:
    input: ds000114/sub-02/ses-test/anat/sub-02_ses-test_T1w.nii.gz
    output: results/sub-02/anat/sub-02_desc-brain_T1w.nii.gz
    log: logs/bet/sub-02.log
    jobid: 5
    reason: Missing output files: results/sub-02/anat/sub-02_desc-brain_T1w.nii.gz
    wildcards: subject=02
    resources: tmpdir=/tmp, mem_mb=2000, mem=2 GB, mem_mib=1908
[Fri Jun 12 02:46:59 2026]
rule bet:
    input: ds000114/sub-01/ses-test/anat/sub-01_ses-test_T1w.nii.gz
    output: results/sub-01/anat/sub-01_desc-brain_T1w.nii.gz
    log: logs/bet/sub-01.log
    jobid: 2
    reason: Missing output files: results/sub-01/anat/sub-01_desc-brain_T1w.nii.gz
    wildcards: subject=01
    resources: tmpdir=/tmp, mem_mb=2000, mem=2 GB, mem_mib=1908
[Fri Jun 12 02:46:59 2026]
rule bet:
    input: ds000114/sub-03/ses-test/anat/sub-03_ses-test_T1w.nii.gz
    output: results/sub-03/anat/sub-03_desc-brain_T1w.nii.gz
    log: logs/bet/sub-03.log
    jobid: 8
    reason: Missing output files: results/sub-03/anat/sub-03_desc-brain_T1w.nii.gz
    wildcards: subject=03
    resources: tmpdir=/tmp, mem_mb=2000, mem=2 GB, mem_mib=1908
[Fri Jun 12 02:46:59 2026]
rule fast:
    input: results/sub-01/anat/sub-01_desc-brain_T1w.nii.gz
    output: results/sub-01/anat/sub-01_dseg.nii.gz
    log: logs/fast/sub-01.log
    jobid: 3
    reason: Missing output files: results/sub-01/anat/sub-01_dseg.nii.gz; Input files updated by another job: results/sub-01/anat/sub-01_desc-brain_T1w.nii.gz
    wildcards: subject=01
    threads: 2
    resources: tmpdir=/tmp, mem_mb=2000, mem=2 GB, mem_mib=1908
[Fri Jun 12 02:46:59 2026]
rule fast:
    input: results/sub-02/anat/sub-02_desc-brain_T1w.nii.gz
    output: results/sub-02/anat/sub-02_dseg.nii.gz
    log: logs/fast/sub-02.log
    jobid: 6
    reason: Missing output files: results/sub-02/anat/sub-02_dseg.nii.gz; Input files updated by another job: results/sub-02/anat/sub-02_desc-brain_T1w.nii.gz
    wildcards: subject=02
    threads: 2
    resources: tmpdir=/tmp, mem_mb=2000, mem=2 GB, mem_mib=1908
[Fri Jun 12 02:46:59 2026]
rule fast:
    input: results/sub-03/anat/sub-03_desc-brain_T1w.nii.gz
    output: results/sub-03/anat/sub-03_dseg.nii.gz
    log: logs/fast/sub-03.log
    jobid: 9
    reason: Missing output files: results/sub-03/anat/sub-03_dseg.nii.gz; Input files updated by another job: results/sub-03/anat/sub-03_desc-brain_T1w.nii.gz
    wildcards: subject=03
    threads: 2
    resources: tmpdir=/tmp, mem_mb=2000, mem=2 GB, mem_mib=1908
[Fri Jun 12 02:46:59 2026]
rule qc:
    input: ds000114/sub-02/ses-test/anat/sub-02_ses-test_T1w.nii.gz, results/sub-02/anat/sub-02_desc-brain_T1w.nii.gz, results/sub-02/anat/sub-02_dseg.nii.gz
    output: results/sub-02/figures/sub-02_desc-qc.png
    log: logs/qc/sub-02.log
    jobid: 4
    reason: Missing output files: results/sub-02/figures/sub-02_desc-qc.png; Input files updated by another job: results/sub-02/anat/sub-02_desc-brain_T1w.nii.gz, results/sub-02/anat/sub-02_dseg.nii.gz
    wildcards: subject=02
    resources: tmpdir=/tmp, mem_mb=2000, mem=2 GB, mem_mib=1908
[Fri Jun 12 02:46:59 2026]
rule qc:
    input: ds000114/sub-01/ses-test/anat/sub-01_ses-test_T1w.nii.gz, results/sub-01/anat/sub-01_desc-brain_T1w.nii.gz, results/sub-01/anat/sub-01_dseg.nii.gz
    output: results/sub-01/figures/sub-01_desc-qc.png
    log: logs/qc/sub-01.log
    jobid: 1
    reason: Missing output files: results/sub-01/figures/sub-01_desc-qc.png; Input files updated by another job: results/sub-01/anat/sub-01_desc-brain_T1w.nii.gz, results/sub-01/anat/sub-01_dseg.nii.gz
    wildcards: subject=01
    resources: tmpdir=/tmp, mem_mb=2000, mem=2 GB, mem_mib=1908
[Fri Jun 12 02:46:59 2026]
rule qc:
    input: ds000114/sub-03/ses-test/anat/sub-03_ses-test_T1w.nii.gz, results/sub-03/anat/sub-03_desc-brain_T1w.nii.gz, results/sub-03/anat/sub-03_dseg.nii.gz
    output: results/sub-03/figures/sub-03_desc-qc.png
    log: logs/qc/sub-03.log
    jobid: 7
    reason: Missing output files: results/sub-03/figures/sub-03_desc-qc.png; Input files updated by another job: results/sub-03/anat/sub-03_dseg.nii.gz, results/sub-03/anat/sub-03_desc-brain_T1w.nii.gz
    wildcards: subject=03
    resources: tmpdir=/tmp, mem_mb=2000, mem=2 GB, mem_mib=1908
[Fri Jun 12 02:46:59 2026]
rule all:
    input: results/sub-01/figures/sub-01_desc-qc.png, results/sub-02/figures/sub-02_desc-qc.png, results/sub-03/figures/sub-03_desc-qc.png
    jobid: 0
    reason: Input files updated by another job: results/sub-03/figures/sub-03_desc-qc.png, results/sub-02/figures/sub-02_desc-qc.png, results/sub-01/figures/sub-01_desc-qc.png
    resources: tmpdir=/tmp
Job stats:
job      count
-----  -------
bet          3
fast         3
qc           3
all          1
total       10

Reasons:
    (check individual jobs above for details)
    input files updated by another job:
        all, fast, qc
    output files have to be generated:
        bet, fast, qc
This was a dry-run (flag -n). The order of jobs does not reflect the order of execution.

8. Run the pipeline#

Running with --cores 4 lets Snakemake run up to four independent jobs in parallel on this machine — for this DAG that means BET on subject 01, 02, 03 all kicking off together. Expect a few minutes total: bet is fast (~10 s/subject), fast is the slower step (~2–3 min/subject).

We also pass --keep-going (-k) so a failure on one subject doesn’t block the others. By default Snakemake stops on the first error — fine for debugging, but in a multi-subject run you usually want every independent branch of the DAG to make as much progress as possible before you investigate.

Important

Neurodesk-specific subshell tweak. Snakemake’s --use-envmodules spawns each rule in a non-interactive bash subshell to run module purge && module load <X> && <your command>. On Neurodesk, module is a bash function (not a binary on PATH) defined by Lmod’s /etc/profile.d/lmod.sh — and non-interactive bash subshells don’t source /etc/profile.d/* by default, so module is undefined and every rule fails.

Fix: set BASH_ENV=/etc/profile.d/lmod.sh in the environment we pass to Snakemake. Bash sources whatever BASH_ENV points to before running its command, so each rule’s subshell will have module available. Without this, the rules fail with module: command not found.

env = {**os.environ, 'BASH_ENV': '/etc/profile.d/lmod.sh'}

result = subprocess.run(
    ['snakemake', '-s', 'workflow/Snakefile', '--use-envmodules', '--cores', '4', '--keep-going'],
    cwd=workdir, env=env, capture_output=True, text=True,
)

print('return code:', result.returncode)
print('--- stderr (tail) ---')
print('\n'.join(result.stderr.splitlines()[-25:]))
if result.returncode != 0:
  print('--- stdout ---')
  print(result.stdout)

return code: 0
--- stderr (tail) ---
[Fri Jun 12 02:51:58 2026]
localrule qc:
    input: ds000114/sub-03/ses-test/anat/sub-03_ses-test_T1w.nii.gz, results/sub-03/anat/sub-03_desc-brain_T1w.nii.gz, results/sub-03/anat/sub-03_dseg.nii.gz
    output: results/sub-03/figures/sub-03_desc-qc.png
    log: logs/qc/sub-03.log
    jobid: 7
    reason: Missing output files: results/sub-03/figures/sub-03_desc-qc.png; Input files updated by another job: results/sub-03/anat/sub-03_desc-brain_T1w.nii.gz, results/sub-03/anat/sub-03_dseg.nii.gz
    wildcards: subject=03
    resources: tmpdir=/tmp, mem_mb=2000, mem=2 GB, mem_mib=1908
[Fri Jun 12 02:52:12 2026]
Finished jobid: 7 (Rule: qc)
9 of 10 steps (90%) done
Select jobs to execute...
Execute 1 jobs...

[Fri Jun 12 02:52:12 2026]
localrule all:
    input: results/sub-01/figures/sub-01_desc-qc.png, results/sub-02/figures/sub-02_desc-qc.png, results/sub-03/figures/sub-03_desc-qc.png
    jobid: 0
    reason: Input files updated by another job: results/sub-01/figures/sub-01_desc-qc.png, results/sub-02/figures/sub-02_desc-qc.png, results/sub-03/figures/sub-03_desc-qc.png
    resources: tmpdir=/tmp
[Fri Jun 12 02:52:12 2026]
Finished jobid: 0 (Rule: all)
10 of 10 steps (100%) done
Complete log(s): /home/jovyan/workspace/books/examples/workflows/snakemake_demo/.snakemake/log/2026-06-12T024700.970950.snakemake.log

Tip

Resumability. If you delete or modify any output file (e.g. results/sub-01/anat/sub-01_dseg.nii.gz) and re-run the cell above, Snakemake detects the missing/changed file and only re-runs the rules that depend on it. This is a general property of caching workflow engines — Nipype, Pydra, and Nextflow all do the same thing under the hood, just with different mechanisms (input hashes for Nipype/Pydra, hash-keyed work/ directories for Nextflow, file mtime for Snakemake by default). What’s distinctive about Snakemake’s version is its transparency of snakemake -n which tells you exactly which jobs would re-run and why (reason: Missing output files: ..., reason: Input files updated by another job: ...). That makes it easy to predict exactly which rules will re-fire before committing a long run.

9. Inspect outputs#

Snakemake placed each subject’s QC PNG under results/sub-XX/figures/. We display each inline so we can eyeball whether BET + FAST worked as expected for each subject.

for png in sorted((workdir / 'results').glob('sub-*/figures/*.png')):
    print(png.relative_to(workdir))
    display(Image(filename=str(png)))

results/sub-01/figures/sub-01_desc-qc.png
results/sub-02/figures/sub-02_desc-qc.png
results/sub-03/figures/sub-03_desc-qc.png
../../_images/792b69103f45621fb5781eef34412aa8eef337fc718b2128d8c0cb6d2bc0f16c.png ../../_images/10f554bd37c763cde18bcab58dab4fe5311622f7eeb39543cc09065bd00b5744.png ../../_images/1e125873b04c7651525ecd78a1b1bd3286c1f117ae150205c041a687a880490e.png

Note

Reading the third panel. FAST assigns each brain voxel a discrete tissue class — typically rendered in three colours for CSF, gray matter, and white matter. A successful segmentation traces the cortical ribbon (a thin gray-matter band following gyri/sulci), with white matter as the bulkier interior structure and CSF marking the ventricles and the sulci between gyri. Mislabeled skull or empty patches inside the brain are signs that something went wrong upstream — most commonly a too-aggressive or too-conservative BET that left bone or removed cortex.

10. Scaling beyond a notebook#

Three natural next steps once your workflow is correct on a few subjects:

  1. More subjects on the same machine — extend SUBJECTS in common.smk and bump --cores. Snakemake will parallelise up to that limit automatically.

  2. Cluster execution via SLURM — the snakemake-executor-plugin-slurm lets you submit each rule as its own sbatch job (snakemake --executor slurm ...). Combined with the per-rule envmodules: and resources: directives this workflow already declares, every job loads exactly the modules it needs and asks SLURM for the right memory and threads on its assigned node — the same workflow runs locally and on the cluster.

  3. Containerise per rule: If you eventually need to run this workflow off Neurodesk (laptops, CI, non-HPC clouds), see the Snakemake deployment docs for adding conda: or container: directives alongside envmodules:. Both can coexist on the same rule.

For an alternative scaling pattern using parameterised notebooks rather than a Snakefile, see Papermill SLURM Job Submission.

Dependencies in Jupyter/Python#

  • Using the package watermark to document system environment and software versions used in this notebook, alongside the Neurodesktop version extracted from the JUPYTER_IMAGE or NEURODESKTOP_VERSION environment variables.

%load_ext watermark

%watermark
%watermark --iversions

neurodesktop_version = (
    os.environ.get('JUPYTER_IMAGE', '').split(':')[-1] or
    os.environ.get('NEURODESKTOP_VERSION', 'unknown')
)

print(f"Neurodesktop version: {neurodesktop_version}")

Last updated: 2026-06-12T02:52:14.138082+00:00

Python implementation: CPython
Python version       : 3.13.13
IPython version      : 9.14.0

Compiler    : GCC 14.3.0
OS          : Linux
Release     : 6.8.0-111-generic
Machine     : x86_64
Processor   : x86_64
CPU cores   : 16
Architecture: 64bit

IPython   : 9.14.0
bids      : 0.22.0
matplotlib: 3.10.9
nibabel   : 5.4.2
nilearn   : 0.13.1
numpy     : 2.4.6

Neurodesktop version: py-stack
