Purpose#

MRI phase data are inherently wrapped — phase values outside the range \([-\pi, \pi]\) “wrap around”, creating artificial discontinuities. Phase unwrapping recovers the true, continuous phase signal, which is essential for downstream analyses such as quantitative susceptibility mapping (QSM) and field mapping.

This tutorial demonstrates how to:

Download a demo dataset with magnitude and phase images
Prepare the data for unwrapping
Run ROMEO (Robust phase unwrapping) to recover continuous phase

Learning Objectives

By the end of this tutorial you will be able to:

Explain why MRI phase data need unwrapping
Use ROMEO for robust, magnitude-guided phase unwrapping
Interpret the unwrapped phase output

Citation and Resources#

Tools used in this workflow#

ROMEO: Dymerska, B., Eckstein, K., et al. (2021). Phase unwrapping with a rapid opensource minimum spanning tree algorithm (ROMEO). Magnetic Resonance in Medicine, 85(4), 2294–2308. https://doi.org/10.1002/mrm.28563

Educational resources#

Prerequisites#

Before you begin

Make sure you have access to a running Neurodesk instance. See Getting Set Up with Neurodesk for instructions.

A running Neurodesk environment
Familiarity with basic terminal commands
No additional installation required — ROMEO is pre-installed in Neurodesk

Load software tools and download demo data#

We use the same demo dataset as the SWI tutorial. Open a terminal in Neurodesktop and run the following commands to download the data, then copy and prepare the magnitude and phase files for ROMEO.

Tip

To paste in Neurodesktop, best to use the right click on your mouse!

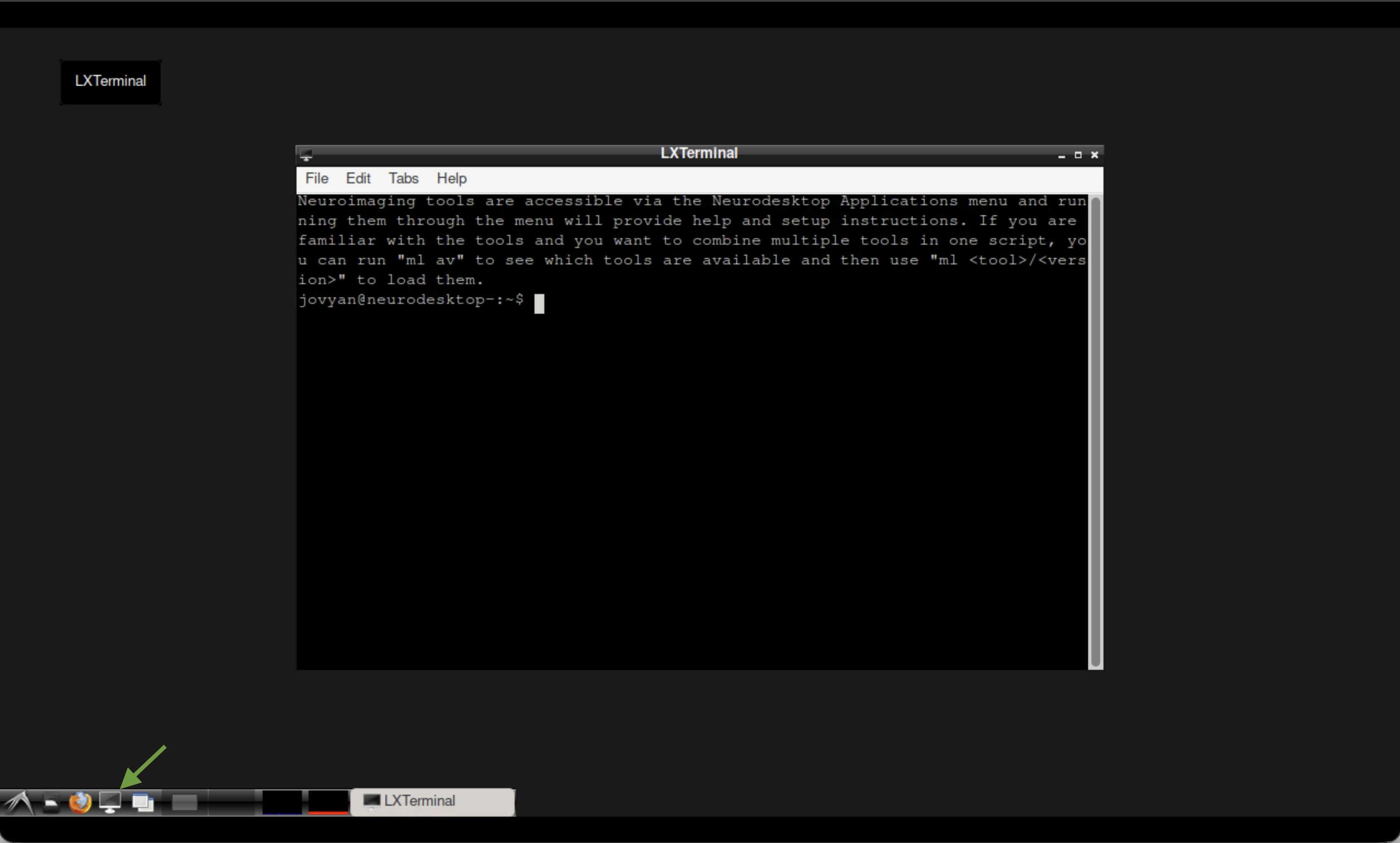

The terminal in Neurodesktop.

pip install osfclient
cd ~/neurodesktop-storage/
osf -p ru43c fetch -f 01_bids.zip ~/neurodesktop-storage/swi-demo/01_bids.zip

unzip -o ~/neurodesktop-storage/swi-demo/01_bids.zip -d ~/neurodesktop-storage/swi-demo/

Now copy the magnitude and phase files into a dedicated working directory:

mkdir -p ~/neurodesktop-storage/romeo-demo/

cp ~/neurodesktop-storage/swi-demo/01_bids/sub-170705134431std1312211075243167001/ses-1/anat/sub-170705134431std1312211075243167001_ses-1_run-1_part-phase_T2starw.nii \
   ~/neurodesktop-storage/romeo-demo/phase.nii

cp ~/neurodesktop-storage/swi-demo/01_bids/sub-170705134431std1312211075243167001/ses-1/anat/sub-170705134431std1312211075243167001_ses-1_run-1_part-mag_T2starw.nii \
   ~/neurodesktop-storage/romeo-demo/mag.nii

Note

The files are already uncompressed .nii format, which is what ROMEO expects. No need to gunzip.

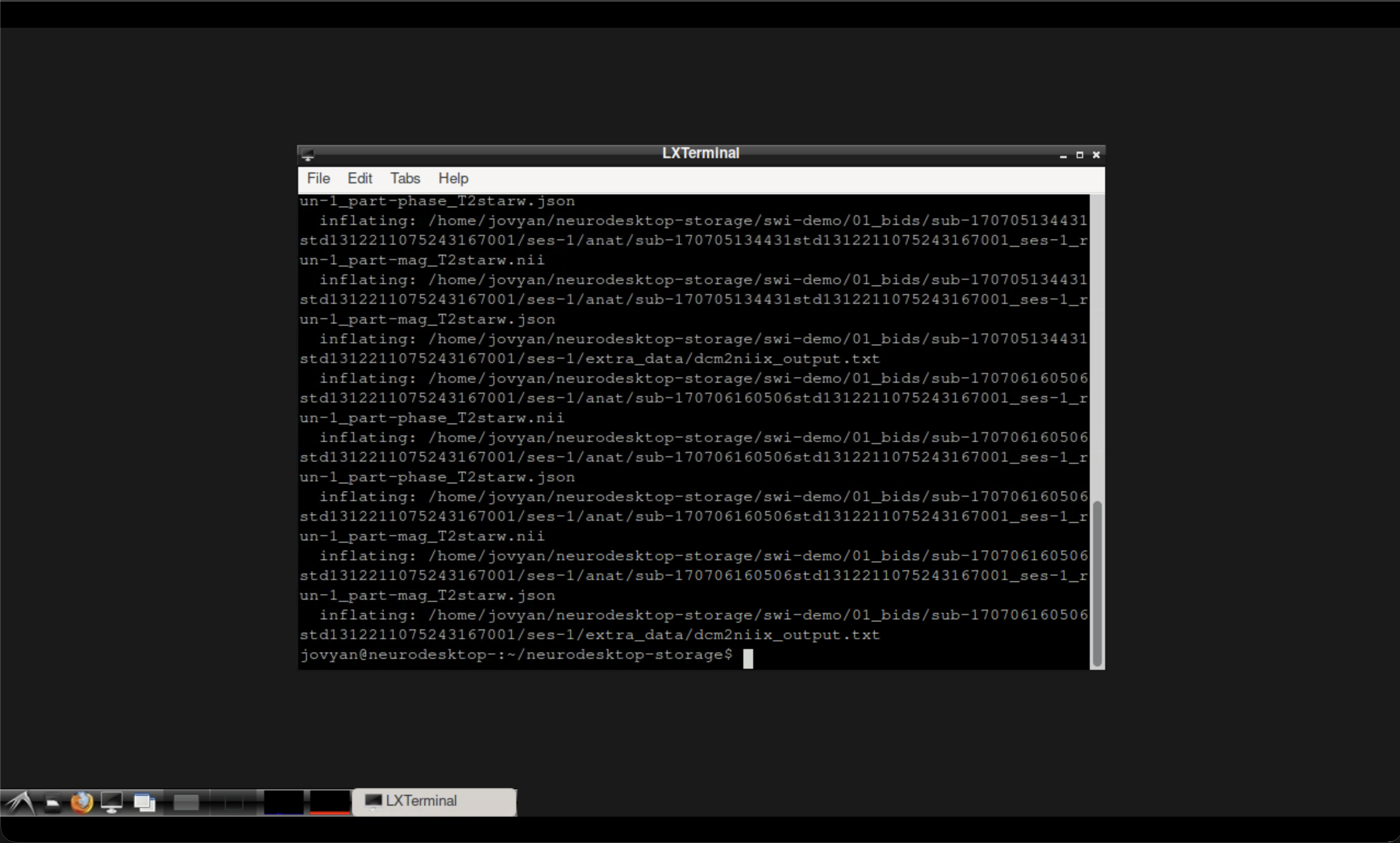

Terminal output after downloading and preparing the data.

Run ROMEO for phase unwrapping#

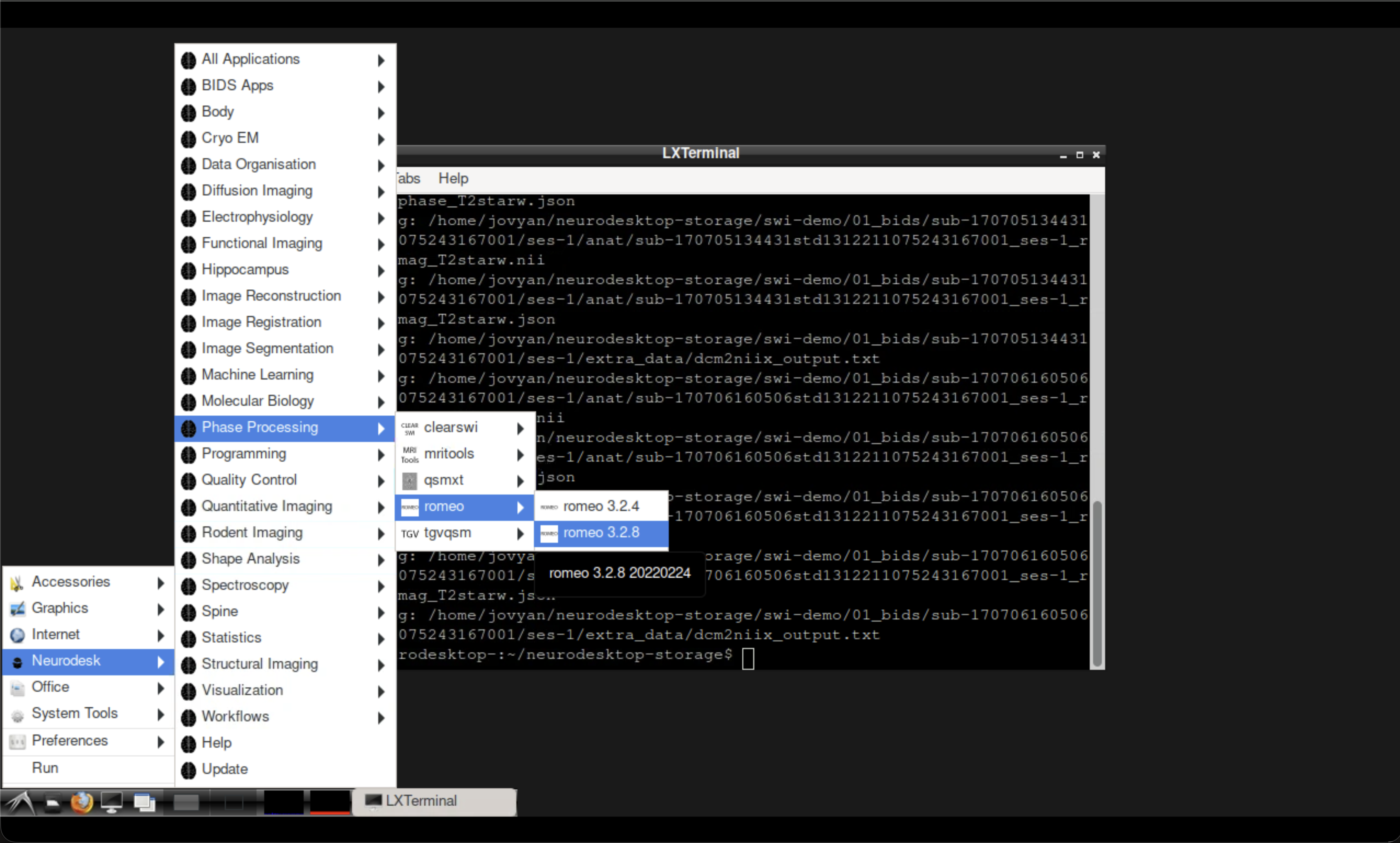

../../_images/open-romeo.png — Fig. 2 Opening ROMEO from the Neurodesk application menu.#

Open the ROMEO tool from the Neurodesk application menu, then run the following command in the ROMEO container terminal:

Note

The -k nomask flag disables brain masking so all voxels are unwrapped. For most applications you would want to use a brain mask — see the ROMEO documentation for options.

romeo \
  -p ~/neurodesktop-storage/romeo-demo/phase.nii \
  -m ~/neurodesktop-storage/romeo-demo/mag.nii \
  -k nomask \
  -o ~/neurodesktop-storage/romeo-demo/

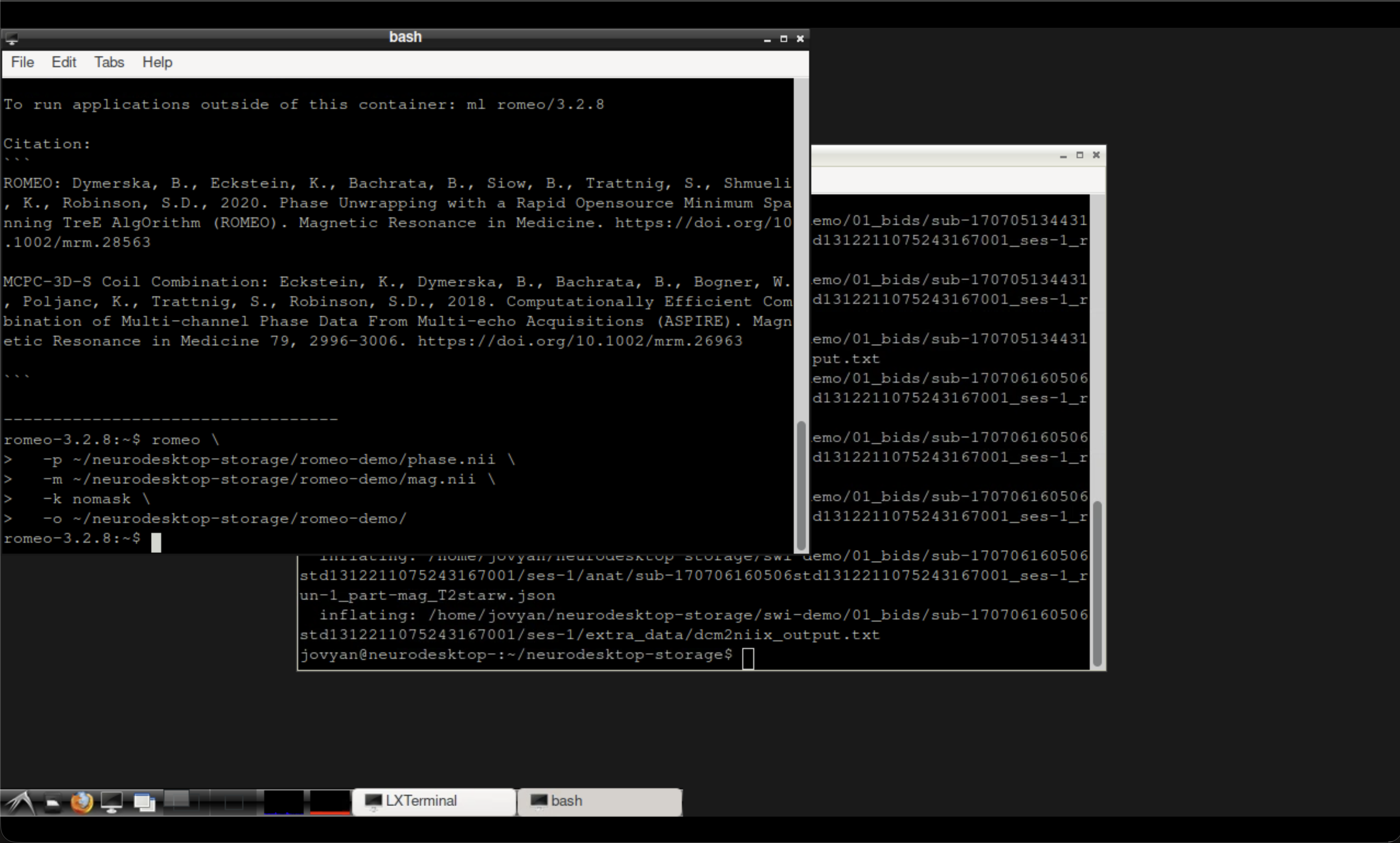

Terminal output after running ROMEO.

Inspect the results#

The unwrapped phase image is saved in the output directory. You can verify it was created in the LXTerminal:

ls ~/neurodesktop-storage/romeo-demo/

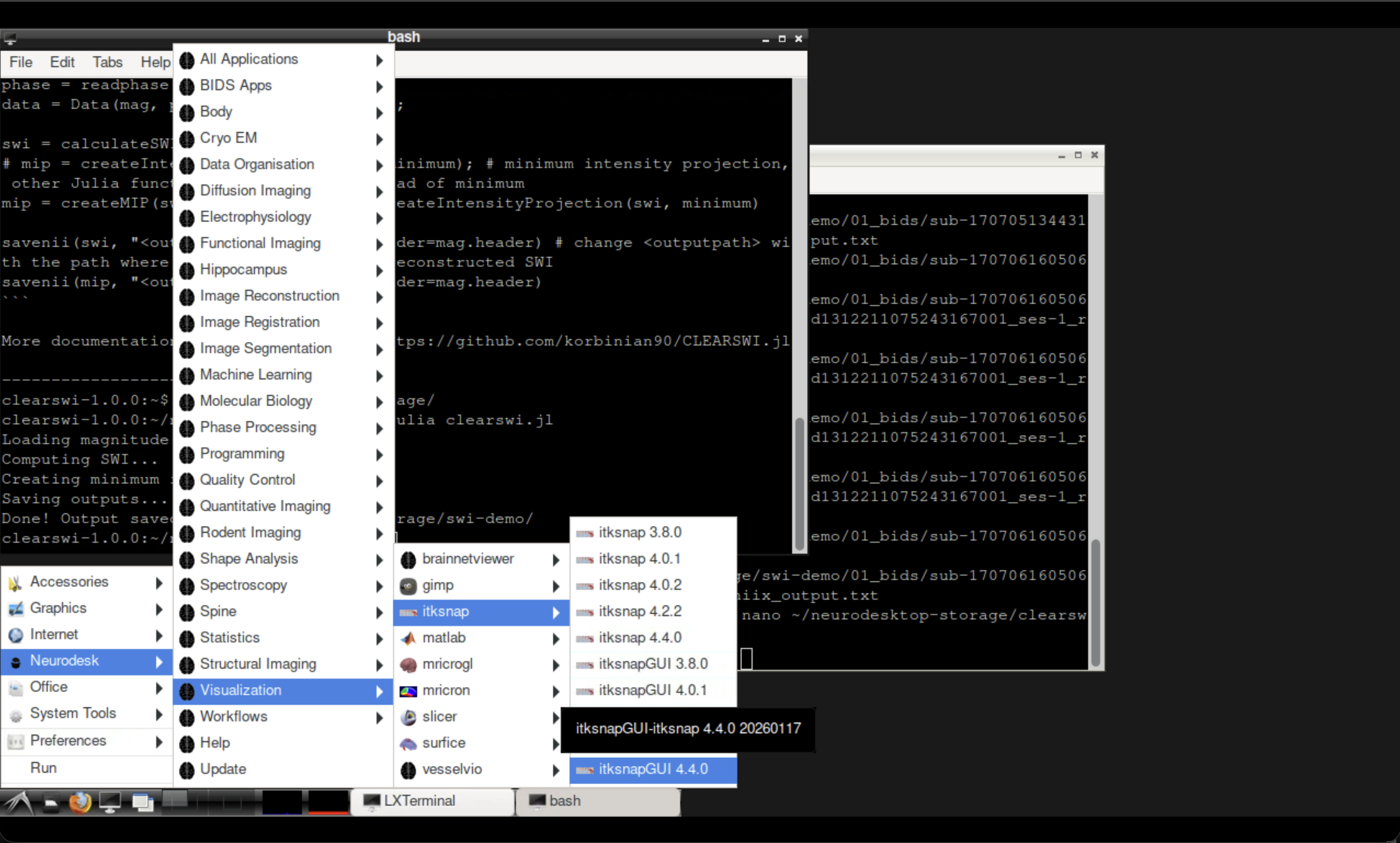

../../_images/open-itksnap.png — Fig. 3 Opening ITK-SNAP from the Neurodesk Visualisation menu.#

Open ITK-SNAP from the Neurodesk Visualisation menu and load the original wrapped phase (phase.nii) alongside the unwrapped output to compare.

Tip

Look for the removal of the sharp \(2\pi\) jumps that were visible in the wrapped phase. The unwrapped phase should show smooth, continuous variation across the brain.

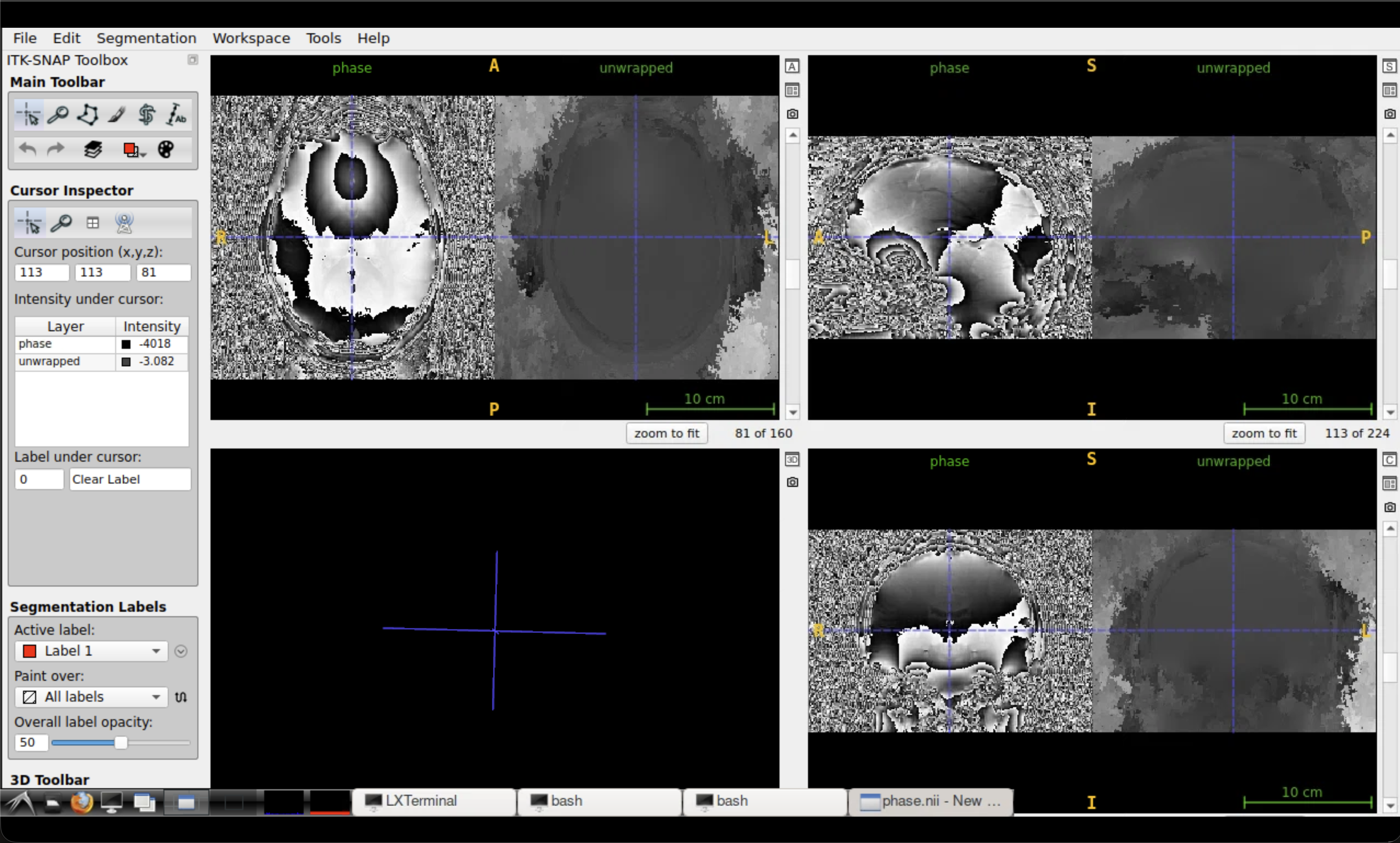

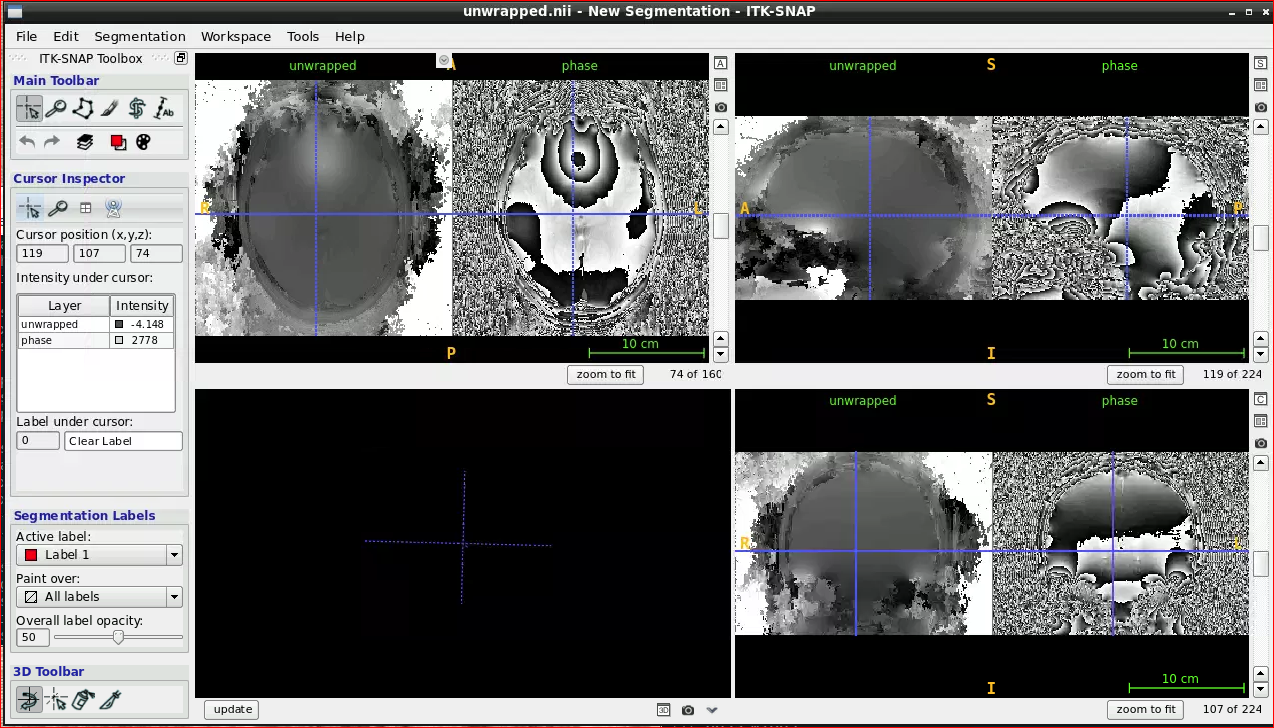

ROMEO unwrapping result — wrapped vs unwrapped phase Comparison of wrapped (left) and unwrapped (right) phase in ITK-SNAP.

Summary#

In this tutorial you:

Downloaded and prepared magnitude and phase MRI data
Used ROMEO to perform robust phase unwrapping
Compared the wrapped and unwrapped phase images
