FreeSurfer#
#
Author: Steffen Bollmann
Date: 17 Oct 2024
#
License:
Note: If this notebook uses neuroimaging tools from Neurocontainers, those tools retain their original licenses. Please see Neurodesk citation guidelines for details.
Citation and Resources:#
Tools included in this workflow#
FreeSurfer:
Fischl B. (2012). FreeSurfer. NeuroImage, 62(2), 774–781. https://doi.org/10.1016/j.neuroimage.2012.01.021
Dataset#
MP2RAGE T1-weighted average 7T model (human brain model)
Bollmann, Steffen, Andrew Janke, Lars Marstaller, David Reutens, Kieran O’Brien, and Markus Barth. “MP2RAGE T1-weighted average 7T model” January 1, 2017. doi:10.14264/uql.2017.266
Load FreeSurfer#
# we can use module to load freesurfer in a specific version
import module
await module.load('freesurfer/8.1.0')
await module.list()
['freesurfer/8.1.0']
# Request a freesurfer license and store it in your homedirectory. This is just an exampe - please replace with your license id:
!echo "Steffen.Bollmann@cai.uq.edu.au" > ~/.license
!echo "21029" >> ~/.license
!echo "*Cqyn12sqTCxo" >> ~/.license
!echo "FSxgcvGkNR59Y" >> ~/.license
!recon-all
USAGE: recon-all
Required Arguments:
-subjid <subjid>
-<process directive>
Fully-Automated Directive:
-all : performs all stages of cortical reconstruction
-autorecon-all : same as -all
Manual-Intervention Workflow Directives:
-autorecon1 : process stages 1-5 (see below)
-autorecon2 : process stages 6-23
after autorecon2, check white surfaces:
a. if wm edit was required, then run -autorecon2-wm
b. if control points added, then run -autorecon2-cp
c. proceed to run -autorecon3
-autorecon2-cp : process stages 12-23 (uses -f w/ mri_normalize, -keep w/ mri_seg)
-autorecon2-wm : process stages 15-23
-autorecon2-inflate1 : 6-18
-autorecon2-perhemi : tess, sm1, inf1, q, fix, sm2, inf2, finalsurf, ribbon
-autorecon3 : process stages 24-34
if edits made to correct pial, then run -autorecon-pial
-hemi ?h : just do lh or rh (default is to do both)
Autorecon Processing Stages (see -autorecon# flags above):
1. Motion Correction and Conform
2. NU (Non-Uniform intensity normalization)
3. Talairach transform computation
4. Intensity Normalization 1
5. Skull Strip
6. EM Register (linear volumetric registration)
7. CA Intensity Normalization
8. CA Non-linear Volumetric Registration
9. Remove neck
10. EM Register, with skull
11. CA Label (Aseg: Volumetric Labeling) and Statistics
12. Intensity Normalization 2 (start here for control points)
13. White matter segmentation
14. Edit WM With ASeg
15. Fill (start here for wm edits)
16. Tessellation (begins per-hemisphere operations)
17. Smooth1
18. Inflate1
19. QSphere
20. Automatic Topology Fixer
21. White Surfs (start here for brain edits for pial surf)
22. Smooth2
23. Inflate2
24. Spherical Mapping
25. Spherical Registration
26. Spherical Registration, Contralater hemisphere
27. Map average curvature to subject
28. Cortical Parcellation (Labeling)
29. Cortical Parcellation Statistics
30. Pial Surfs
31. WM/GM Contrast
32. Cortical Ribbon Mask
33. Cortical Parcellation mapped to ASeg
34 Brodmann and exvio EC labels
Step-wise Directives
See -help
Expert Preferences
-pons-crs C R S : col, row, slice of seed point for pons, used in fill
-cc-crs C R S : col, row, slice of seed point for corpus callosum, used in fill
-lh-crs C R S : col, row, slice of seed point for left hemisphere, used in fill
-rh-crs C R S : col, row, slice of seed point for right hemisphere, used in fill
-nofill : do not use the automatic subcort seg to fill
-watershed cmd : control skull stripping/watershed program
-xmask file : custom external brain mask to replace automated skullstripping
-wsless : decrease watershed threshold (leaves less skull, but can strip more brain)
-wsmore : increase watershed threshold (leaves more skull, but can strip less brain)
-wsatlas : use atlas when skull stripping
-no-wsatlas : do not use atlas when skull stripping
-no-wsgcaatlas : do not use GCA atlas when skull stripping
-wsthresh pct : explicity set watershed threshold
-wsseed C R S : identify an index (C, R, S) point in the skull
-norm3diters niters : number of 3d iterations for mri_normalize
-normmaxgrad maxgrad : max grad (-g) for mri_normalize. Default is 1.
-norm1-b N : in the _first_ usage of mri_normalize, use control
point with intensity N below target (default=10.0)
-norm2-b N : in the _second_ usage of mri_normalize, use control
point with intensity N below target (default=10.0)
-norm1-n N : in the _first_ usage of mri_normalize, do N number
of iterations
-norm2-n N : in the _second_ usage of mri_normalize, do N number
of iterations
-cm : conform volumes to the min voxel size
-no-fix-with-ga : do not use genetic algorithm when fixing topology
-fix-diag-only : topology fixer runs until ?h.defect_labels files
are created, then stops
-seg-wlo wlo : set wlo value for mri_segment and mris_make_surfaces
-seg-ghi ghi : set ghi value for mri_segment and mris_make_surfaces
-nothicken : pass '-thicken 0' to mri_segment
-no-ca-align-after : turn off -align-after with mri_ca_register
-no-ca-align : turn off -align with mri_ca_label
-deface : deface subject, written to orig_defaced.mgz
-expert file : read-in expert options file
-xopts-use : use pre-existing expert options file
-xopts-clean : delete pre-existing expert options file
-xopts-overwrite : overwrite pre-existing expert options file
-termscript script : run script before exiting (multiple -termscript flags possible)
This can be good for running custom post-processing after recon-all
The script must be in your path. The subjid is passed as the only argument
The current directory is changed to SUBJECTS_DIR before the script is run
The script should exit with 0 unless there is an error
-mprage : assume scan parameters are MGH MP-RAGE protocol
-washu_mprage : assume scan parameters are Wash.U. MP-RAGE protocol.
both mprage flags affect mri_normalize and mri_segment,
and assumes a darker gm.
-schwartzya3t-atlas : for tal reg, use special young adult 3T atlas
-threads num : set number of threads to use
Notification Files (Optional)
-waitfor file : wait for file to appear before beginning
-notify file : create this file after finishing
Status and Log files (Optional)
-log file : default is scripts/recon-all.log
-status file : default is scripts/recon-all-status.log
-noappend : start new log and status files instead of appending
-no-isrunning : do not check whether this subject is currently being processed
Segmentation of substructures of hippocampus and brainstem
(These deprecated; please see segmentHA_T1.sh, segmentHA_T1.sh, segmentHA_T1_long.sh, segmentBS.sh)
-hippocampal-subfields-T1 : segmentation of hippocampal subfields using input T1 scan
-hippocampal-subfields-T2 file ID : segmentation using an additional scan (given by file);
ID is a user-defined identifier for the analysis
-hippocampal-subfields-T1T2 file ID : segmentation using additional scan (given by file) and input T1
simultaneously; ID is a user-defined identifier for the analysis
-brainstem-structures : segmentation of brainstem structures
Other Arguments (Optional)
-sd subjectsdir : specify subjects dir (default env SUBJECTS_DIR)
-mail username : mail user when done
-umask umask : set unix file permission mask (default 002)
-grp groupid : check that current group is alpha groupid
-onlyversions : print version of each binary and exit
-debug : print out lots of info
-allowcoredump : set coredump limit to unlimited
-dontrun : do everything but execute each command
-version : print version of this script and exit
-help : voluminous bits of wisdom
Download data#
![ -f ./mp2rage.nii ] && echo "$FILE exist." || wget https://imaging.org.au/uploads/Human7T/mp2rageModel_L13_work03-plus-hippocampus-7T-sym-norm-mincanon_v0.8.nii -O ./mp2rage.nii
--2026-02-15 23:01:08-- https://imaging.org.au/uploads/Human7T/mp2rageModel_L13_work03-plus-hippocampus-7T-sym-norm-mincanon_v0.8.nii
Resolving imaging.org.au (imaging.org.au)... 203.101.229.7
Connecting to imaging.org.au (imaging.org.au)|203.101.229.7|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 1536000352 (1.4G) [application/octet-stream]
Saving to: ‘./mp2rage.nii’
./mp2rage.nii 100%[===================>] 1.43G 9.13MB/s in 2m 42s
2026-02-15 23:03:53 (9.05 MB/s) - ‘./mp2rage.nii’ saved [1536000352/1536000352]
!ls
FSL_course_bet.ipynb intro.md
SYNcro.ipynb mp2rage.nii
brain_extraction_different_tools.ipynb preCourse.tar.gz
freesurfer-recon-all-clinical.ipynb sct_toolbox.ipynb
freesurfer.ipynb
Run#
%%bash
#setup freesurfer
export SUBJECTS_DIR=$PWD/freesurfer-output
mkdir $SUBJECTS_DIR
export SINGULARITYENV_SUBJECTS_DIR=$SUBJECTS_DIR
export APPTAINERENV_SUBJECTS_DIR=$SUBJECTS_DIR
#when using freesurfer >8.0.0
export FS_ALLOW_DEEP=1
export APPTAINERENV_FS_ALLOW_DEEP=$FS_ALLOW_DEEP
export SINGULARITYENV_FS_ALLOW_DEEP=$FS_ALLOW_DEEP
export FS_LICENSE=~/.license
recon-all -subject subjectname -i mp2rage.nii -all -sd $SUBJECTS_DIR
Adding options -fix-ento-wm -transfer-base-bfs -fix-vsinus -fix-mca-dura -fix-ga -fix-acj -synthstrip -synthseg -synthmorph
fs-check-version --s subjectname --o /tmp/tmp.o5gfWt
Sun Feb 15 11:04:06 PM UTC 2026
setenv SUBJECTS_DIR /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output
cd /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging
/opt/freesurfer-8.1.0/bin/fs-check-version --s subjectname --o /tmp/tmp.o5gfWt
-rwxr-xr-x 1 nobody nogroup 18565 Jul 19 2025 /opt/freesurfer-8.1.0/bin/fs-check-version
freesurfer-linux-ubuntu22_x86_64-8.1.0-20250719-f30dfed
$Id$
Linux jupyter-monidoerig 5.15.0-164-generic #174-Ubuntu SMP Fri Nov 14 20:25:16 UTC 2025 x86_64 x86_64 x86_64 GNU/Linux
pid 327737
Current FS Version freesurfer-linux-ubuntu22_x86_64-8.1.0-20250719-f30dfed
Subject does not have a bstampfile, copying /opt/freesurfer-8.1.0/build-stamp.txt
Subject FS Version: freesurfer-linux-ubuntu22_x86_64-8.1.0-20250719-f30dfed
No constraints on version because REQ=UnSet and FsVerFile=NotThere
#@#% fs-check-version match = 1
fs-check-version Done
INFO: SUBJECTS_DIR is /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output
Actual FREESURFER_HOME /opt/freesurfer-8.1.0
Linux jupyter-monidoerig 5.15.0-164-generic #174-Ubuntu SMP Fri Nov 14 20:25:16 UTC 2025 x86_64 x86_64 x86_64 GNU/Linux
/home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname
mri_convert /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/mp2rage.nii /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/orig/001.mgz
mri_convert /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/mp2rage.nii /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/orig/001.mgz
INFO: using NIfTI-1 sform (sform_code=1)
reading from /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/mp2rage.nii...
TR=0.00, TE=0.00, TI=0.00, flip angle=0.00
i_ras = (1, 0, 0)
j_ras = (0, 1, 0)
k_ras = (0, 0, 1)
writing to /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/orig/001.mgz...
#--------------------------------------------
#@# MotionCor Sun Feb 15 11:06:39 PM UTC 2026
Found 1 runs
/home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/orig/001.mgz
Checking for (invalid) multi-frame inputs...
Only one run found so motion
correction will not be performed. I'll
copy the run to rawavg and continue.
cp /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/orig/001.mgz /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/rawavg.mgz
mri_info /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/rawavg.mgz
rawavg.mgz ========================================
Volume information for /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/rawavg.mgz
type: MGH
intent: MRI (0)
dimensions: 640 x 750 x 800
voxel sizes: 0.300000, 0.300000, 0.300000
type: FLOAT (3)
fov: 240.000
dof: 1
xstart: -96.0, xend: 96.0
ystart: -112.5, yend: 112.5
zstart: -120.0, zend: 120.0
TR: 0.00 msec, TE: 0.00 msec, TI: 0.00 msec, flip angle: 0.00 degrees
nframes: 1
PhEncDir: UNKNOWN
FieldStrength: 0.000000
ras xform present
xform info: x_r = 1.0000, y_r = 0.0000, z_r = 0.0000, c_r = 0.3750
: x_a = 0.0000, y_a = 1.0000, z_a = 0.0000, c_a = 0.3750
: x_s = 0.0000, y_s = 0.0000, z_s = 1.0000, c_s = 0.3750
talairach xfm :
Orientation : RAS
Primary Slice Direction: axial
voxel to ras transform:
0.3000 0.0000 0.0000 -95.6250
0.0000 0.3000 0.0000 -112.1250
0.0000 0.0000 0.3000 -119.6250
0.0000 0.0000 0.0000 1.0000
voxel-to-ras determinant 0.027
ras to voxel transform:
3.3333 0.0000 0.0000 318.7500
0.0000 3.3333 0.0000 373.7500
0.0000 0.0000 3.3333 398.7500
0.0000 0.0000 0.0000 1.0000
/home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname
mri_convert /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/rawavg.mgz /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/orig.mgz --conform
mri_convert /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/rawavg.mgz /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/orig.mgz --conform
reading from /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/rawavg.mgz...
TR=0.00, TE=0.00, TI=0.00, flip angle=0.00
i_ras = (1, 0, 0)
j_ras = (0, 1, 0)
k_ras = (0, 0, 1)
volume geometry:
valid : -1313717184
extent : (256, 256, 256)
voxel : ( 1.0000, 1.0000, 1.0000)
x_(ras) : (-1.0000, 0.0000, 0.0000)
y_(ras) : ( 0.0000, 0.0000, -1.0000)
z_(ras) : ( 0.0000, 1.0000, 0.0000)
c_(ras) : ( 0.3750, 0.3750, 0.3750)
shears : ( 0.0000, 0.0000, 0.0000)
file : /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/rawavg.mgz
changing data type from float to uchar (noscale = 0)...
MRIchangeType: Building histogram 0 255 1000, flo=0, fhi=0.999, dest_type=0
Reslicing using trilinear interpolation
writing to /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/orig.mgz...
mri_add_xform_to_header -c /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/talairach.xfm /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/orig.mgz /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/orig.mgz
INFO: extension is mgz
mri_info /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/orig.mgz
orig.mgz ========================================
Volume information for /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/orig.mgz
type: MGH
intent: MRI (0)
dimensions: 256 x 256 x 256
voxel sizes: 1.000000, 1.000000, 1.000000
type: UCHAR (0)
fov: 256.000
dof: 1
xstart: -128.0, xend: 128.0
ystart: -128.0, yend: 128.0
zstart: -128.0, zend: 128.0
TR: 0.00 msec, TE: 0.00 msec, TI: 0.00 msec, flip angle: 0.00 degrees
nframes: 1
PhEncDir: UNKNOWN
FieldStrength: 0.000000
ras xform present
xform info: x_r = -1.0000, y_r = 0.0000, z_r = 0.0000, c_r = 0.3750
: x_a = 0.0000, y_a = 0.0000, z_a = 1.0000, c_a = 0.3750
: x_s = 0.0000, y_s = -1.0000, z_s = 0.0000, c_s = 0.3750
talairach xfm : /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/talairach.xfm
Orientation : LIA
Primary Slice Direction: coronal
voxel to ras transform:
-1.0000 0.0000 0.0000 128.3750
0.0000 0.0000 1.0000 -127.6250
0.0000 -1.0000 0.0000 128.3750
0.0000 0.0000 0.0000 1.0000
voxel-to-ras determinant -1
ras to voxel transform:
-1.0000 -0.0000 -0.0000 128.3750
-0.0000 -0.0000 -1.0000 128.3750
-0.0000 1.0000 -0.0000 127.6250
-0.0000 -0.0000 -0.0000 1.0000
lta_convert --inlta identity.nofile --src /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/rawavg.mgz --trg /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/orig.mgz --outlta /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/rawavg2orig.lta --subject subjectname
8.1.0
--inlta: identity.nofile input LTA transform.
--src: /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/rawavg.mgz src image (geometry).
--trg: /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/orig.mgz trg image (geometry).
--outlta: /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/rawavg2orig.lta output LTA.
--s: subjectname subject name
LTA read, type : 1
1.00000 0.00000 0.00000 0.00000;
0.00000 1.00000 0.00000 0.00000;
0.00000 0.00000 1.00000 0.00000;
0.00000 0.00000 0.00000 1.00000;
setting subject to subjectname
Writing LTA to file /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/rawavg2orig.lta...
lta_convert successful.
mri_synthstrip --threads 1 -i /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/orig.mgz -o /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/synthstrip.mgz
Configuring model on the CPU
Running SynthStrip model version 1
Input image read from: /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/orig.mgz
Processing frame (of 1): 1 done
Masked image saved to: /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/synthstrip.mgz
If you use SynthStrip in your analysis, please cite:
----------------------------------------------------
SynthStrip: Skull-Stripping for Any Brain Image
A Hoopes, JS Mora, AV Dalca, B Fischl, M Hoffmann
NeuroImage 206 (2022), 119474
https://doi.org/10.1016/j.neuroimage.2022.119474
Website: https://synthstrip.io
mri_synthseg --i /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/orig.mgz --o /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/synthseg.rca.mgz --threads 1 --vol /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/stats/synthseg.vol.csv --keepgeom --addctab --cpu
SynthSeg 2.0
using CPU, hiding all CUDA_VISIBLE_DEVICES
using 1 thread
addctab True
predicting 1/1
1/1 [==============================] - 861s 861s/step
Reslicing to have same geom as the input [1. 1. 1.]
segmentation saved in: /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/synthseg.rca.mgz
volumes saved in: /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/stats/synthseg.vol.csv
#@# mri_synthseg vmpeak 17950540
If you use this tool in a publication, please cite:
SynthSeg: Segmentation of brain MRI scans of any contrast and resolution without retraining
B. Billot, D.N. Greve, O. Puonti, A. Thielscher, K. Van Leemput, B. Fischl, A.V. Dalca, J.E. Iglesias
Medical Image Analysis, 2023.
~/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri ~/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname
~/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname
~/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms ~/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname
~/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname
Sun Feb 15 11:35:46 PM UTC 2026
setenv SUBJECTS_DIR /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output
cd /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname
/opt/freesurfer-8.1.0/bin/fs-synthmorph-reg --i /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/synthstrip.mgz --t /opt/freesurfer-8.1.0/average/mni305.cor.stripped.mgz --affine-only --o /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.mni305 --threads 1
-rwxr-xr-x 1 nobody nogroup 30890 Jul 19 2025 /opt/freesurfer-8.1.0/bin/fs-synthmorph-reg
freesurfer-linux-ubuntu22_x86_64-8.1.0-20250719-f30dfed
$Id$
Linux jupyter-monidoerig 5.15.0-164-generic #174-Ubuntu SMP Fri Nov 14 20:25:16 UTC 2025 x86_64 x86_64 x86_64 GNU/Linux
pid 328357
Sun Feb 15 11:35:48 PM UTC 2026
mri_synthmorph -m affine -t /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.mni305/aff.lta /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/synthstrip.mgz /usr/local/freesurfer/8.1.0/average/mni305.cor.stripped.mgz -j 1
#@# mri_synthmorph: affine, threads: 1, VmPeak: 6647424
Thank you for choosing SynthMorph. Please cite us!
SynthMorph: learning contrast-invariant registration without acquired images
Hoffmann M, Billot B, Greve DN, Iglesias JE, Fischl B, Dalca AV
IEEE Transactions on Medical Imaging, 41 (3), 543-558, 2022
https://doi.org/10.1109/TMI.2021.3116879
Anatomy-specific acquisition-agnostic affine registration learned from
fictitious images
Hoffmann M, Hoopes A, Fischl B*, Dalca AV* (*equal contribution)
SPIE Medical Imaging: Image Processing, 12464, 1246402, 2023
https://doi.org/10.1117/12.2653251
https://synthmorph.io/#papers (PDF)
Anatomy-aware and acquisition-agnostic joint registration with SynthMorph
Hoffmann M, Hoopes A, Greve DN, Fischl B*, Dalca AV* (*equal contribution)
Imaging Neuroscience, 2, 1-33, 2024
https://doi.org/10.1162/imag_a_00197
Website: https://synthmorph.io
~/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.mni305 ~/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname
~/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname
lta_convert --invert --inlta /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.mni305/aff.lta --outlta /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.mni305/reg.targ_to_invol.lta
8.1.0
--invert: will invert transform.
--inlta: /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.mni305/aff.lta input LTA transform.
--outlta: /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.mni305/reg.targ_to_invol.lta output LTA.
LTA read, type : 1
1.04569 0.00323 0.00594 -0.07553;
0.00904 0.96688 0.33561 -10.03954;
-0.00261 -0.32509 1.08153 -23.69741;
0.00000 0.00000 0.00000 1.00000;
Writing LTA to file /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.mni305/reg.targ_to_invol.lta...
lta_convert successful.
To check affine registration
tkregisterfv --mov /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/synthstrip.mgz --targ /usr/local/freesurfer/8.1.0/average/mni305.cor.stripped.mgz --reg /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.mni305/aff.lta
AffineOnly specified, so exiting now
Started at Sun Feb 15 11:35:46 PM UTC 2026
Ended at Sun Feb 15 11:38:45 PM UTC 2026
Fs-Synthmorph-Reg-Run-Time-Sec 179
Fs-Synthmorph-Reg-Run-Time-Min 2.98
Fs-Synthmorph-Reg-Run-Time-Hours 0.05
fs-synthmorph-reg Done
~/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms ~/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname
8.1.0
--ltavox2vox: output LTA as VOX_TO_VOX transform.
--inlta: synthmorph.mni305/aff.lta input LTA transform.
--outlta: talairach.xfm.lta output LTA.
LTA read, type : 1
1.04569 0.00323 0.00594 -0.07553;
0.00904 0.96688 0.33561 -10.03954;
-0.00261 -0.32509 1.08153 -23.69741;
0.00000 0.00000 0.00000 1.00000;
Writing LTA to file talairach.xfm.lta...
lta_convert successful.
8.1.0
--inlta: talairach.xfm.lta input LTA transform.
--outmni: talairach.xfm output MNI/XFM matrix.
LTA read, type : 1
1.04569 0.00323 0.00594 -0.07552;
0.00904 0.96688 0.33561 -10.03953;
-0.00261 -0.32509 1.08153 -23.69742;
0.00000 0.00000 0.00000 1.00000;
lta_convert successful.
~/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname
fs-synthmorph-reg --s subjectname --threads 1 --i /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/orig.mgz --test
Sun Feb 15 11:38:49 PM UTC 2026
setenv SUBJECTS_DIR /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output
cd /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname
/opt/freesurfer-8.1.0/bin/fs-synthmorph-reg --s subjectname --threads 1 --i /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/orig.mgz --test
-rwxr-xr-x 1 nobody nogroup 30890 Jul 19 2025 /opt/freesurfer-8.1.0/bin/fs-synthmorph-reg
freesurfer-linux-ubuntu22_x86_64-8.1.0-20250719-f30dfed
$Id$
Linux jupyter-monidoerig 5.15.0-164-generic #174-Ubuntu SMP Fri Nov 14 20:25:16 UTC 2025 x86_64 x86_64 x86_64 GNU/Linux
pid 328530
mri_mask -bb 3 /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/orig.mgz /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/orig.mgz /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/tmp/invol.crop.nii.gz
cropping npad = 3
DoAbs = 0
Computing bounding box, npad = 3, 3, 3, 3, 3, 3
34 6 13 188 245 230
maskval=0, outval=0
Writing masked volume to /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/tmp/invol.crop.nii.gz...done.
lta_convert --inlta identity.nofile --src /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/tmp/invol.crop.nii.gz --trg /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/orig.mgz --outlta /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/tmp/reg.crop-to-invol.lta
8.1.0
--inlta: identity.nofile input LTA transform.
--src: /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/tmp/invol.crop.nii.gz src image (geometry).
--trg: /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/orig.mgz trg image (geometry).
--outlta: /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/tmp/reg.crop-to-invol.lta output LTA.
LTA read, type : 1
1.00000 0.00000 0.00000 0.00000;
0.00000 1.00000 0.00000 0.00000;
0.00000 0.00000 1.00000 0.00000;
0.00000 0.00000 0.00000 1.00000;
Writing LTA to file /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/tmp/reg.crop-to-invol.lta...
lta_convert successful.
Sun Feb 15 11:38:55 PM UTC 2026
mri_synthmorph -m affine -t /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/aff.lta /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/tmp/invol.crop.nii.gz /opt/freesurfer-8.1.0/average/mni_icbm152_nlin_asym_09c/reg-targets/mni152.1.0mm.cropped.nii.gz -j 1
#@# mri_synthmorph: affine, threads: 1, VmPeak: 6618432
Thank you for choosing SynthMorph. Please cite us!
SynthMorph: learning contrast-invariant registration without acquired images
Hoffmann M, Billot B, Greve DN, Iglesias JE, Fischl B, Dalca AV
IEEE Transactions on Medical Imaging, 41 (3), 543-558, 2022
https://doi.org/10.1109/TMI.2021.3116879
Anatomy-specific acquisition-agnostic affine registration learned from
fictitious images
Hoffmann M, Hoopes A, Fischl B*, Dalca AV* (*equal contribution)
SPIE Medical Imaging: Image Processing, 12464, 1246402, 2023
https://doi.org/10.1117/12.2653251
https://synthmorph.io/#papers (PDF)
Anatomy-aware and acquisition-agnostic joint registration with SynthMorph
Hoffmann M, Hoopes A, Greve DN, Fischl B*, Dalca AV* (*equal contribution)
Imaging Neuroscience, 2, 1-33, 2024
https://doi.org/10.1162/imag_a_00197
Website: https://synthmorph.io
Sun Feb 15 11:40:48 PM UTC 2026
mri_concatenate_lta -invert1 -invertout /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/aff.lta /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/tmp/reg.crop-to-invol.lta /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/tmp/reg.invol_to_croptarg.lta
invert the first LTA before applying it
invert the output LTA
Read individual LTAs
Warning: dst volume of lta1 doesn't match src volume of lta2
Volume geometry for lta1-dst:
volume geometry:
extent : (188, 245, 230)
voxel : ( 1.0000, 1.0000, 1.0000)
x_(ras) : (-1.0000, 0.0000, 0.0000)
y_(ras) : ( 0.0000, 0.0000, -1.0000)
z_(ras) : ( 0.0000, 1.0000, 0.0000)
c_(ras) : ( 0.3750, 0.3750, -0.1250)
shears : ( 0.0000, 0.0000, 0.0000)
file : none
Volume geometry for lta2-src:
volume geometry:
extent : (188, 245, 230)
voxel : ( 1.0000, 1.0000, 1.0000)
x_(ras) : (-1.0000, 0.0000, 0.0000)
y_(ras) : ( 0.0000, 0.0000, -1.0000)
z_(ras) : ( 0.0000, 1.0000, 0.0000)
c_(ras) : ( 0.3750, 0.3750, -0.1250)
shears : ( 0.0000, 0.0000, 0.0000)
file : /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/tmp/invol.crop.nii.gz
Combining the two LTAs to get a RAS-to-RAS from src of LTA1 to dst of LTA2...
Inverting output LTA
Writing combined LTA to file /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/tmp/reg.invol_to_croptarg.lta...
mri_concatenate_lta successful.
mri_concatenate_lta -invert2 /opt/freesurfer-8.1.0/average/mni_icbm152_nlin_asym_09c/reg-targets/reg.1.0mm.to.1.0mm.cropped.lta /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/tmp/reg.invol_to_croptarg.lta /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/reg.targ_to_invol.lta
invert the second LTA before applying it
Read individual LTAs
Combining the two LTAs to get a RAS-to-RAS from src of LTA1 to dst of LTA2...
Writing combined LTA to file /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/reg.targ_to_invol.lta...
mri_concatenate_lta successful.
lta_convert --invert --inlta /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/reg.targ_to_invol.lta --outlta /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/reg.invol_to_targ.lta
8.1.0
--invert: will invert transform.
--inlta: /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/reg.targ_to_invol.lta input LTA transform.
--outlta: /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/reg.invol_to_targ.lta output LTA.
LTA read, type : 1
0.91413 0.00333 -0.00726 0.49654;
-0.01463 0.90958 -0.23624 1.82455;
-0.00540 0.27808 0.79995 22.73711;
0.00000 0.00000 0.00000 1.00000;
Writing LTA to file /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/reg.invol_to_targ.lta...
lta_convert successful.
lta_convert --inlta /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/reg.invol_to_targ.lta --outmni /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/reg.invol_to_targ.xfm
8.1.0
--inlta: /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/reg.invol_to_targ.lta input LTA transform.
--outmni: /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/reg.invol_to_targ.xfm output MNI/XFM matrix.
LTA read, type : 1
1.09389 -0.00646 0.00802 -0.71376;
0.01789 1.00826 0.29793 -8.62249;
0.00116 -0.35054 1.14657 -25.43064;
0.00000 0.00000 0.00000 1.00000;
lta_convert successful.
To check affine registration
tkregisterfv --mov /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/orig.mgz --targ /opt/freesurfer-8.1.0/average/mni_icbm152_nlin_asym_09c/reg-targets/mni152.1.0mm.nii.gz --reg /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/reg.invol_to_targ.lta
mri_synthmorph -m deform -t /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/tmp/deform.mgz -i /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/aff.lta /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/tmp/invol.crop.nii.gz /opt/freesurfer-8.1.0/average/mni_icbm152_nlin_asym_09c/reg-targets/mni152.1.0mm.cropped.nii.gz -j 1 -o /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/tmp/synthmorph.out.mgz
#@# mri_synthmorph: deform, threads: 1, VmPeak: 15244668
Thank you for choosing SynthMorph. Please cite us!
SynthMorph: learning contrast-invariant registration without acquired images
Hoffmann M, Billot B, Greve DN, Iglesias JE, Fischl B, Dalca AV
IEEE Transactions on Medical Imaging, 41 (3), 543-558, 2022
https://doi.org/10.1109/TMI.2021.3116879
Anatomy-specific acquisition-agnostic affine registration learned from
fictitious images
Hoffmann M, Hoopes A, Fischl B*, Dalca AV* (*equal contribution)
SPIE Medical Imaging: Image Processing, 12464, 1246402, 2023
https://doi.org/10.1117/12.2653251
https://synthmorph.io/#papers (PDF)
Anatomy-aware and acquisition-agnostic joint registration with SynthMorph
Hoffmann M, Hoopes A, Greve DN, Fischl B*, Dalca AV* (*equal contribution)
Imaging Neuroscience, 2, 1-33, 2024
https://doi.org/10.1162/imag_a_00197
Website: https://synthmorph.io
mri_warp_convert --inras /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/tmp/deform.mgz --insrcgeom /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/tmp/invol.crop.nii.gz --outm3z /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/warp.to.mni152.1.0mm.1.0mm.nii.gz --vg-thresh 1e-5 --lta1-inv /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/tmp/reg.crop-to-invol.lta --lta2 /opt/freesurfer-8.1.0/average/mni_icbm152_nlin_asym_09c/reg-targets/reg.1.0mm.cropped.to.1.0mm.lta
8.1.0
--inras: /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/tmp/deform.mgz input RAS warp.
--insrcgeom: /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/tmp/invol.crop.nii.gz atlas/source image (used for geometry).
--outm3z: /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/warp.to.mni152.1.0mm.1.0mm.nii.gz output M3Z.
Setting vg_isEqual_Threshold to 0.000010
Applying LTAs to the GCAM
GCAMwrite(/home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/warp.to.mni152.1.0mm.1.0mm.nii.gz)
[INFO] Warpfield::convert(): converting GCAM ...
[INFO] Warpfield::convert(): gcam [193 x 229 x 193]
[INFO] Warpfield::convert(): gcam image [256 x 256 x 256]
[INFO] Warpfield::convert(): gcam atlas [193 x 229 x 193]
[INFO] Warpfield::convert(): total out of range voxel count: 0
[INFO] niiWrite(): MGZ_INTENT_WARPMAP => NIFTI_INTENT_DISPVECT, intent_code = 1006, dimensions = {5, 193, 229, 193, 1, 3, 1, 1}
[INFO] niiWrite(): convert displacement from 0 to 3
mri_warp_convert successful.
mri_ca_register -invert-and-save /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/warp.to.mni152.1.0mm.1.0mm.nii.gz /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/warp.to.mni152.1.0mm.1.0mm.inv.nii.gz
INFO: using NIfTI-1 sform (sform_code=1)
Loading gcam
[INFO] niiRead(): intent_code = 1006, dimensions = {5, 193, 229, 193, 1, 3, 1, 1}
[DEBUG] Warpfield::read() gcam->status = GCAM_LABELED
setting orig areas to linear transform determinant scaled 1.00
Computing inverse of GCAM
Filling inverse of GCAM
Allocating inv_gcam...(256, 256, 256)
Saving inverse to /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/warp.to.mni152.1.0mm.1.0mm.inv.nii.gz
GCAMwrite(/home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/warp.to.mni152.1.0mm.1.0mm.inv.nii.gz)
[INFO] Warpfield::convert(): converting GCAM ...
[INFO] Warpfield::convert(): gcam [256 x 256 x 256]
[INFO] Warpfield::convert(): gcam image [193 x 229 x 193]
[INFO] Warpfield::convert(): gcam atlas [256 x 256 x 256]
[INFO] Warpfield::convert(): total out of range voxel count: 0
[INFO] niiWrite(): MGZ_INTENT_WARPMAP => NIFTI_INTENT_DISPVECT, intent_code = 1006, dimensions = {5, 256, 256, 256, 1, 3, 1, 1}
[INFO] niiWrite(): convert displacement from 0 to 3
mri_vol2vol --regheader --mov /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/tmp/synthmorph.out.mgz --targ /opt/freesurfer-8.1.0/average/mni_icbm152_nlin_asym_09c/reg-targets/mni152.1.0mm.nii.gz --o /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/tmp/morph.out.nii.gz
movvol /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/tmp/synthmorph.out.mgz
targvol /opt/freesurfer-8.1.0/average/mni_icbm152_nlin_asym_09c/reg-targets/mni152.1.0mm.nii.gz
outvol /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/tmp/morph.out.nii.gz
invert 0
tal 0
talres 2
regheader 1
noresample 0
interp trilinear (1)
precision float (3)
Gdiag_no -1
Synth 0
SynthSeed 1772126768
Computing registration based on scanner-to-scanner
Final tkRAS-to-tkRAS Matrix is:
1.00000 0.00000 0.00000 -0.50000;
0.00000 1.00000 0.00000 13.50000;
0.00000 0.00000 1.00000 0.00000;
0.00000 0.00000 0.00000 1.00000;
Vox2Vox Matrix is:
1.00000 0.00000 0.00000 -20.00000;
0.00000 1.00000 0.00000 -20.00000;
0.00000 0.00000 1.00000 -2.00000;
0.00000 0.00000 0.00000 1.00000;
Resampling
Output registration matrix is identity
mri_vol2vol done
mri_convert -rt nearest /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/orig.mgz -at /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/warp.to.mni152.1.0mm.1.0mm.nii.gz /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/test.nii.gz
mri_convert -rt nearest /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/orig.mgz -at /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/warp.to.mni152.1.0mm.1.0mm.nii.gz /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/test.nii.gz
INFO: using NIfTI-1 sform (sform_code=1)
reading from /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/orig.mgz...
TR=0.00, TE=0.00, TI=0.00, flip angle=0.00
i_ras = (-1, 0, 0)
j_ras = (0, 0, -1)
k_ras = (0, 1, 0)
INFO: Reading transformation from file /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/warp.to.mni152.1.0mm.1.0mm.nii.gz...
INFO: Applying transformation from file /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/warp.to.mni152.1.0mm.1.0mm.nii.gz...
Applying morph_3d ...
[INFO] niiRead(): intent_code = 1006, dimensions = {5, 193, 229, 193, 1, 3, 1, 1}
[DEBUG] Warpfield::read() gcam->status = GCAM_LABELED
setting orig areas to linear transform determinant scaled 1.00
morphing to atlas with resample type 0
writing to /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/test.nii.gz...
mri_diff --po /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/test.nii.gz /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/tmp/morph.out.nii.gz
mri_diff --po /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/test.nii.gz /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/tmp/morph.out.nii.gz
diffcount 4594649
Volumes differ in pixel data
maxdiff 129.76824188 at 104 137 52 0
tkmeditfv -f /opt/freesurfer-8.1.0/average/mni_icbm152_nlin_asym_09c/reg-targets/mni152.1.0mm.nii.gz -aux /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/test.nii.gz
Started at Sun Feb 15 11:38:49 PM UTC 2026
Ended at Mon Feb 16 12:13:06 AM UTC 2026
Fs-Synthmorph-Reg-Run-Time-Sec 2057
Fs-Synthmorph-Reg-Run-Time-Min 34.28
Fs-Synthmorph-Reg-Run-Time-Hours 0.57
fs-synthmorph-reg Done
#--------------------------------------------
#@# Nu Intensity Correction Mon Feb 16 12:13:06 AM UTC 2026
mri_nu_correct.mni --i orig.mgz --o nu.mgz --uchar transforms/talairach.xfm --n 2 --ants-n4
/usr/bin/bc
/home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri
/opt/freesurfer-8.1.0/bin/mri_nu_correct.mni
--i orig.mgz --o nu.mgz --uchar transforms/talairach.xfm --n 2 --ants-n4
nIters 2
mri_nu_correct.mni 8.1.0
Linux jupyter-monidoerig 5.15.0-164-generic #174-Ubuntu SMP Fri Nov 14 20:25:16 UTC 2025 x86_64 x86_64 x86_64 GNU/Linux
Mon Feb 16 12:13:08 AM UTC 2026
tmpdir is ./tmp.mri_nu_correct.mni.329043
cd /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri
AntsN4BiasFieldCorrectionFs -i orig.mgz -o ./tmp.mri_nu_correct.mni.329043/nu0.mgz --dtype uchar
AntsN4BiasFieldCorrectionFs done
mri_binarize --i ./tmp.mri_nu_correct.mni.329043/nu0.mgz --min -1 --o ./tmp.mri_nu_correct.mni.329043/ones.mgz
8.1.0
cwd /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri
cmdline mri_binarize --i ./tmp.mri_nu_correct.mni.329043/nu0.mgz --min -1 --o ./tmp.mri_nu_correct.mni.329043/ones.mgz
sysname Linux
hostname jupyter-monidoerig
machine x86_64
user jovyan
input ./tmp.mri_nu_correct.mni.329043/nu0.mgz
frame 0
nErode3d 0
nErode2d 0
output ./tmp.mri_nu_correct.mni.329043/ones.mgz
Binarizing based on threshold
min -1
max +infinity
binval 1
binvalnot 0
fstart = 0, fend = 0, nframes = 1
Found 16777216 values in range
Counting number of voxels in first frame
Found 16777216 voxels in final mask
Writing output to ./tmp.mri_nu_correct.mni.329043/ones.mgz
Count: 16777216 16777216.000000 16777216 100.000000
mri_binarize done
mri_segstats --id 1 --seg ./tmp.mri_nu_correct.mni.329043/ones.mgz --i orig.mgz --sum ./tmp.mri_nu_correct.mni.329043/sum.junk --avgwf ./tmp.mri_nu_correct.mni.329043/input.mean.dat
8.1.0
cwd
cmdline mri_segstats --id 1 --seg ./tmp.mri_nu_correct.mni.329043/ones.mgz --i orig.mgz --sum ./tmp.mri_nu_correct.mni.329043/sum.junk --avgwf ./tmp.mri_nu_correct.mni.329043/input.mean.dat
sysname Linux
hostname jupyter-monidoerig
machine x86_64
user jovyan
whitesurfname white
UseRobust 0
Loading ./tmp.mri_nu_correct.mni.329043/ones.mgz
Loading orig.mgz
Voxel Volume is 1 mm^3
Generating list of segmentation ids
Found 1 segmentations
Computing statistics for each segmentation
Reporting on 1 segmentations
Using PrintSegStat
Computing spatial average of each frame
Writing to ./tmp.mri_nu_correct.mni.329043/input.mean.dat
mri_segstats done
mri_segstats --id 1 --seg ./tmp.mri_nu_correct.mni.329043/ones.mgz --i ./tmp.mri_nu_correct.mni.329043/nu0.mgz --sum ./tmp.mri_nu_correct.mni.329043/sum.junk --avgwf ./tmp.mri_nu_correct.mni.329043/output.mean.dat
8.1.0
cwd
cmdline mri_segstats --id 1 --seg ./tmp.mri_nu_correct.mni.329043/ones.mgz --i ./tmp.mri_nu_correct.mni.329043/nu0.mgz --sum ./tmp.mri_nu_correct.mni.329043/sum.junk --avgwf ./tmp.mri_nu_correct.mni.329043/output.mean.dat
sysname Linux
hostname jupyter-monidoerig
machine x86_64
user jovyan
whitesurfname white
UseRobust 0
Loading ./tmp.mri_nu_correct.mni.329043/ones.mgz
Loading ./tmp.mri_nu_correct.mni.329043/nu0.mgz
Voxel Volume is 1 mm^3
Generating list of segmentation ids
Found 1 segmentations
Computing statistics for each segmentation
Reporting on 1 segmentations
Using PrintSegStat
Computing spatial average of each frame
Writing to ./tmp.mri_nu_correct.mni.329043/output.mean.dat
mri_segstats done
mris_calc -o ./tmp.mri_nu_correct.mni.329043/nu0.mgz ./tmp.mri_nu_correct.mni.329043/nu0.mgz mul 1.16048835830789136545
Packing
Done packing
Unpacking
Saving result to './tmp.mri_nu_correct.mni.329043/nu0.mgz' (type = MGH ) [ ok ]
#VMPC# mris_calc VmPeak 213688
mri_convert ./tmp.mri_nu_correct.mni.329043/nu0.mgz nu.mgz --like orig.mgz
mri_convert ./tmp.mri_nu_correct.mni.329043/nu0.mgz nu.mgz --like orig.mgz
reading from ./tmp.mri_nu_correct.mni.329043/nu0.mgz...
TR=0.00, TE=0.00, TI=0.00, flip angle=0.00
i_ras = (-1, 0, 0)
j_ras = (0, 0, -1)
k_ras = (0, 1, 0)
INFO: transform src into the like-volume: orig.mgz
writing to nu.mgz...
mri_make_uchar nu.mgz transforms/talairach.xfm nu.mgz
type change took 0 minutes and 6 seconds.
FIRST_PERCENTILE 0.010000
WM_PERCENTILE 0.900000
MAX_R 50.000000
i1 = 5, i2 = 81
#mri_make_uchar# mapping 13 209 to 3 110 : b -4.51908 m 0.548893 : thresh 8.23308 maxsat 472.804 : nzero 12014042 nsat 0
Mon Feb 16 12:17:00 AM UTC 2026
mri_nu_correct.mni done
mri_add_xform_to_header -c /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/talairach.xfm nu.mgz nu.mgz
INFO: extension is mgz
#--------------------------------------------
#@# Intensity Normalization Mon Feb 16 12:17:01 AM UTC 2026
/home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri
mri_normalize -g 1 -seed 1234 -mprage nu.mgz T1.mgz
using max gradient = 1.000
setting seed for random number genererator to 1234
assuming input volume is MGH (Van der Kouwe) MP-RAGE
reading mri_src from nu.mgz...
normalizing image...
NOT doing gentle normalization with control points/label
talairach transform
1.04569 0.00323 0.00594 -0.07552;
0.00904 0.96688 0.33561 -10.03953;
-0.00261 -0.32509 1.08153 -23.69742;
0.00000 0.00000 0.00000 1.00000;
processing without aseg, no1d=0
MRInormInit():
INFO: Modifying talairach volume c_(r,a,s) based on average_305
MRInormalize():
MRIsplineNormalize(): npeaks = 20
Starting OpenSpline(): npoints = 20
building Voronoi diagram...
performing soap bubble smoothing, sigma = 8...
Iterating 2 times
---------------------------------
3d normalization pass 1 of 2
white matter peak found at 110
white matter peak found at 110
gm peak at 65 (65), valley at 53 (53)
csf peak at 33, setting threshold to 54
building Voronoi diagram...
performing soap bubble smoothing, sigma = 8...
---------------------------------
3d normalization pass 2 of 2
white matter peak found at 110
white matter peak found at 110
gm peak at 63 (63), valley at 41 (41)
csf peak at 32, setting threshold to 52
building Voronoi diagram...
performing soap bubble smoothing, sigma = 8...
Done iterating ---------------------------------
writing output to T1.mgz
3D bias adjustment took 1 minutes and 46 seconds.
#--------------------------------------
#@# MCADura Segmentation Mon Feb 16 12:18:47 AM UTC 2026
mri_mcadura_seg --i /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/nu.mgz --o /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/mca-dura.mgz --threads 1 --synthmorphdir /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm
Mon Feb 16 12:18:51 AM UTC 2026
setenv SUBJECTS_DIR /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output
cd /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri
/opt/freesurfer-8.1.0/bin/mri_mcadura_seg --i /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/nu.mgz --o /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/mca-dura.mgz --threads 1 --synthmorphdir /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm
-rwxr-xr-x 1 nobody nogroup 13384 Jul 19 2025 /opt/freesurfer-8.1.0/bin/mri_mcadura_seg
freesurfer-linux-ubuntu22_x86_64-8.1.0-20250719-f30dfed
$Id$
Linux jupyter-monidoerig 5.15.0-164-generic #174-Ubuntu SMP Fri Nov 14 20:25:16 UTC 2025 x86_64 x86_64 x86_64 GNU/Linux
pid 329182
~/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182 ~/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri
~/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri
mri_vol2vol --reg /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/reg.targ_to_invol.lta --mov /opt/freesurfer-8.1.0/average/mca-dura.prior.warp.mni152.1.0mm.lh.nii.gz --o /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/mcadura.prior.lh.nii.gz
regio_read_register: loading lta
Matrix from regfile:
-1.09389 0.00646 -0.00802 0.80293;
0.00116 -0.35054 1.14657 -43.63174;
-0.01789 -1.00826 -0.29793 -9.37406;
0.00000 0.00000 0.00000 1.00000;
Getting target volume geom from lta destination
movvol /opt/freesurfer-8.1.0/average/mca-dura.prior.warp.mni152.1.0mm.lh.nii.gz
outvol /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/mcadura.prior.lh.nii.gz
regfile /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/reg.targ_to_invol.lta
invert 0
tal 0
talres 2
regheader 0
noresample 0
interp trilinear (1)
precision float (3)
Gdiag_no -1
Synth 0
SynthSeed 1771296704
Final tkRAS-to-tkRAS Matrix is:
-1.09389 0.00646 -0.00802 0.80293;
0.00116 -0.35054 1.14657 -43.63174;
-0.01789 -1.00826 -0.29793 -9.37406;
0.00000 0.00000 0.00000 1.00000;
Vox2Vox Matrix is:
-1.09389 -0.00802 -0.00646 237.56815;
-0.01789 -0.29793 1.00826 35.24152;
-0.00116 -1.14657 -0.35054 244.64642;
0.00000 0.00000 0.00000 1.00000;
Resampling
Output registration matrix is identity
mri_vol2vol done
mri_mask -T .001 -crop-to-fov-mm 80 80 80 /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/nu.mgz /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/mcadura.prior.lh.nii.gz /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/lh.crop.nii.gz
CropToFoVmm 80 80 80
DoAbs = 0
Found 6386 voxels in mask (pct= 0.04)
MRIcropToFoV(): thresh=0.001 FoV = (80,80,80)
nhits=6386 centroid = (164.29,116.584,156.024) min = (136,95,138) max = (184,133,172) delta = (49,39,35)
Region 124 77 116 80 80 80
124 77 116 80 80 80
maskval=0, outval=0
Writing masked volume to /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/lh.crop.nii.gz...done.
mri_vol2vol --regheader --mov /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/nu.mgz --targ /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/lh.crop.nii.gz --o /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/invol.lh.crop.nii.gz
movvol /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/nu.mgz
targvol /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/lh.crop.nii.gz
outvol /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/invol.lh.crop.nii.gz
invert 0
tal 0
talres 2
regheader 1
noresample 0
interp trilinear (1)
precision float (3)
Gdiag_no -1
Synth 0
SynthSeed 1772105130
Computing registration based on scanner-to-scanner
Final tkRAS-to-tkRAS Matrix is:
1.00000 0.00000 0.00000 -35.99999;
0.00000 1.00000 0.00000 28.00000;
0.00000 0.00000 1.00000 11.00000;
0.00000 0.00000 0.00000 1.00000;
Vox2Vox Matrix is:
1.00000 0.00000 0.00000 123.99998;
0.00000 1.00000 0.00000 77.00000;
0.00000 0.00000 1.00000 116.00000;
0.00000 0.00000 0.00000 1.00000;
Resampling
Output registration matrix is identity
mri_vol2vol done
mri_sclimbic_seg --model /opt/freesurfer-8.1.0/models/mca-dura.both-lh.nstd21.fhs.h5 --ctab /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/dumca.lh.ctab --keep_ac --percentile 99.9 --vmp --output-base mcadura --conform --logfile mri_mcadura_seg.log --no-cite-sclimbic --threads 1 --fov 72 --i /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/invol.lh.crop.nii.gz --o /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/seg.lh.mgz
/opt/freesurfer-8.1.0/python/scripts/mri_sclimbic_seg --model /opt/freesurfer-8.1.0/models/mca-dura.both-lh.nstd21.fhs.h5 --ctab /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/dumca.lh.ctab --keep_ac --percentile 99.9 --vmp --output-base mcadura --conform --logfile mri_mcadura_seg.log --no-cite-sclimbic --threads 1 --fov 72 --i /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/invol.lh.crop.nii.gz --o /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/seg.lh.mgz
Keeping anterior commissure in vols and stats
Using CPU
Using 1 thread(s)
Loaded lookup table /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/dumca.lh.ctab
Loaded population stats /opt/freesurfer-8.1.0/models/sclimbic.volstats.csv
nb_labels 2
inshape (72, 72, 72) features 24
(None, 72, 72, 72, 1)
Loading weights from /opt/freesurfer-8.1.0/models/mca-dura.both-lh.nstd21.fhs.h5 -----------------------
Done loading weights -----------------------
Loaded model weights /opt/freesurfer-8.1.0/models/mca-dura.both-lh.nstd21.fhs.h5
Segmenting image 1/1
Loaded input image from /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/invol.lh.crop.nii.gz
1/1 [==============================] - 3s 3s/step
Wrote segmentation to /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/seg.lh.mgz
vmpcma: 4519436
done
mri_vol2vol --regheader --interp nearest --mov /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/seg.lh.mgz --targ /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/nu.mgz --o /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/seg.lh.uncropped.mgz
movvol /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/seg.lh.mgz
targvol /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/nu.mgz
outvol /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/seg.lh.uncropped.mgz
invert 0
tal 0
talres 2
regheader 1
noresample 0
interp nearest (0)
precision float (3)
Gdiag_no -1
Synth 0
SynthSeed 1771324506
Computing registration based on scanner-to-scanner
Final tkRAS-to-tkRAS Matrix is:
1.00000 0.00000 0.00000 35.99999;
0.00000 1.00000 0.00000 -27.99999;
0.00000 0.00000 1.00000 -11.00000;
0.00000 0.00000 0.00000 1.00000;
Vox2Vox Matrix is:
1.00000 0.00000 0.00000 -123.99998;
0.00000 1.00000 0.00000 -76.99999;
0.00000 0.00000 1.00000 -115.99998;
0.00000 0.00000 0.00000 1.00000;
Resampling
Output registration matrix is identity
mri_vol2vol done
mri_vol2vol --reg /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/reg.targ_to_invol.lta --mov /opt/freesurfer-8.1.0/average/mca-dura.prior.warp.mni152.1.0mm.rh.nii.gz --o /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/mcadura.prior.rh.nii.gz
regio_read_register: loading lta
Matrix from regfile:
-1.09389 0.00646 -0.00802 0.80293;
0.00116 -0.35054 1.14657 -43.63174;
-0.01789 -1.00826 -0.29793 -9.37406;
0.00000 0.00000 0.00000 1.00000;
Getting target volume geom from lta destination
movvol /opt/freesurfer-8.1.0/average/mca-dura.prior.warp.mni152.1.0mm.rh.nii.gz
outvol /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/mcadura.prior.rh.nii.gz
regfile /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/transforms/synthmorph.1.0mm.1.0mm/reg.targ_to_invol.lta
invert 0
tal 0
talres 2
regheader 0
noresample 0
interp trilinear (1)
precision float (3)
Gdiag_no -1
Synth 0
SynthSeed 1771832715
Final tkRAS-to-tkRAS Matrix is:
-1.09389 0.00646 -0.00802 0.80293;
0.00116 -0.35054 1.14657 -43.63174;
-0.01789 -1.00826 -0.29793 -9.37406;
0.00000 0.00000 0.00000 1.00000;
Vox2Vox Matrix is:
-1.09389 -0.00802 -0.00646 237.56815;
-0.01789 -0.29793 1.00826 35.24152;
-0.00116 -1.14657 -0.35054 244.64642;
0.00000 0.00000 0.00000 1.00000;
Resampling
Output registration matrix is identity
mri_vol2vol done
mri_mask -T .001 -crop-to-fov-mm 80 80 80 /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/nu.mgz /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/mcadura.prior.rh.nii.gz /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/rh.crop.nii.gz
CropToFoVmm 80 80 80
DoAbs = 0
Found 6789 voxels in mask (pct= 0.04)
MRIcropToFoV(): thresh=0.001 FoV = (80,80,80)
nhits=6789 centroid = (92.2296,116.688,156.08) min = (72,95,138) max = (117,134,175) delta = (46,40,38)
Region 52 77 116 80 80 80
52 77 116 80 80 80
maskval=0, outval=0
Writing masked volume to /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/rh.crop.nii.gz...done.
mri_vol2vol --regheader --mov /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/nu.mgz --targ /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/rh.crop.nii.gz --o /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/invol.rh.crop.nii.gz
movvol /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/nu.mgz
targvol /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/rh.crop.nii.gz
outvol /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/invol.rh.crop.nii.gz
invert 0
tal 0
talres 2
regheader 1
noresample 0
interp trilinear (1)
precision float (3)
Gdiag_no -1
Synth 0
SynthSeed 1771343809
Computing registration based on scanner-to-scanner
Final tkRAS-to-tkRAS Matrix is:
1.00000 0.00000 0.00000 36.00001;
0.00000 1.00000 0.00000 28.00000;
0.00000 0.00000 1.00000 11.00000;
0.00000 0.00000 0.00000 1.00000;
Vox2Vox Matrix is:
1.00000 0.00000 0.00000 51.99999;
0.00000 1.00000 0.00000 77.00000;
0.00000 0.00000 1.00000 116.00000;
0.00000 0.00000 0.00000 1.00000;
Resampling
Output registration matrix is identity
mri_vol2vol done
mri_convert /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/invol.rh.crop.nii.gz --left-right-reverse-pix /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/invol.rh.crop.lrrev.nii.gz
mri_convert /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/invol.rh.crop.nii.gz --left-right-reverse-pix /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/invol.rh.crop.lrrev.nii.gz
reading from /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/invol.rh.crop.nii.gz...
WARNING: applying left-right reversal to the input pixels
without changing geometry. This will likely make
the volume geometry WRONG, so make sure you know what you
are doing.
Reversing pixels for the columns
TR=0.00, TE=0.00, TI=0.00, flip angle=0.00
i_ras = (-1, 0, 0)
j_ras = (0, 0, -1)
k_ras = (0, 1, 0)
writing to /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/invol.rh.crop.lrrev.nii.gz...
mri_sclimbic_seg --model /opt/freesurfer-8.1.0/models/mca-dura.both-lh.nstd21.fhs.h5 --ctab /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/dumca.lh.ctab --keep_ac --percentile 99.9 --vmp --output-base mcadura --conform --logfile mri_mcadura_seg.log --no-cite-sclimbic --threads 1 --fov 72 --i /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/invol.rh.crop.lrrev.nii.gz --o /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/seg.rh.lrrev.mgz
/opt/freesurfer-8.1.0/python/scripts/mri_sclimbic_seg --model /opt/freesurfer-8.1.0/models/mca-dura.both-lh.nstd21.fhs.h5 --ctab /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/dumca.lh.ctab --keep_ac --percentile 99.9 --vmp --output-base mcadura --conform --logfile mri_mcadura_seg.log --no-cite-sclimbic --threads 1 --fov 72 --i /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/invol.rh.crop.lrrev.nii.gz --o /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/seg.rh.lrrev.mgz
Keeping anterior commissure in vols and stats
Using CPU
Using 1 thread(s)
Loaded lookup table /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/dumca.lh.ctab
Loaded population stats /opt/freesurfer-8.1.0/models/sclimbic.volstats.csv
nb_labels 2
inshape (72, 72, 72) features 24
(None, 72, 72, 72, 1)
Loading weights from /opt/freesurfer-8.1.0/models/mca-dura.both-lh.nstd21.fhs.h5 -----------------------
Done loading weights -----------------------
Loaded model weights /opt/freesurfer-8.1.0/models/mca-dura.both-lh.nstd21.fhs.h5
Segmenting image 1/1
Loaded input image from /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/invol.rh.crop.lrrev.nii.gz
1/1 [==============================] - 4s 4s/step
Wrote segmentation to /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/seg.rh.lrrev.mgz
vmpcma: 4520112
done
mri_convert /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/seg.rh.lrrev.mgz /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/seg.rh.mgz --left-right-swap-label-table /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/dumca.lh.index /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/dumca.rh.index --left-right-reverse-pix
mri_convert /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/seg.rh.lrrev.mgz /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/seg.rh.mgz --left-right-swap-label-table /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/dumca.lh.index /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/dumca.rh.index --left-right-reverse-pix
reading from /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/seg.rh.lrrev.mgz...
Performing left-right swap of labels
MRIlrswapSeg(): nswaps 895
WARNING: applying left-right reversal to the input pixels
without changing geometry. This will likely make
the volume geometry WRONG, so make sure you know what you
are doing.
Reversing pixels for the columns
TR=0.00, TE=0.00, TI=0.00, flip angle=0.00
i_ras = (-1, 0, 0)
j_ras = (0, 0, -1)
k_ras = (0, 1, 0)
writing to /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/seg.rh.mgz...
mri_vol2vol --regheader --interp nearest --mov /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/seg.rh.mgz --targ /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/nu.mgz --o /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/seg.rh.uncropped.mgz
movvol /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/seg.rh.mgz
targvol /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/nu.mgz
outvol /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/seg.rh.uncropped.mgz
invert 0
tal 0
talres 2
regheader 1
noresample 0
interp nearest (0)
precision float (3)
Gdiag_no -1
Synth 0
SynthSeed 1771341517
Computing registration based on scanner-to-scanner
Final tkRAS-to-tkRAS Matrix is:
1.00000 0.00000 0.00000 -35.99999;
0.00000 1.00000 0.00000 -27.99999;
0.00000 0.00000 1.00000 -11.00000;
0.00000 0.00000 0.00000 1.00000;
Vox2Vox Matrix is:
1.00000 0.00000 0.00000 -52.00000;
0.00000 1.00000 0.00000 -76.99999;
0.00000 0.00000 1.00000 -115.99998;
0.00000 0.00000 0.00000 1.00000;
Resampling
Output registration matrix is identity
mri_vol2vol done
mri_concat /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/seg.lh.uncropped.mgz /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/tmp.mri_mcadura_seg.329182/seg.rh.uncropped.mgz --sum --ctab /opt/freesurfer-8.1.0/models/mca-dura.ctab --o /home/jovyan/Git_repositories/neurodeskedu/books/examples/structural_imaging/freesurfer-output/subjectname/mri/mca-dura.mgz
ninputs = 2
Checking inputs
nframestot = 2
Allocing output
threshold mask volume at 0.001
threshold mask volume at 0.001
!ls ./freesurfer-output/subjectname/mri
T1.mgz entowm.mgz ribbon.mgz
antsdn.brain.mgz filled.auto.mgz segment.dat
aparc+aseg.mgz filled.mgz surface.defects.mgz
aparc.DKTatlas+aseg.mgz lh.ribbon.mgz synthseg.rca.mgz
aparc.a2009s+aseg.mgz mca-dura.mgz synthstrip.mgz
aseg.auto.mgz mri_nu_correct.mni.log talairach.log
aseg.auto_noCCseg.mgz mrisps.white.mgz tmp
aseg.mgz mrisps.wpa.mgz transforms
aseg.presurf.hypos.mgz norm.mgz vsinus.log
aseg.presurf.mgz nu.mgz vsinus.mgz
brain.finalsurfs.manedit.mgz orig wm.asegedit.mgz
brain.finalsurfs.mgz orig.mgz wm.mgz
brain.mgz rawavg.mgz wm.seg.mgz
brainmask.mgz rawavg2orig.lta wmparc.mgz
ctrl_pts.mgz rh.ribbon.mgz
!ls ./freesurfer-output/subjectname/surf
autodet.gw.stats.lh.dat lh.smoothwm.K1.crv rh.inflated.nofix
autodet.gw.stats.rh.dat lh.smoothwm.K2.crv rh.jacobian_white
lh.area lh.smoothwm.S.crv rh.orig
lh.area.mid lh.smoothwm.nofix rh.orig.nofix
lh.area.pial lh.sphere rh.orig.premesh
lh.avg_curv lh.sphere.reg rh.pial
lh.curv lh.sulc rh.pial.T1
lh.curv.pial lh.thickness rh.qsphere.nofix
lh.defect_borders lh.volume rh.smoothwm
lh.defect_chull lh.w-g.pct.mgh rh.smoothwm.BE.crv
lh.defect_labels lh.white rh.smoothwm.C.crv
lh.defects.pointset lh.white.H rh.smoothwm.FI.crv
lh.fsaverage.sphere.reg lh.white.K rh.smoothwm.H.crv
lh.inflated lh.white.preaparc rh.smoothwm.K.crv
lh.inflated.H lh.white.preaparc.H rh.smoothwm.K1.crv
lh.inflated.K lh.white.preaparc.K rh.smoothwm.K2.crv
lh.inflated.nofix rh.area rh.smoothwm.S.crv
lh.jacobian_white rh.area.mid rh.smoothwm.nofix
lh.orig rh.area.pial rh.sphere
lh.orig.nofix rh.avg_curv rh.sphere.reg
lh.orig.premesh rh.curv rh.sulc
lh.pial rh.curv.pial rh.thickness
lh.pial.T1 rh.defect_borders rh.volume
lh.qsphere.nofix rh.defect_chull rh.w-g.pct.mgh
lh.smoothwm rh.defect_labels rh.white
lh.smoothwm.BE.crv rh.defects.pointset rh.white.H
lh.smoothwm.C.crv rh.fsaverage.sphere.reg rh.white.K
lh.smoothwm.FI.crv rh.inflated rh.white.preaparc
lh.smoothwm.H.crv rh.inflated.H rh.white.preaparc.H
lh.smoothwm.K.crv rh.inflated.K rh.white.preaparc.K
Results#
from ipyniivue import NiiVue
nv = NiiVue(crosshair_color=[0,1,0,1])
nv.load_volumes([{"path": "./freesurfer-output/subjectname/mri/orig.mgz"},
{"path": "./freesurfer-output/subjectname/mri/aseg.mgz"}])
nv

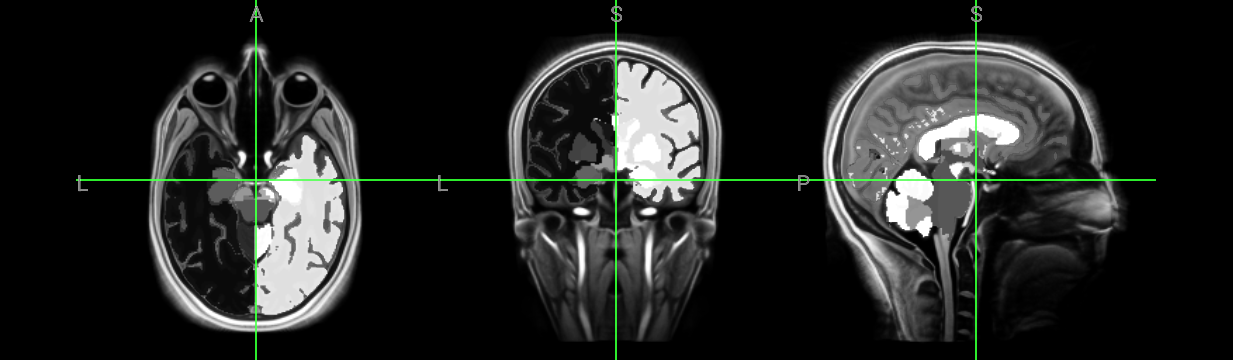

Dependencies in Jupyter/Python#
Using the package watermark to document system environment and software versions used in this notebook
%load_ext watermark
%watermark
%watermark --iversions
Last updated: 2026-02-16T03:08:04.105186+00:00
Python implementation: CPython
Python version : 3.13.9
IPython version : 9.7.0
Compiler : GCC 14.3.0
OS : Linux
Release : 5.15.0-164-generic
Machine : x86_64
Processor : x86_64
CPU cores : 32
Architecture: 64bit
ipyniivue: 2.4.4
