AFNI Preprocessing and GLM#
Author: Monika Doerig
Date: 1 May 2025
License:
Note: If this notebook uses neuroimaging tools from Neurocontainers, those tools retain their original licenses. Please see Neurodesk citation guidelines for details.
Citation and Resources:#
Tools included in this workflow#
AFNI
Cox RW (1996). AFNI: software for analysis and visualization of functional magnetic resonance neuroimages. Comput Biomed Res 29(3):162-173. doi:10.1006/cbmr.1996.0014
RW Cox, JS Hyde (1997). Software tools for analysis and visualization of FMRI Data. NMR in Biomedicine, 10: 171-178. https://pubmed.ncbi.nlm.nih.gov/9430344/
Educational Resources#
Andy’s Brain Book:
This AFNI example is based on the AFNI Tutorial: Statistics and Modeling from Andy’s Brain Book (Jahn, 2022. doi:10.5281/zenodo.5879293)
Dataset#
Flanker Dataset from OpenNeuro:
Kelly AMC and Uddin LQ and Biswal BB and Castellanos FX and Milham MP (2018). Flanker task (event-related). OpenNeuro Dataset ds000102. [Dataset] doi: null
Kelly AM, Uddin LQ, Biswal BB, Castellanos FX, Milham MP. Competition between functional brain networks mediates behavioral variability. Neuroimage. 2008 Jan 1;39(1):527-37. doi: 10.1016/j.neuroimage.2007.08.008. Epub 2007 Aug 23. PMID: 17919929.
Mennes, M., Kelly, C., Zuo, X.N., Di Martino, A., Biswal, B.B., Castellanos, F.X., Milham, M.P. (2010). Inter-individual differences in resting-state functional connectivity predict task-induced BOLD activity. Neuroimage, 50(4):1690-701. doi: 10.1016/j.neuroimage.2010.01.002. Epub 2010 Jan 15. Erratum in: Neuroimage. 2011 Mar 1;55(1):434
Mennes, M., Zuo, X.N., Kelly, C., Di Martino, A., Zang, Y.F., Biswal, B., Castellanos, F.X., Milham, M.P. (2011). Linking inter-individual differences in neural activation and behavior to intrinsic brain dynamics. Neuroimage, 54(4):2950-9. doi: 10.1016/j.neuroimage.2010.10.046
Introduction#
First Level fMRI Analysis with AFNI: Preprocessing and GLM#
Building on the preprocessing pipeline introduced in the Preprocessing with AFNI notebook, this notebook extends the workflow to include a General Linear Model (GLM) for modelling task-related brain activity. The GLM is a core method in fMRI analysis that estimates the brain’s response to experimental conditions by fitting a model to the observed signal. We again work with subject sub-08 from the DS000102 Flanker task dataset.
By the end of this notebook, you will be able to:
Add a GLM (regress block) to an
afni_proc.pypreprocessing pipelineUnderstand how timing files and HRF modelling work in AFNI

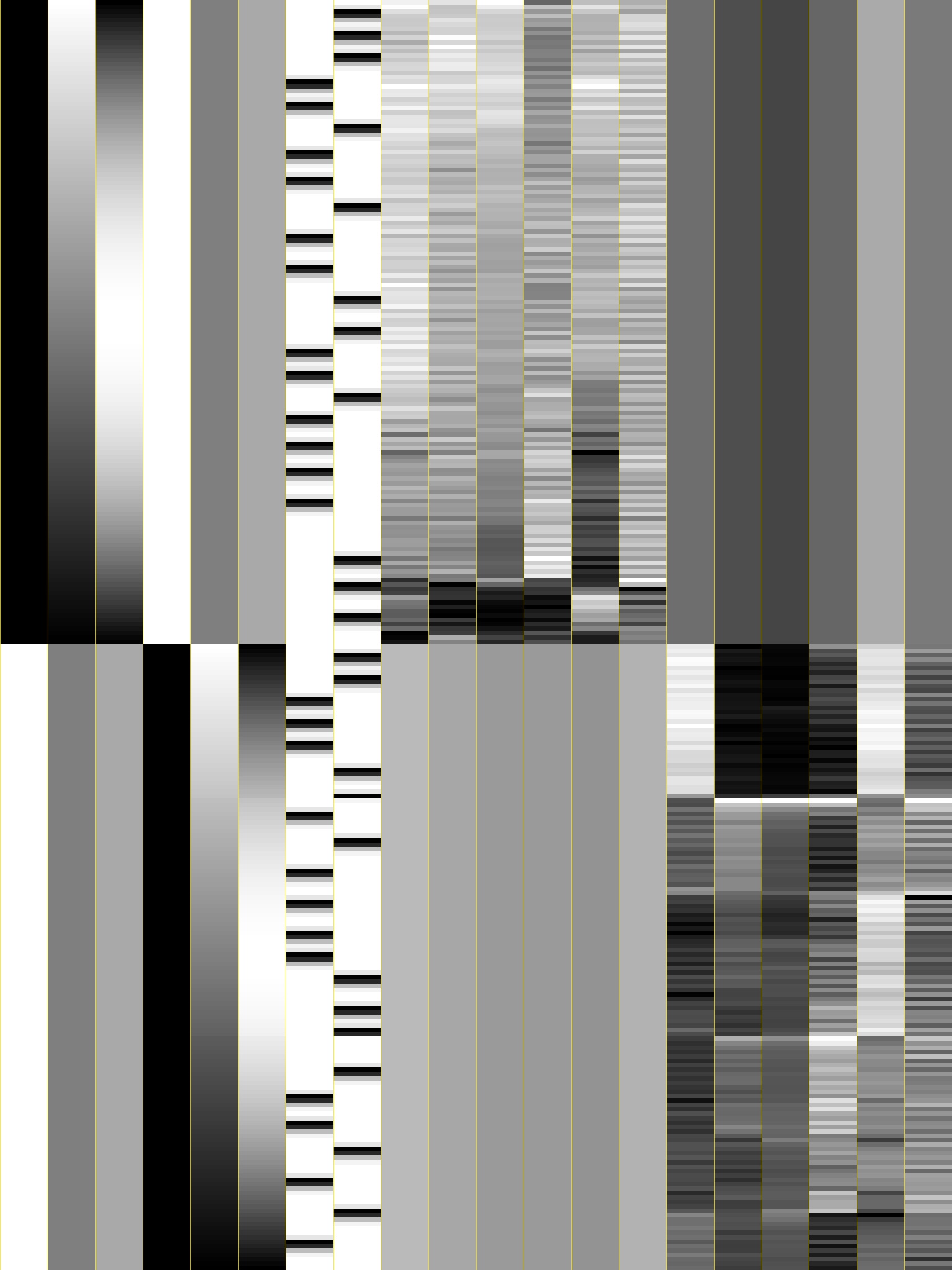

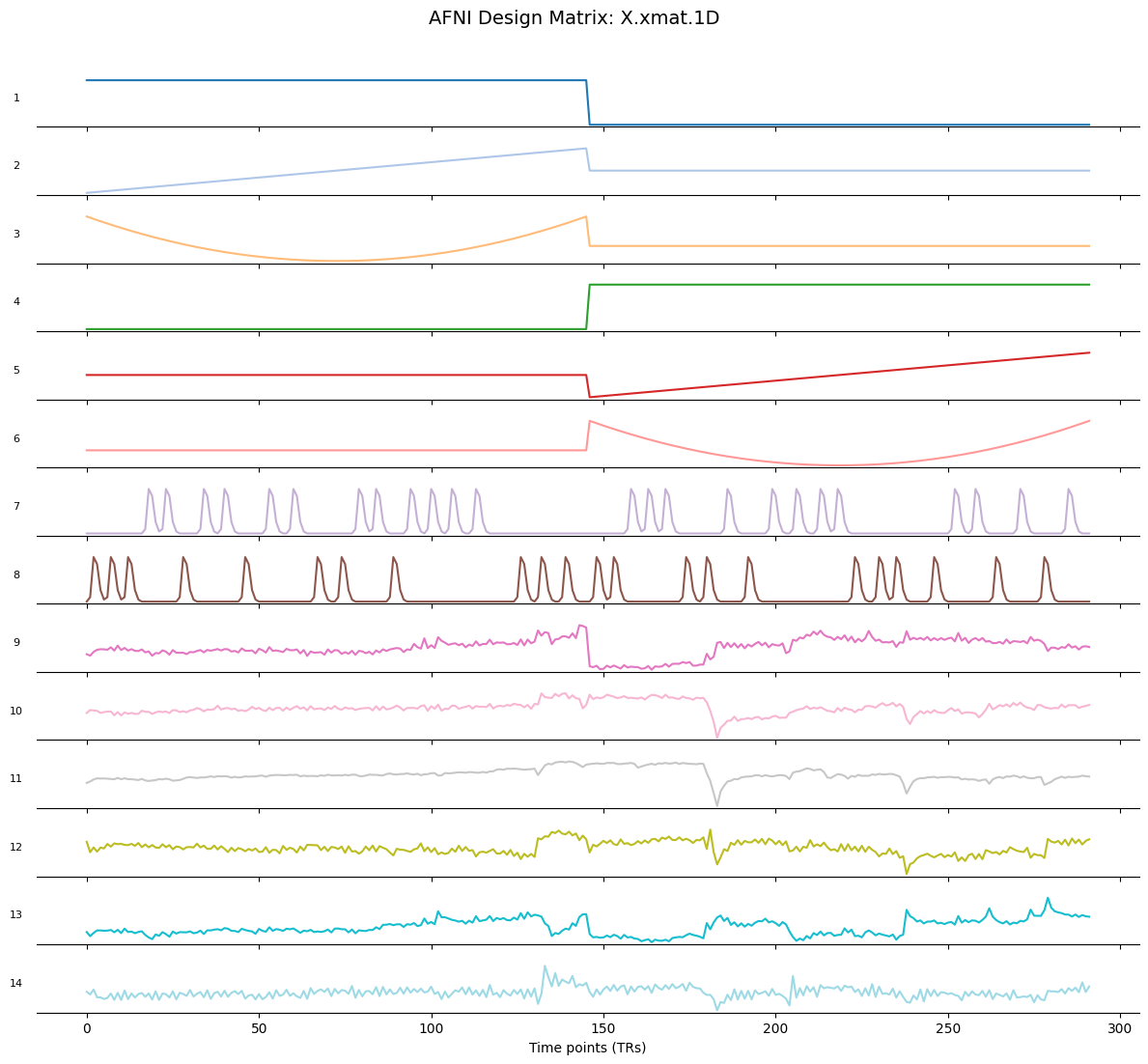

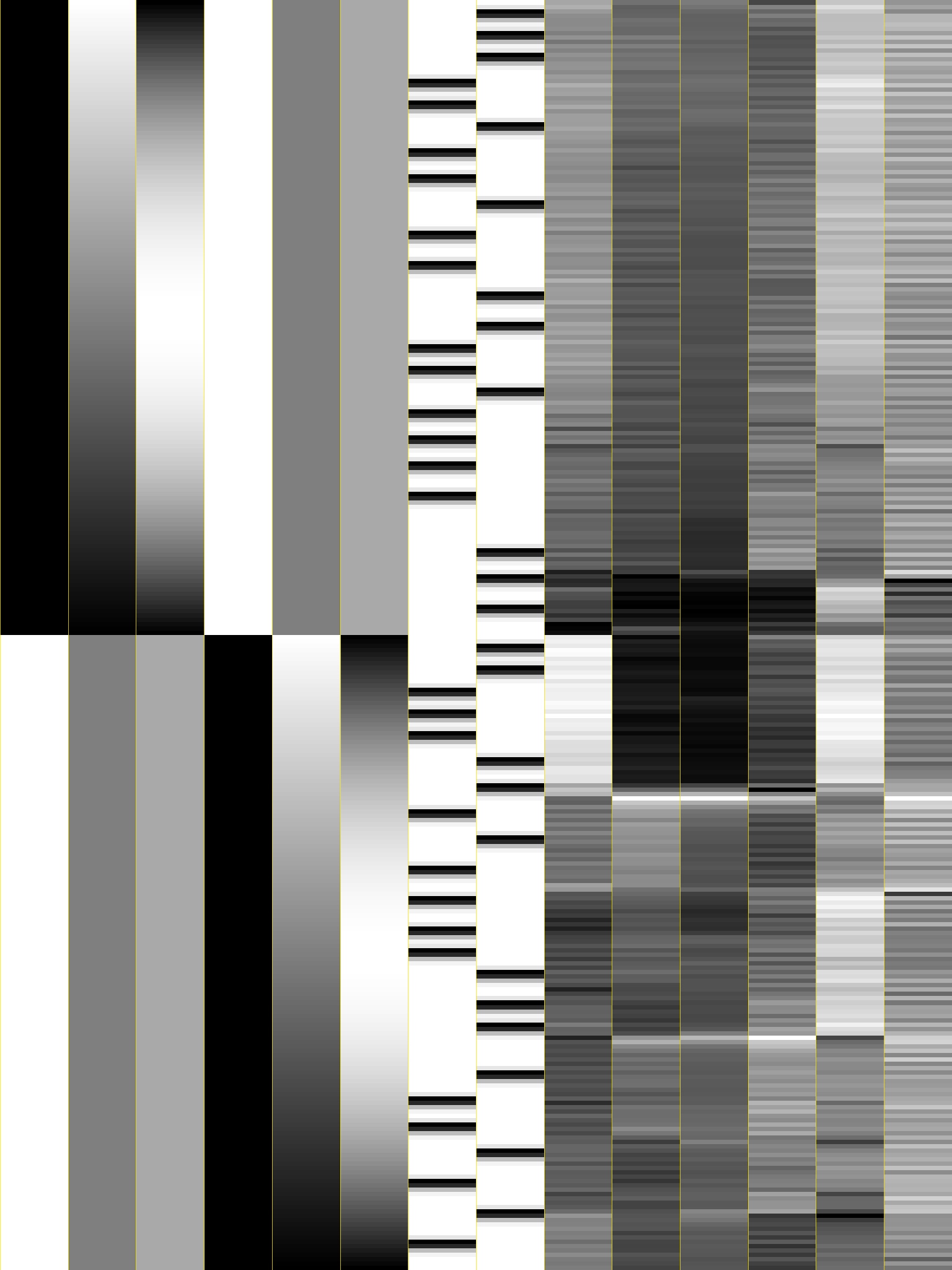

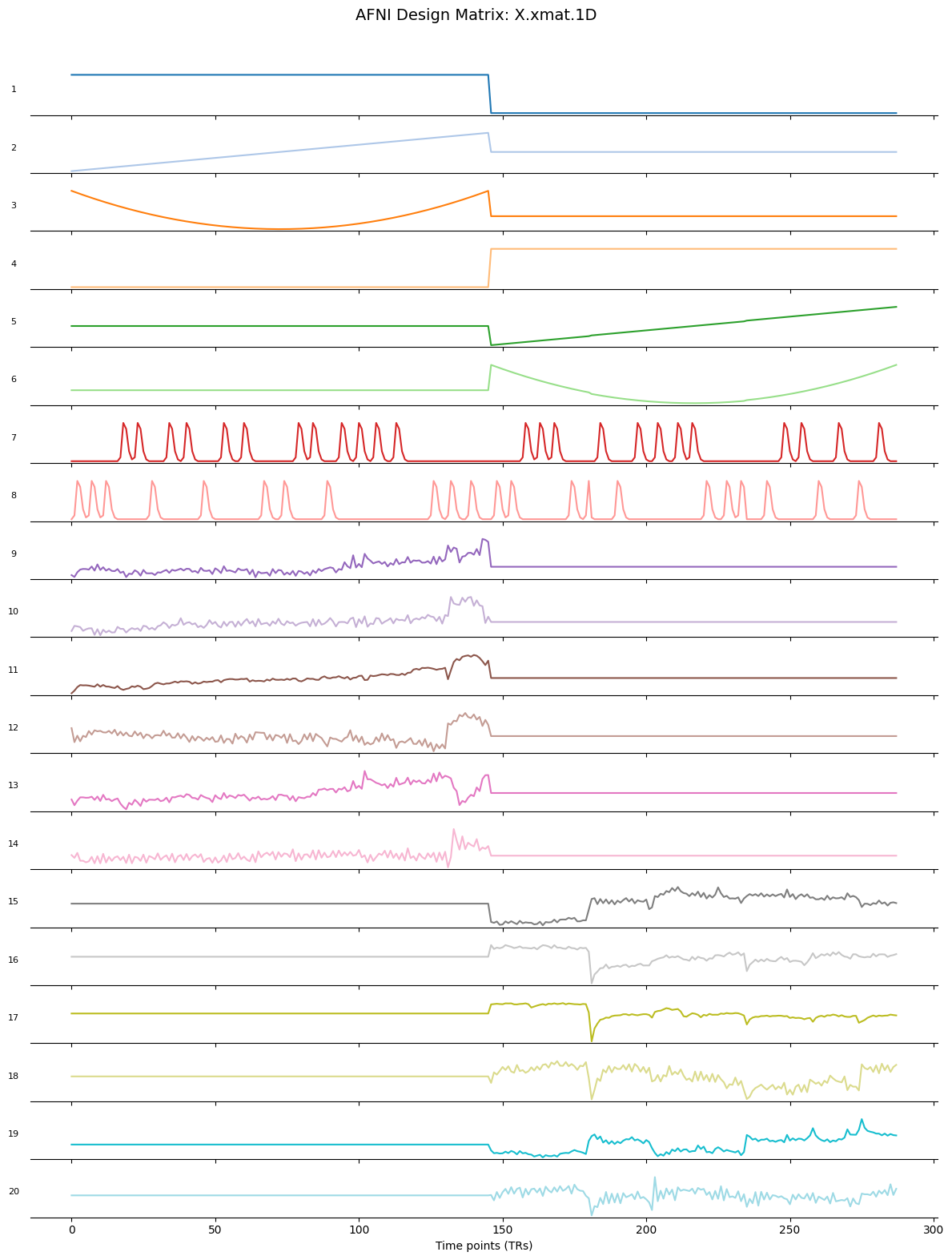

Inspect and interpret the GLM design matrix

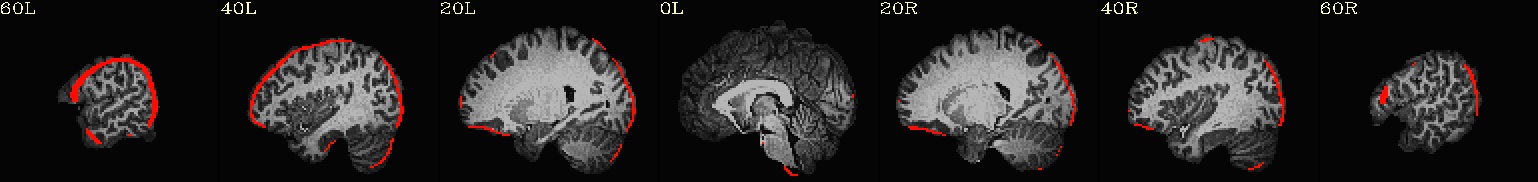

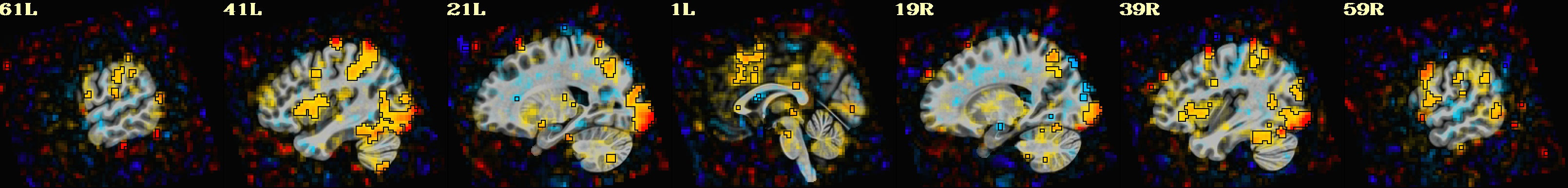

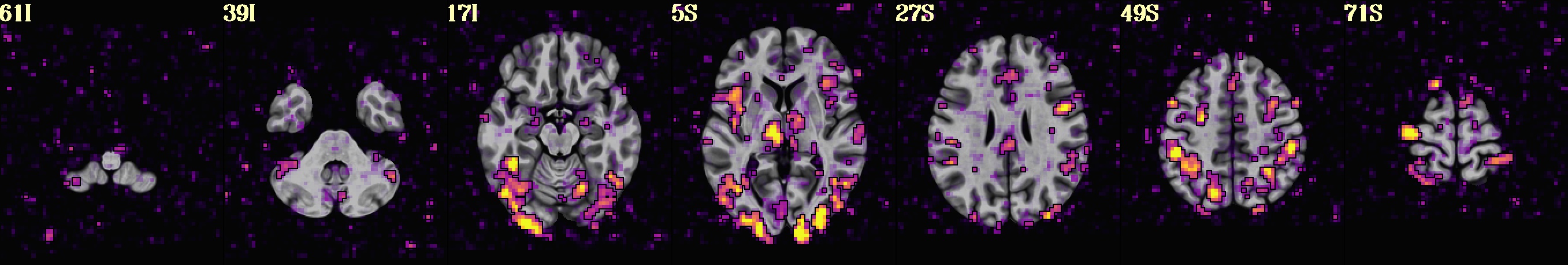

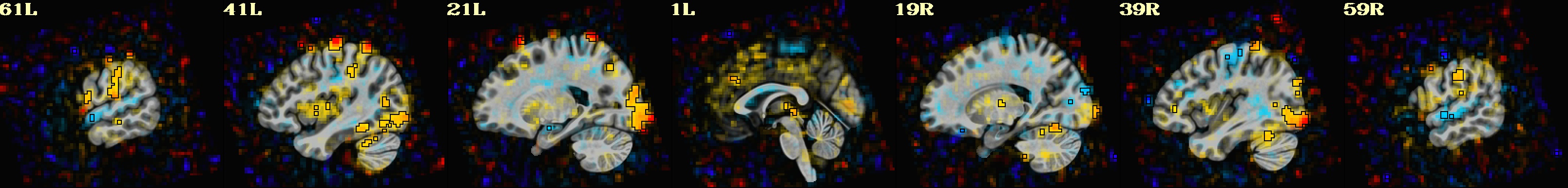

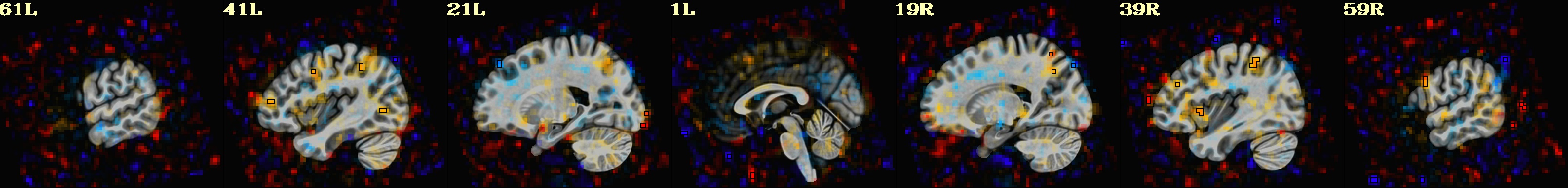

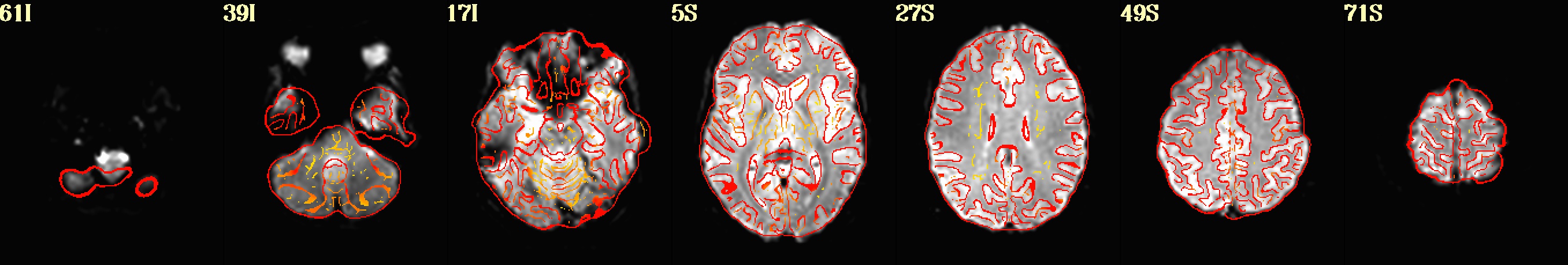

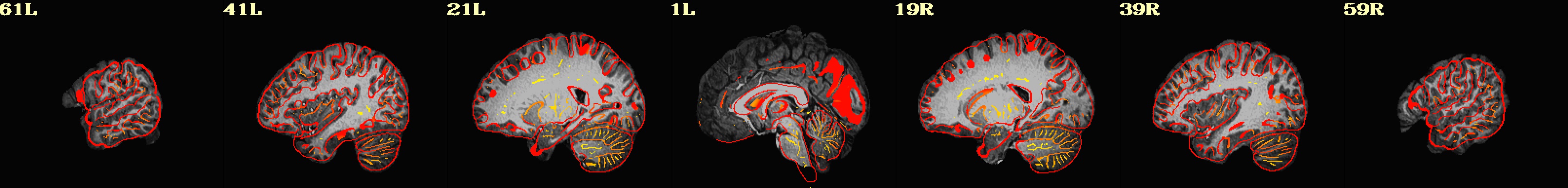

Use AFNI’s automated quality control outputs to assess preprocessing success

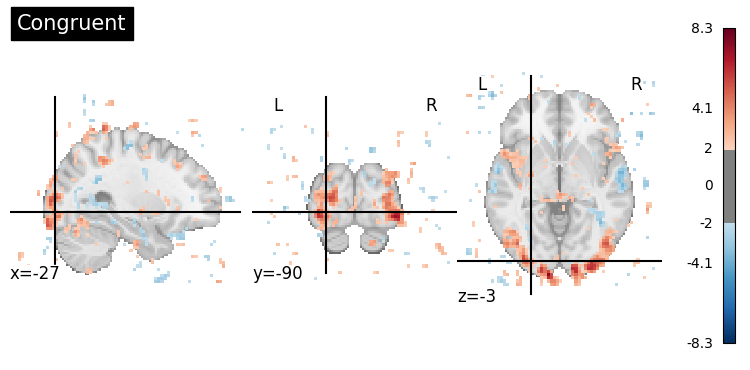

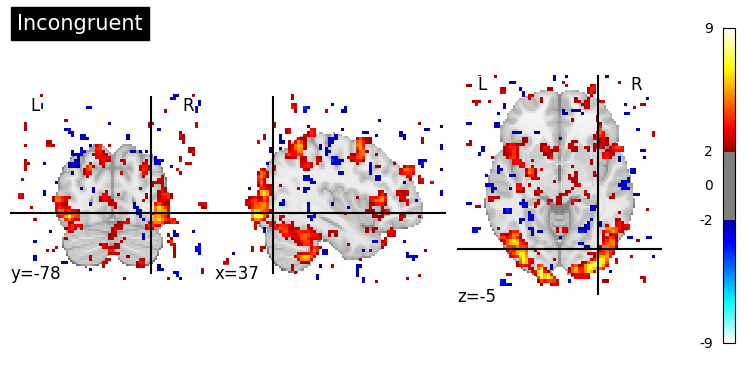

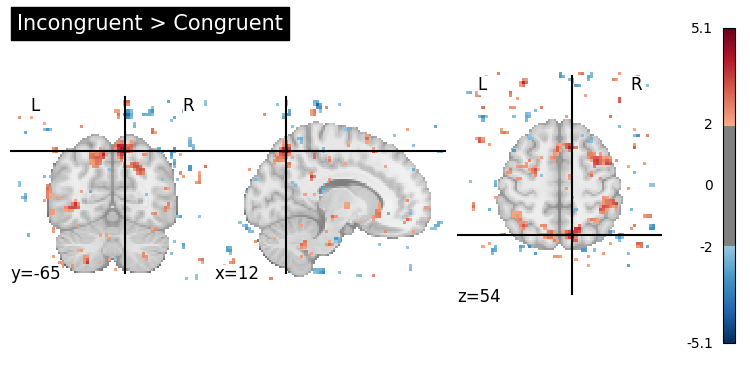

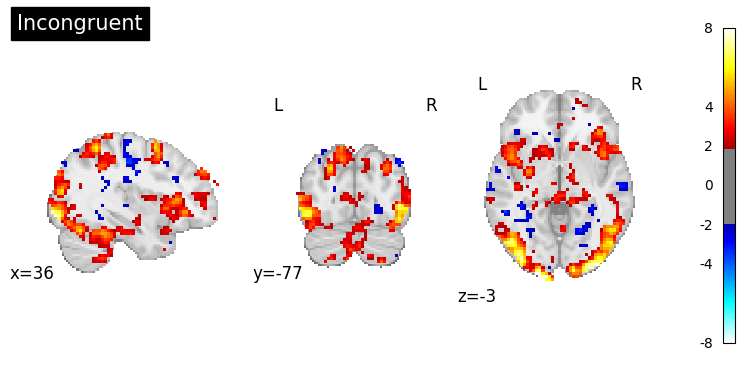

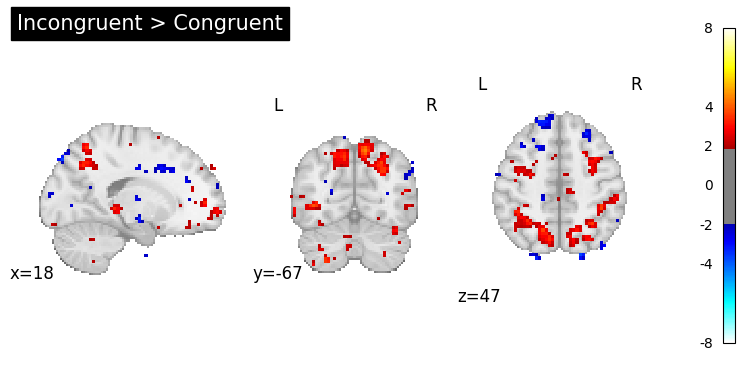

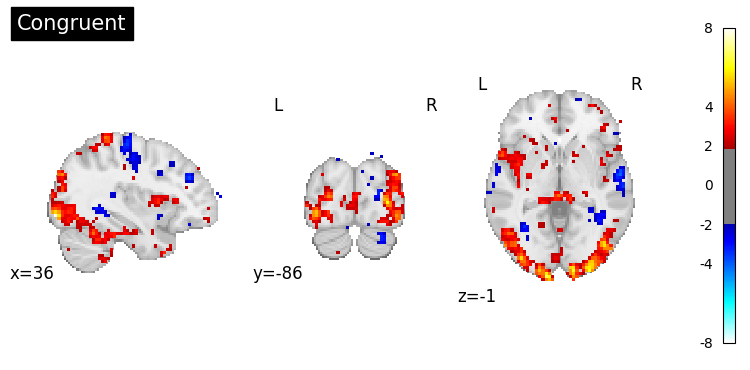

Visualise first-level statistical maps using Nilearn
Load AFNI#
import module
await module.load('afni/25.2.03')
await module.list()
['afni/25.2.03']
Import Python Modules#
%%capture
!pip install nibabel numpy nilearn scipy
import os
import nibabel as nib
import numpy as np
import matplotlib.pyplot as plt
import matplotlib
from IPython.display import display, Image
from nilearn import plotting
from nilearn.image import math_img
from scipy.stats import t
Data download#
PATTERN = "sub-08"
!datalad install https://github.com/OpenNeuroDatasets/ds000102.git
!cd ds000102 && datalad get $PATTERN
