MR Spectroscopy with LCModel#

Analyzing MR Spectra from Rat Hippocampus#

Author: Monika Doerig

Citation and Resources:#

Tools included in this workflow#

LCModel:

Python:

Ghostscript:

Dataset#

  • Dunja Simicic, & Cristina Cudalbu. (2020). MR Spectra from rat hippocampus with LCModel quantification and the corresponding basis set [Data set]. In Magn Reson Med (Version Part1, Bd. 86, Nummer 5, S. 2384–2401). Zenodo. https://doi.org/10.5281/zenodo.3904443

  • Simicic, D., Rackayova, V., Xin, L., Tkáč, I., Borbath, T., Starcuk, Z., Jr, Starcukova, J., Lanz, B., & Cudalbu, C. (2021). In vivo macromolecule signals in rat brain 1 H-MR spectra at 9.4T: Parametrization, spline baseline estimation, and T2 relaxation times. Magnetic resonance in medicine, 86(5), 2384–2401. https://doi.org/10.1002/mrm.28910

Check CPU vendor and model for compatibility or performance considerations#

!cat /proc/cpuinfo | grep 'vendor' | uniq
!cat /proc/cpuinfo | grep 'model name' | uniq
vendor_id	: GenuineIntel
model name	: Intel(R) Xeon(R) Gold 6126 CPU @ 2.60GHz

Load software tools and import python libraries#

import module
await module.load('lcmodel/6.3')
await module.list()
['lcmodel/6.3']
%%capture
!pip install nibabel numpy

The command below updates the package list and installs Ghostscript, which provides the ps2pdf utility for converting LCModel’s .ps output into a PDF, as well as tools to convert the .ps file into PNG images for easier inline viewing in notebooks and web pages.

!sudo apt update -qq && sudo apt install ghostscript -y -qq
252 packages can be upgraded. Run 'apt list --upgradable' to see them.
ghostscript is already the newest version (9.55.0~dfsg1-0ubuntu5.12).
0 upgraded, 0 newly installed, 0 to remove and 252 not upgraded.
# Import the necessary libraries
import matplotlib.pyplot as plt
import os
import subprocess
from pathlib import Path
import nibabel as nib
import numpy as np
from IPython.display import IFrame, Image, display
import re
import glob

Introduction#

This example demonstrates the processing of MR spectra acquired from the rat hippocampus using LCModel, a standard tool for automatic quantification of magnetic resonance spectroscopy (MRS) data.

The example Varian-format MRS dataset is processed with LCModel to quantify metabolite concentrations. Both the example data and the corresponding basis set are provided within the Neurodesk LCModel container.

Accurate quantification of MRS data requires precise preprocessing and configuration. This example illustrates the complete workflow, from raw data conversion through LCModel setup and execution to output visualization. The pipeline consists of the following steps:

Pipeline:

  • The example dataset and basis set paths are programmatically identified within the LCModel container.

  • File existence checks ensure that required data and basis files are available.

  • The Varian FID file is converted to the raw format compatible with LCModel.

  • Visualization of raw time-domain data is performed to assess signal quality.

  • Acquisition parameters are extracted to generate the LCModel control file.

  • The control file is created with appropriate settings referencing the data and basis files.

  • LCModel analysis is executed via command line.

  • Resulting postscript (.ps) files are converted to PDF and PNG formats for easy review and sharing.

🧾 Glossary of Common Terms and Abbreviations

This tutorial involves several domain-specific terms and file formats commonly used in MR spectroscopy and LCModel workflows. Below is a brief overview of key abbreviations and concepts to help you get started.

📚 For full technical details, refer to the LCModel manual.

Software & File Formats#

Term

Meaning

LCModel

A widely used software package for automatic quantification of in vivo proton MR spectra.

LCMgui

The graphical user interface for LCModel (optional; not used in this notebook-based workflow).

FID

Free Induction Decay — the raw time-domain MRS data typically acquired from Varian, Bruker, Siemens, or GE scanners.

.RAW

LCModel-compatible input file containing unprocessed FID data in a specific ASCII format. Should not be windowed or smoothed.

.CONTROL

Text file that defines the analysis settings and parameters for LCModel (e.g., file paths, echo time, frequency).

.BASIS

A file containing simulated model spectra for known metabolites at specific TE/TR/field strength. Used by LCModel to fit your data.

.PS

Optional PostScript output of LCModel’s One-Page summary, including spectra and fitted results.

extraInfo

A helper file generated by bin2raw with basic scan metadata (e.g., hzpppm, echot).

cpStart

Another helper file from bin2raw, containing default parameters that could populate a .CONTROL file

                                |

Key Control Parameters#

Parameter

Description

TITLE

Descriptive title of the scan (will appear on output).

FILRAW

Path to the .RAW file with time-domain data.

FILBAS

Path to the .BASIS file used to fit the spectrum.

FILPS

Path to the output .PS file with the report.

HZPPPM

Spectrometer frequency in MHz (e.g., 123.25).

DELTAT

Dwell time (s), i.e., 1 / sampling frequency.

NUNFIL

Number of complex points in the FID.

ECHOT

Echo time (TE) in milliseconds.

DOECC

Whether eddy current correction is applied (1 = yes, 0 = no).

WCONC

Water concentration (used for absolute quantification).

Data conversion tools#

Tool

Description

bin2raw

LCModel utility to convert Varian-format data (FID + procpar) into a .RAW file. Outputs cpStart, extraInfo, and optionally an error log.

bin2asc

Dependency used internally by bin2raw for reading Varian binary formats.

Get example data from the container#

This section locates and verifies access to the example dataset bundled inside the LCModel container. It:

  • Retrieves the path to the lcmodel executable to infer the container base directory.

  • Constructs full paths to the example Varian fid file and BASIS set directory located within the container.

  • Uses glob to select the .BASIS file (expects exactly one).

  • Verifies that the fid file and .BASIS file exist and prints their status and raises an error if any are missing.

# ===  Get path to lcmodel executable
lcmodel_path = subprocess.check_output("which lcmodel", shell=True, text=True).strip()

# === Extract container base and image path
container_base = os.path.dirname(lcmodel_path)  # e.g., .../lcmodel_6.3_20220222
container_id = os.path.basename(container_base)  # e.g., lcmodel_6.3_20220222
simg_path = os.path.join(container_base, f"{container_id}.simg")

# ===  Construct dataset paths inside
fid_path = os.path.join(
    simg_path,
    "opt/datasets/Spectra_hippocampus(rat)_TE02/s_20131015_03_BDL106_scan0/isise_01.fid/fid"
)
basis_path = os.path.join(
    simg_path,
    "opt/datasets/Spectra_hippocampus(rat)_TE02/Control_files_Basis_set"
)
# Get single BASIS file (will raise error if not exactly one)
basis_files = glob.glob(os.path.join(basis_path, "*.BASIS"))
basis_file = basis_files[0]


# === Check existence of the paths
fid_exists = Path(fid_path).exists()
basis_dir_exists = Path(basis_path).exists()
basis_file_exists = Path(basis_file).exists()

# === Report status
print(f"FID path:          {fid_path}")
print(f"BASIS file:        {basis_file}")
print(f"FID exists?        {'✅' if fid_exists else '❌'}")
print(f"BASIS dir exists?  {'✅' if basis_dir_exists else '❌'}")
print(f"BASIS file exists?  {'✅' if basis_file_exists else '❌'}")

# Raise error or fallback if paths missing
if not fid_exists or not basis_file_exists:
    raise FileNotFoundError("One or more required dataset paths could not be found.")
FID path:          /cvmfs/neurodesk.ardc.edu.au/containers/lcmodel_6.3_20220222/lcmodel_6.3_20220222.simg/opt/datasets/Spectra_hippocampus(rat)_TE02/s_20131015_03_BDL106_scan0/isise_01.fid/fid
BASIS file:        /cvmfs/neurodesk.ardc.edu.au/containers/lcmodel_6.3_20220222/lcmodel_6.3_20220222.simg/opt/datasets/Spectra_hippocampus(rat)_TE02/Control_files_Basis_set/9T_TE02_smallTMS_simulated-apoL0,2Hz-apoG1,8Hz_MM-ourMM_newGrad750_allRemoved.BASIS
FID exists?        ✅
BASIS dir exists?  ✅
BASIS file exists?  ✅

Set up LCModel configuration files#

This script sets up the LCModel environment by copying the hidden .lcmodel directory (containing all required binaries and configuration files) into your home folder. If the .lcmodel directory already exists, the script normally prompts whether to overwrite it — however, in a notebook environment, this prompt is not interactive. To avoid errors, the script can be conditionally run only if .lcmodel does not already exist.

if not os.path.exists(os.path.expanduser("~/.lcmodel")):
    !setup_lcmodel.sh
else:
    print("~/.lcmodel already exists — skipping setup.")
~/.lcmodel already exists — skipping setup.

Convert Varian FID file to LCModel-compatible .RAW format#

This step uses the bin2raw utility provided by LCModel to convert a Varian-format FID dataset and its associated procpar file into a .RAW file suitable for spectral fitting in LCModel. In addition to the .RAW file, two auxiliary files are generated: cpStart and extraInfo. These are typically used by LCMgui to autofill settings, but in this notebook-based workflow, we’ll manually extract relevant parameters from extraInfo and .RAW to generate a custom control (.CONTROL) file for LCModel.

Details & Requirements for bin2raw:

  • The FID file must be named fid, with the corresponding procpar file in the same directory.

  • bin2raw assumes a voxel volume of 1.0, so water-scaling will only be accurate if the suppressed and unsuppressed water scans were acquired with identical voxel sizes.

  • bin2raw depends on a helper binary bin2asc, both of which must be located in ~/.lcmodel/varian/.

Check if the required binaries are present:

! ls $HOME/.lcmodel/varian
bin2asc  bin2raw  preprocessors

Run bin2raw to convert the Varian fid file into an LCModel .RAW file.

📁 Output:

This command creates the following files inside ./lcmodel_outputs/raw/:

  • .RAW: The converted LCModel-compatible spectral data.

  • cpStart: Text file containing scan parameters and file paths.

  • extraInfo: Text file providing only a subset of the scan metadata.

  • error: A plain text log file capturing any issues or warnings during conversion. It’s a good idea to check this file automatically after conversion to confirm success.

%%bash -s "$fid_path"

# Exit immediately if a command fails
set -e

# Input: path to directory containing 'fid' and 'procpar'
DATA_FILE="$1"

# Output directory for LCModel-compatible files
LCM_DIR="./lcmodel_outputs/"
MET_H2O="raw" #Subdirectory for the water scan or metabolite

# Create output directory if it doesn't exist
mkdir -p "${LCM_DIR}${MET_H2O}"

# Run the bin2raw conversion
$HOME/.lcmodel/varian/bin2raw $DATA_FILE $LCM_DIR $MET_H2O

Visualizing the RAW FID data from the RAW file#

The following code loads and visualizes the raw time-domain data from the .RAW file. This file contains the input data for a single rat from the Simicic and Cudalbu (2020) dataset. According to the study’s methods, the data were acquired using a single-voxel SPECIAL sequence in the rat hippocampus, with sequence timing parameters TE = 2.8 ms and TR = 4 s. The full experiment involved collecting 160 individual acquisitions (transients) to ensure a high signal-to-noise ratio.

In MRS, a transient refers to one individual acquisition of the free induction decay (FID) signal following an excitation pulse. Multiple transients are collected and typically averaged to improve data quality.

Our plot displays a subset of this data. As will be confirmed in the next step, when we extract the acquisition parameters, the file contains the first 10 of these transients, each composed of 4096 complex data points. Each large spike in the plot marks the beginning of one of these 10 transients, corresponding to the strong initial FID signal immediately following the excitation pulse.

# Load data from RAW for plotting
def load_raw_data(filename):
    """
    Parses an LCModel .RAW file to extract real and imaginary parts of the FID signal.

    The .RAW file has the following structure:
    - Two NAMELIST header blocks: $SEQPAR and $NMID
    - Each ends with a line containing only '$END'
    - Time-domain FID data follows immediately after the second $END
    - The FID is stored as alternating real and imaginary float values

    Parameters
    ----------
    filename : str
        Path to the .RAW file.

    Returns
    -------
    real : np.ndarray
        Real components of the FID.
    imag : np.ndarray
        Imaginary components of the FID.
    """
    with open(filename, 'r') as f:
        lines = f.readlines()

    # Skip past the two header blocks ($SEQPAR and $NMID)
    end_count = 0
    data_start = 0
    for i, line in enumerate(lines):
        if line.strip() == '$END':
            end_count += 1
            if end_count == 2:
                # Data begins immediately after the second $END
                data_start = i + 1
                break

    data_vals = []
    # Read all lines after the second $END
    # Each line should contain exactly two float values: real and imaginary parts
    for line in lines[data_start:]:
        parts = line.strip().split()
        if len(parts) == 2:
            # Convert both parts to floats and add to the data list
            data_vals.extend([float(x) for x in parts])

    # Separate interleaved real and imaginary values
    real = np.array(data_vals[0::2])  # Even indices → real part
    imag = np.array(data_vals[1::2])  # Odd indices → imaginary part
    return real, imag


real, imag = load_raw_data("./lcmodel_outputs/raw/RAW")

# Create the x-axis based on the number of FID points
data_points = np.arange(len(real))

#  Plot the data
plt.figure(figsize=(12, 6))

plt.plot(data_points, imag, label='Imaginary', color='red', linestyle='--')
plt.plot(data_points, real, label='Real', color='blue')

plt.title("Raw Free Induction Decay (FID) Signal from LCModel .RAW File")
plt.xlabel("Data Point Index")
plt.ylabel("Signal Amplitude")
plt.legend()
plt.grid(True)
plt.show()

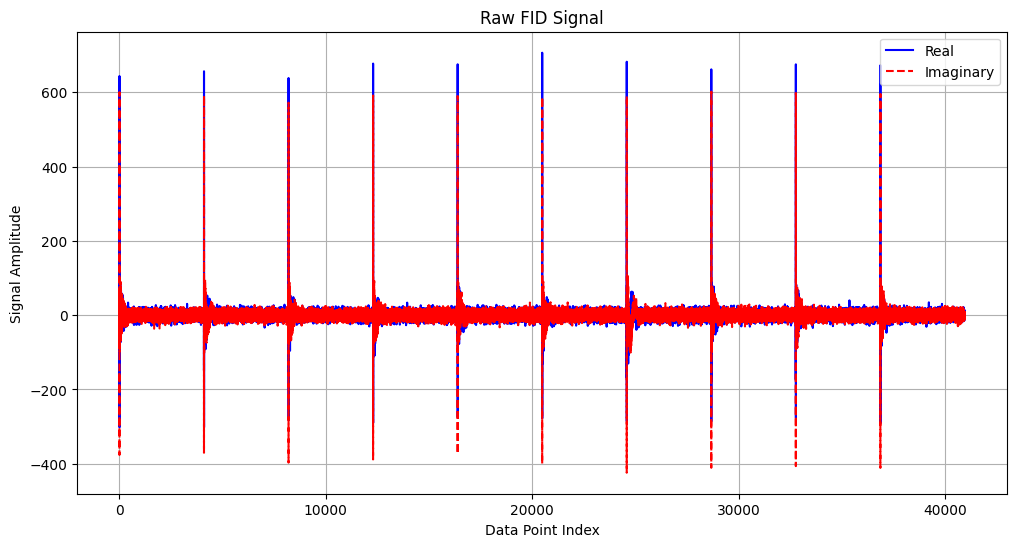

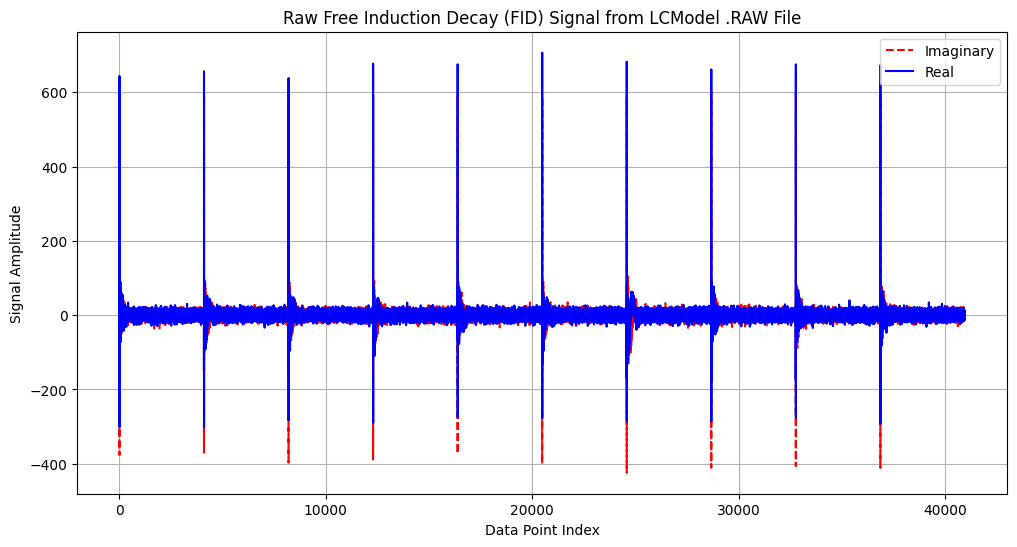

../_images/6a8315982bb8c1c57f227de3e8687407e7676adce53e2100f7e6f6fd2f895b82.png

Raw Free Induction Decay (FID) Signal:

This plot shows the unprocessed time-domain MR spectroscopy signal extracted from the .RAW file. The real (blue) and imaginary (red dashed) components represent the complex-valued FID acquired after excitation, before any frequency or phase correction. Visual inspection of the FID can help identify noise, artifacts, or unexpected decay behavior prior to Fourier transformation and spectral fitting.

Extracting parameters to generate the control file#

As noted earlier, the bin2raw conversion produces auxiliary files such as cpStart and embeds a $SEQPAR block in the .RAW file. These contain key acquisition and sequence parameters needed to generate the LCModel control file. In this step, we extract those parameters by parsing both cpStart and the $SEQPAR block from the RAW file. The parsed values are merged into a single dictionary, with $SEQPAR values overriding cpStart in case of overlap. This consolidated parameter set will be used to programmatically construct the .CONTROL file for LCModel.

def parse_cpstart_file(filepath):
    params = {}
    with open(filepath, 'r') as f:
        for line in f:
            line = line.strip()
            if not line or '=' not in line:
                continue
            key, val = line.split('=', 1)
            key = key.strip()
            val = val.strip().strip("'")
            try:
                if '.' in val or 'e' in val.lower():
                    val = float(val)
                else:
                    val = int(val)
            except ValueError:
                pass
            params[key] = val
    return params

def parse_raw_seqpar(filepath):
    params = {}
    seqpar_block = False
    with open(filepath, 'r') as f:
        for line in f:
            line = line.strip()
            if line.startswith('$SEQPAR'):
                seqpar_block = True
                continue
            if line.startswith('$END') and seqpar_block:
                break
            if seqpar_block:
                # example line: hzpppm=400.268
                if '=' in line:
                    key, val = line.split('=', 1)
                    key = key.strip()
                    val = val.strip()
                    try:
                        if '.' in val or 'e' in val.lower():
                            val = float(val)
                        else:
                            val = int(val)
                    except ValueError:
                        val = val.strip("'")
                    params[key] = val
    return params

# Paths to cpStart and RAW
cpstart_path = "./lcmodel_outputs/raw/cpStart"
raw_path = "./lcmodel_outputs/raw/RAW"

# Parse both
cpstart_params = parse_cpstart_file(cpstart_path)
seqpar_params = parse_raw_seqpar(raw_path)

# Merge dictionaries, seqpar overrides cpstart if keys overlap
all_params = {**cpstart_params, **seqpar_params}
print(all_params)
{'title': 's_20131015_03  (2013/10/15 22:28:27)  isise  TE/TR/NS=3/4000/16', 'filraw': './lcmodel_outputs/raw/RAW', 'filps': './lcmodel_outputs/ps', 'hzpppm': 400.268, 'deltat': 0.0002, 'nunfil': 4096, 'ndcols': 1, 'ndrows': 10, 'ndslic': 1, 'echot': 3.0}

Write and run the control file#

With all required acquisition parameters parsed from the .RAW and cpStart files, we now generate the LCModel control file programmatically. This file defines the input data (.RAW), output locations (e.g., .TABLE, .PS, .CSV, .COORD), basis set, and sequence-specific parameters such as spectral width or echo time. The control file is written to disk using the write_lcmodel_control() function. Finally, LCModel is executed by piping the control file into the lcmodel command-line tool, launching the spectral fitting and quantification process.

Note: LCModel is now a free software, but still requires a license key for execution. The key = 210387309 is a universal license key provided by the developer for non-commercial academic use. It must be included in the LCModel control file (typically under the key parameter).
For details, see: http://s-provencher.com/lcmodel.shtml
# Define file paths for LCModel output organization

# Base directory for all output results
res_dir = "./lcmodel_outputs/results"
# Create the results directory if it doesn't exist yet
os.makedirs(res_dir, exist_ok=True)

# Define file paths within results directory
table_path = os.path.join(res_dir, "table") # Tabular data outputs
csv_path = os.path.join(res_dir, "csv") # CSV exports
coord_path = os.path.join(res_dir,"coord") # Coordinate-related outputs
ps_path = os.path.join(res_dir,"ps") # Postscript (.ps) output files
def write_lcmodel_control(control_path,
                          raw_path,
                          srcraw,
                          basis_path,
                          ps_path,
                          table_path,
                          csv_path,
                          coord_path,
                          title,
                          nunfil,
                          ndslic,
                          ndrows,
                          ndcols,
                          hzpppm,
                          echot,
                          deltat,
                          irowst,
                          irowen,
                          icolst,
                          icolen,
                          ppmst=4.0,
                          ppmend=0.2,
                          ltable=7,
                          lps=8,
                          lcsv=11,
                          lcoord=9,
                          islice=1,
                          key=210387309 # free license key
                         ):
    """
    Writes a formatted control file for an LCModel analysis.

    This function generates the .CONTROL file that LCModel uses as its primary
    input, specifying all file paths, acquisition parameters, and analysis options.

    Parameters:
        Required:
            control_path (str): Output path for the CONTROL file
            raw_path (str): Path to the .RAW file that LCModel will analyze
            srcraw (str): Path to original FID file (for reference)
            basis_path (str): Path to BASIS file containing the metabolite basis spectra
            ps_path (str): Output path for PS file
            table_path (str): Output path for TABLE file
            csv_path (str): Output path for CSV file
            coord_path (str): Output path for COORD file
            title (str): Title of the scan
            nunfil (int):  Number of complex data points per FID transient
            ndslic (int): Number of slices in the data (usually 1 for Single Voxel Spectroscopy)
            ndrows (int): Number of rows (transients) in the .RAW file (automatically extracted from the FID conversion metadata)
            ndcols (int): Number of columns (usually 1 for SVS)
            hzpppm (float): Spectrometer frequency (MHz)
            echot (float): Echo time (TE) in ms
            deltat (float): Time between points (dwell time) in seconds
            irowst (int), irowen (int): Start/end row for analysis
            icolst (int), icolen (int): Start/end column for analysis

        Optional:
            ppmst (float): Upper limit of ppm window (default: 4.0)
            ppmend (float): Lower limit of ppm window (default: 0.2)
            islice (int): Slice to analyze (default: 1)
            ltable (int), lps (int), lcsv (int), lcoord (int): Output switches to generate output files
            islice (int): Slice to analyze (default: 1)
            key (int): Free License key (hard coded)
    """
    content = f""" $LCMODL
 title= '{title}'
 srcraw= '{srcraw}'
 ppmst= {ppmst}
 ppmend= {ppmend}
 nunfil= {nunfil}
 ndslic= {ndslic}
 ndrows= {ndrows}
 ndcols= {ndcols}
 ltable= {ltable}
 lps= {lps}
 islice= {islice}
 irowst= {irowst}
 irowen= {irowen}
 icolst= {icolst}
 icolen= {icolen}
 hzpppm= {hzpppm}
 filtab= '{table_path}'
 filraw= '{raw_path}'
 filps= '{ps_path}'
 filbas= '{basis_path}'
 echot= {echot}
 deltat= {deltat}
 key= {key}
 lcsv= {lcsv}
 filcsv= '{csv_path}'
 lcoord= {lcoord}
 filcoo= '{coord_path}'
 $END
"""
    with open(control_path, "w", encoding="ascii") as f:
        f.write(content)
    print(f"✅ CONTROL file written to {control_path}")
write_lcmodel_control(
    control_path='./lcmodel_outputs/control',
    raw_path=raw_path,
    srcraw=fid_path,
    basis_path=basis_file,
    ps_path=ps_path,
    table_path=table_path,
    csv_path=csv_path,
    coord_path=coord_path,
    title=all_params.get('title', 'Default Title'),
    ppmst=4.0,                                  # Left edge of ppm window
    ppmend=0.2,                                 # Right edge of ppm window
    nunfil=all_params['nunfil'],
    ndslic=all_params['ndslic'],
    ndrows=all_params['ndrows'],                #ndrows set automatically from cpStart metadata to reflect number of transients in .RAW file
    ndcols=all_params['ndcols'],
    ltable=7,                                   #will create filtab
    lps=8,                                      #will create filps
    irowst=1,                                   #default - selecting row 1 through irowen for preview and analysis
    irowen=all_params['ndrows'],
    icolst=1,                                   #default - selecting columns 1 through icolen for preview an analysis
    icolen=all_params['ndcols'],
    hzpppm=all_params['hzpppm'],
    echot=all_params['echot'],
    deltat=all_params['deltat'],
    lcsv=11,                                    #will make filcsv
    lcoord=9,                                   #will make filcoo
)
✅ CONTROL file written to ./lcmodel_outputs/control

Run lcmodel#

The following command runs the LCModel software by feeding it the control file via standard input. This control file contains all necessary parameters and file references that LCModel needs to perform the spectral quantification analysis.

Note: Because the data contains multiple transients, LCModel generates separate output files for each transient, enabling detailed per-transient analysis.

!lcmodel < ./lcmodel_outputs/control

Results#

Exporting LCModel Output to PDF and PNG Formats#

LCModel outputs PostScript (.ps) files summarizing the spectral fit results, which can be converted to other formats like PDF or to PNG images for easier viewing and sharing. Converting to PDF using ps2pdf preserves the vector graphics and multipage layout, making it suitable for high-quality printing and detailed inspection.

#convert .ps to .pdf
!ps2pdf ./lcmodel_outputs/results/sl1_1-1.ps ./lcmodel_outputs/results/sl1_1-1.pdf

Alternatively, converting the .ps to PNG images with Ghostscript (gs) produces raster images (one per page) that are easy to display inline in notebooks and web pages without requiring PDF viewers.

The following gs command converts a multi-page PostScript (.ps) file into one or more high-resolution PNG images — one image per page.

Explanation of options:

Option

Description

-dSAFER

Runs Ghostscript in safe mode, restricting file access for security.

-dBATCH

Tells Ghostscript to exit after processing is complete.

-dNOPAUSE

Disables pausing between pages — needed for automated or batch conversion.

-dAutoRotatePages=/None

Prevents Ghostscript from automatically rotating pages based on their orientation.

-sDEVICE=png16m

Sets the output format to PNG with 24-bit color (8 bits per RGB channel).

-r300

Sets the resolution of the output images to 300 DPI (high quality).

-dFirstPage=1

Starts processing from page 1. You can also add -dLastPage=N to limit how many pages are processed.

-sOutputFile=./lcmodel_outputs/results/sl1_1-1_page_%d.png

Specifies the output filename pattern. The %d is a placeholder for the page number (e.g., page_1.png, page_2.png).

-c "<</Orientation 1>> setpagedevice"

Forces portrait orientation for all output pages.

-f ./lcmodel_outputs/results/sl1_1-1.ps

Specifies the input PostScript file to convert.

#convert .ps to 2 png images
!gs -dSAFER -dBATCH -dNOPAUSE -dAutoRotatePages=/None \
    -sDEVICE=png16m -r300 \
    -dFirstPage=1 \
    -sOutputFile=./lcmodel_outputs/results/sl1_1-1_page_%d.png \
    -c "<</Orientation 1>> setpagedevice" \
    -f ./lcmodel_outputs/results/sl1_1-1.ps
GPL Ghostscript 9.55.0 (2021-09-27)
Copyright (C) 2021 Artifex Software, Inc.  All rights reserved.
This software is supplied under the GNU AGPLv3 and comes with NO WARRANTY:
see the file COPYING for details.
Loading NimbusSans-Regular font from /usr/share/ghostscript/9.55.0/Resource/Font/NimbusSans-Regular... 4466276 2919749 2017472 704520 1 done.
Loading NimbusSans-Italic font from /usr/share/ghostscript/9.55.0/Resource/Font/NimbusSans-Italic... 4532388 3109010 2037672 717907 1 done.
Loading NimbusMonoPS-Bold font from /usr/share/ghostscript/9.55.0/Resource/Font/NimbusMonoPS-Bold... 4719700 3356826 2118472 774025 1 done.
Loading NimbusMonoPS-Regular font from /usr/share/ghostscript/9.55.0/Resource/Font/NimbusMonoPS-Regular... 4967612 3596618 2118472 777832 1 done.
# display the to png images (two pdf pages)
for i in range(1, 2 + 1):
    display(Image(filename=f"./lcmodel_outputs/results/sl1_1-1_page_{i}.png"))

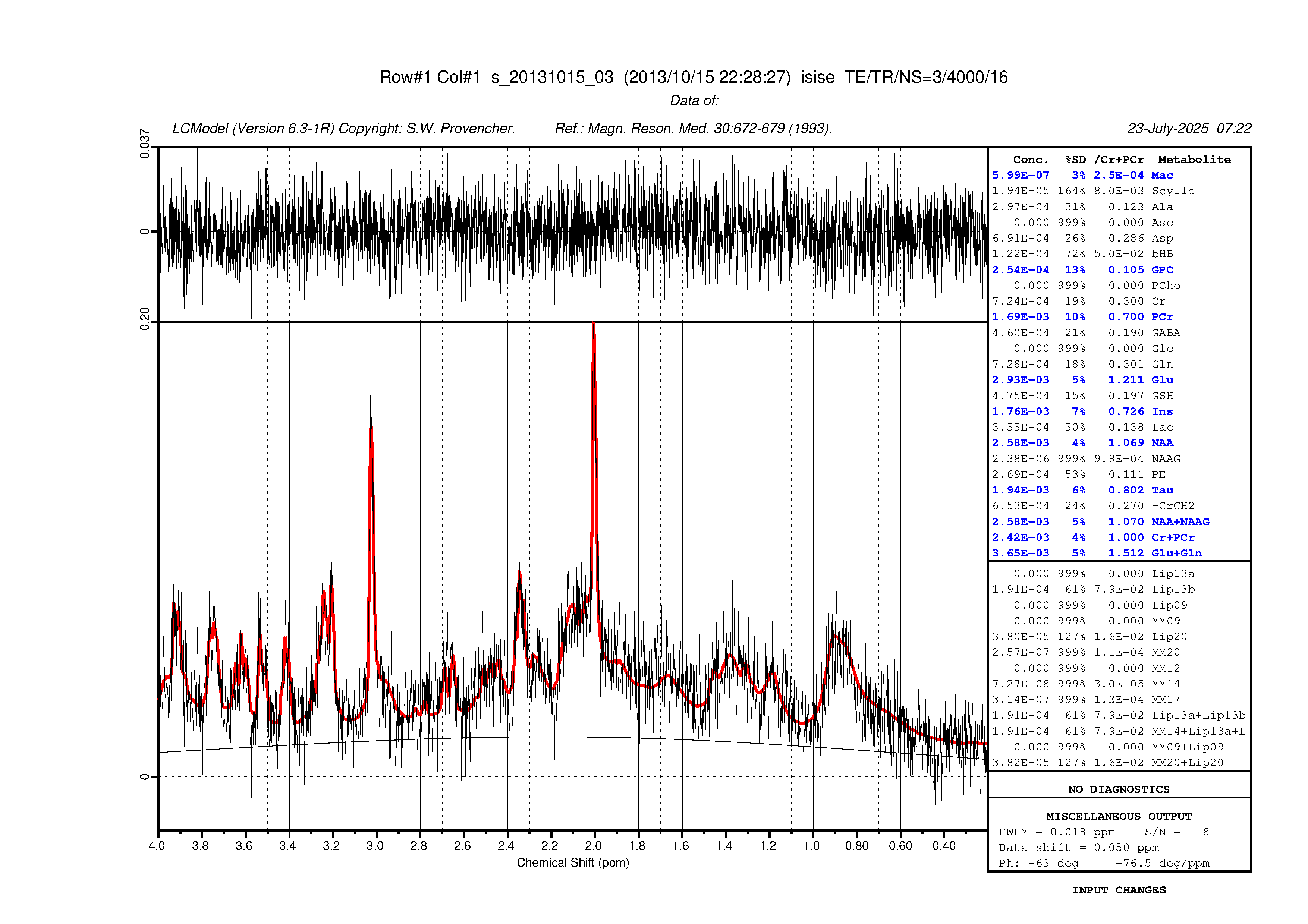

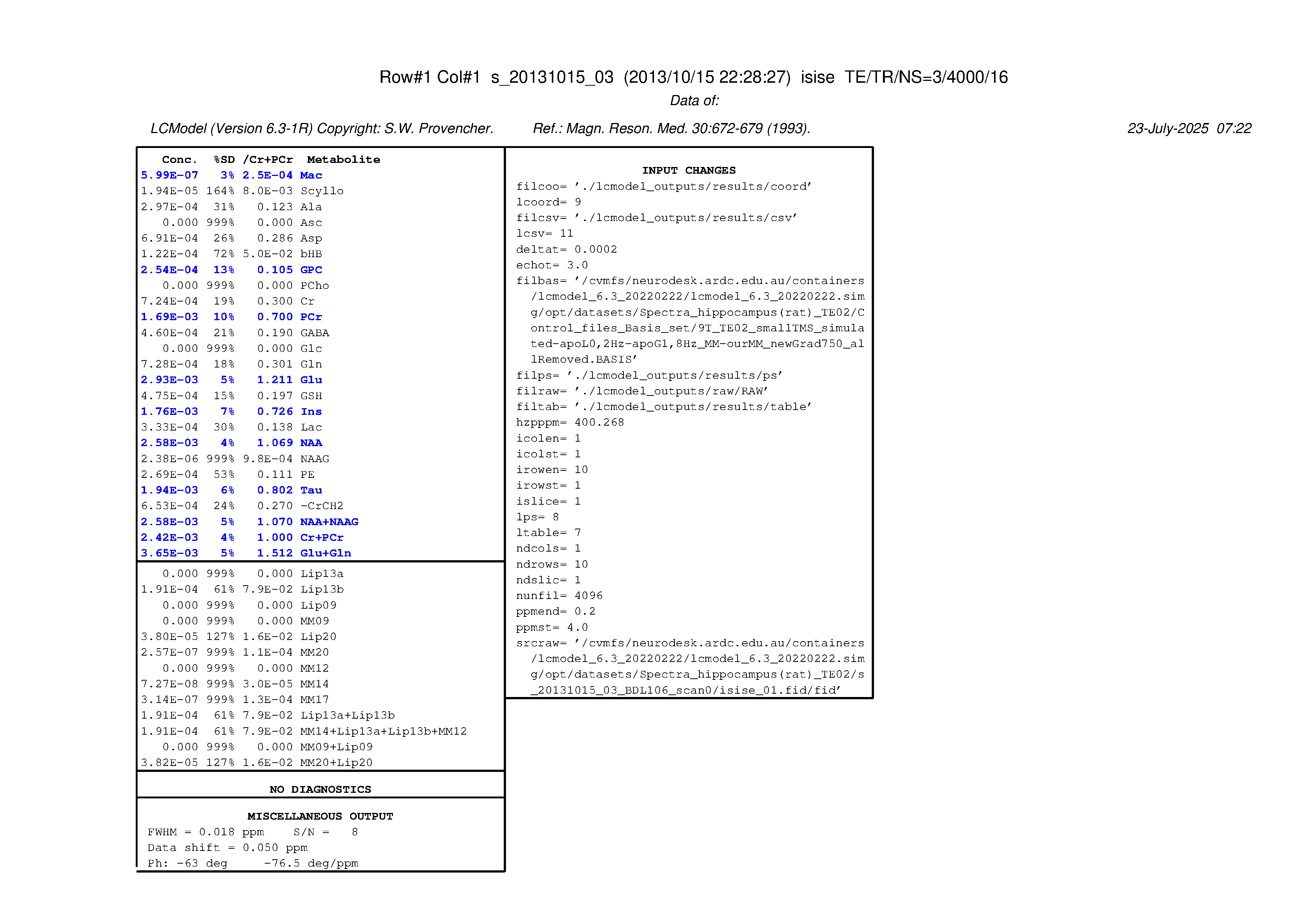

../_images/043ac6743b5ff13af4bb0a6bd592301855524e435f0f020f582ca5edfb664033.png ../_images/417fcdb9db12db541a71cde89555bb4c723c0e18c13f9a0eb05bf8fd71379300.png

Note on PDF viewing: PDFs can be displayed directly within Jupyter notebooks using IFrame, but this only works in interactive environments (local Jupyter, Colab, etc.). When viewing this notebook on GitHub Pages, the PDFs won’t render due to security restrictions.

# This works in Jupyter but not on GitHub Pages
IFrame("./lcmodel_outputs/results/sl1_1-1.pdf", width=1000, height=800)

#

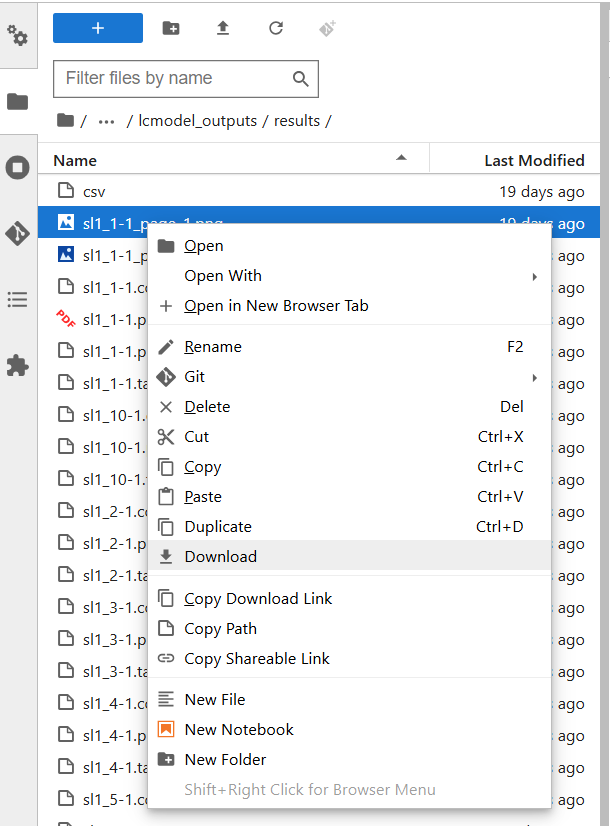

💡 Helpful Hint: To download the output PNGs or PDFs, open the file browser in the JupyterLab interface, navigate to the output directory (e.g., ./lcmodel_outputs/results/), right-click the desired file, and select Download.
Image(url='https://raw.githubusercontent.com/NeuroDesk/example-notebooks/refs/heads/main/books/images/download_png.png')
