Nipype-SPM fMRI Analysis

Subject and Group Level Analysis Workflows¶

Author: Monika Doerig

Date: 13 June 2024

License:

Note: If this notebook uses neuroimaging tools from Neurocontainers, those tools retain their original licenses. Please see Neurodesk citation guidelines for details.

Citation and Resources:¶

Tools included in this workflow¶

Nipype:

Esteban, O., Markiewicz, C. J., Burns, C., Goncalves, M., Jarecka, D., Ziegler, E., Berleant, S., Ellis, D. G., Pinsard, B., Madison, C., Waskom, M., Notter, M. P., Clark, D., Manhães-Savio, A., Clark, D., Jordan, K., Dayan, M., Halchenko, Y. O., Loney, F., … Ghosh, S. (2025). nipy/nipype: 1.8.6 (1.8.6). Zenodo. Esteban et al. (2025)

SPM12:

Friston, K. J. (2007). Statistical parametric mapping: The analysis of functional brain images (1st ed). Elsevier / Academic Press.
Online Book

Dataset¶

Wakeman, DG and Henson, RN (2021). Multisubject, multimodal face processing. OpenNeuro. [Dataset] doi: 10.18112/openneuro.ds000117.v1.0.5
Wakeman, D.G. & Henson, R.N. (2015). A multi-subject, multi-modal human neuroimaging dataset. Sci. Data 2:150001 doi: 10.1038/sdata.2015.1

Educational resources:¶

Introduction¶

The fMRI dataset used for this example is part of a multi-subject, multi-modal (sMRI, fMRI, MEG, EEG) neuroimaging dataset on face processing. It contains data in BIDS format on sixteen healthy volunteers. The data was recoreded while the volunteers performed multiple runs of hundreds of trials of a simple perceptual task on pictures of familiar, unfamiliar and scrambled faces during two visits to the laboratory.

The facial stimuli consisted of two groups of 300 greyscale photos, half of which were of famous people and half of which were of non-famous people (unknown to the participants). Each scrambled face was created either from the famous face or the non-famous face of the same stimulus number. Additionally, each image was presented twice to the participants. The second presentation occurred either immediately after the first presentation (Immediate Repeats) or after 5–15 intervening stimuli (Delayed Repeats), with 50% of each type of repeat. To ensure that each stimulus received equal attention, participants were instructed to use their left or right index finger to press one of two keys (assignment counter-balanced across participants). They determined the symmetry of each image by pressing a key based on whether they perceived it to be ‘more’ or ‘less symmetric’ than average.

In the original paper (Wakeman & Henson, 2015), the repetition manipulation was not distinguished, meaning that initial and repeated presentations were treated identically without considering the timing of the repeats.

To illustrate the setup of a 3x2 factorial design analysis (familiar vs. unfamiliar vs. scrambled faces) x (1st vs. 2nd presentation) in an SPM Nipype workflow, the event files will be adapted accordingly. Each stimulus type will be labeled as either the first or second presentation. However, for simplicity, no distinction is made between immediate and delayed repetitions, resulting in 6 stimulus types (conditions): Familiar-Rep1 (F1), Familiar-Rep2 (F2), Unfamiliar-Rep1 (U1), Unfamiliar-Rep2 (U2), Scrambled-Rep1 (S1), and Scrambled-Rep2 (S2).

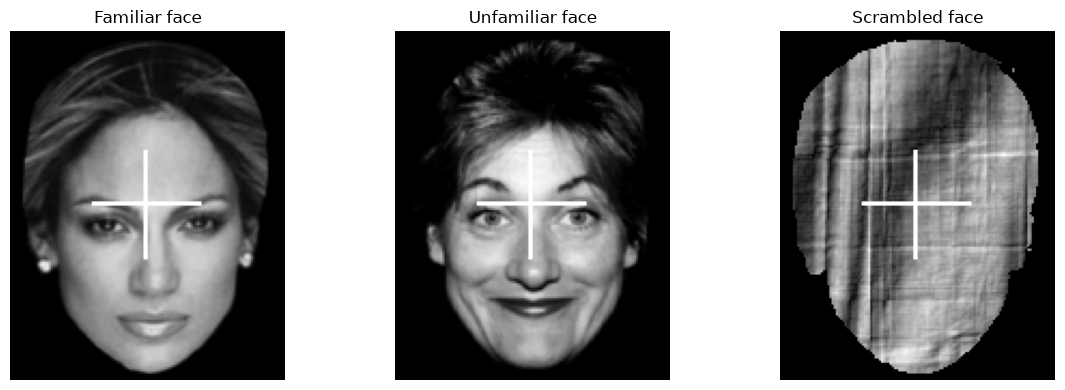

Examples of a familiar, unfamiliar and scrambled face:

PATTERN_STIMULI = "stimuli/func/*001.bmp"
!datalad install https://github.com/OpenNeuroDatasets/ds000117.git
!cd ds000117 && git checkout 1.0.5 && datalad get $PATTERN_STIMULI

Cloning:   0%|                             | 0.00/2.00 [00:00<?, ? candidates/s]
Enumerating: 0.00 Objects [00:00, ? Objects/s]

Counting:   0%|                              | 0.00/39.9k [00:00<?, ? Objects/s]

Compressing:   0%|                           | 0.00/22.2k [00:00<?, ? Objects/s]

Receiving:   0%|                             | 0.00/61.8k [00:00<?, ? Objects/s]
Receiving:  51%|██████████▋          | 31.5k/61.8k [00:00<00:00, 314k Objects/s]

Resolving:   0%|                              | 0.00/16.5k [00:00<?, ? Deltas/s]
Resolving:  62%|█████████████▋        | 10.2k/16.5k [00:00<00:00, 102k Deltas/s]
[INFO   ] Remote origin not usable by git-annex; setting annex-ignore
[INFO   ] https://github.com/OpenNeuroDatasets/ds000117.git/config download failed: Not Found
[INFO   ] Remote origin not usable by git-annex; setting annex-ignore
[INFO   ] https://github.com/OpenNeuroDatasets/ds000117.git/config download failed: Not Found
install(ok): /home/jovyan/workspace/books/examples/functional_imaging/ds000117 (dataset)
Note: switching to '1.0.5'.

You are in 'detached HEAD' state. You can look around, make experimental
changes and commit them, and you can discard any commits you make in this
state without impacting any branches by switching back to a branch.

If you want to create a new branch to retain commits you create, you may
do so (now or later) by using -c with the switch command. Example:

  git switch -c <new-branch-name>

Or undo this operation with:

  git switch -

Turn off this advice by setting config variable advice.detachedHead to false

HEAD is now at 12470d39 [OpenNeuro] Recorded changes
Total:   0%|                                    | 0.00/131k [00:00<?, ? Bytes/s]
Total:   7%|██▎                                | 8.52k/131k [00:01<?, ? Bytes/s]

Get stimuli/ .. nc/ps001.bmp: 100%|███████████| 21.8k/21.8k [00:00<?, ? Bytes/s]
Total:  17%|████▌                      | 21.8k/131k [00:01<00:10, 10.9k Bytes/s]
Get stimuli/ .. nc/pf001.bmp:  39%|████▎      | 8.52k/21.8k [00:00<?, ? Bytes/s]

Get stimuli/ .. nc/pf001.bmp: 100%|███████████| 21.8k/21.8k [00:00<?, ? Bytes/s]
Total:  33%|█████████                  | 43.6k/131k [00:01<00:04, 17.9k Bytes/s]
Get stimuli/func/u001.bmp:  39%|█████▍        | 8.52k/21.8k [00:00<?, ? Bytes/s]

Get stimuli/func/u001.bmp: 100%|██████████████| 21.8k/21.8k [00:00<?, ? Bytes/s]
Total:  50%|█████████████▌             | 65.4k/131k [00:01<00:02, 23.2k Bytes/s]
Get stimuli/ .. nc/pu001.bmp:  39%|████▎      | 8.52k/21.8k [00:00<?, ? Bytes/s]

Get stimuli/ .. nc/pu001.bmp: 100%|███████████| 21.8k/21.8k [00:00<?, ? Bytes/s]
Total:  67%|██████████████████         | 87.3k/131k [00:01<00:01, 26.9k Bytes/s]
Get stimuli/func/f001.bmp:  39%|█████▍        | 8.52k/21.8k [00:00<?, ? Bytes/s]

Get stimuli/func/f001.bmp: 100%|██████████████| 21.8k/21.8k [00:00<?, ? Bytes/s]
Total:  83%|███████████████████████▎    | 109k/131k [00:02<00:00, 29.9k Bytes/s]
Get stimuli/func/s001.bmp:  39%|█████▍        | 8.52k/21.8k [00:00<?, ? Bytes/s]

Get stimuli/func/s001.bmp: 100%|██████████████| 21.8k/21.8k [00:00<?, ? Bytes/s]
get(ok): stimuli/func/ps001.bmp (file) [from s3-PUBLIC...]
get(ok): stimuli/func/pf001.bmp (file) [from s3-PUBLIC...]
get(ok): stimuli/func/u001.bmp (file) [from s3-PUBLIC...]
get(ok): stimuli/func/pu001.bmp (file) [from s3-PUBLIC...]
get(ok): stimuli/func/f001.bmp (file) [from s3-PUBLIC...]
get(ok): stimuli/func/s001.bmp (file) [from s3-PUBLIC...]
action summary:
  get (ok: 6)

import matplotlib.pyplot as plt
from matplotlib.image import imread

# Load the .bmp images
familiar = imread('ds000117/stimuli/func/f001.bmp')
unfamiliar = imread('ds000117/stimuli/func/u001.bmp')
scrambled = imread('ds000117/stimuli/func/s001.bmp')

# Create a Matplotlib figure with subplots
fig, axes = plt.subplots(1, 3, figsize=(12, 4))

# Plot each image on a subplot
axes[0].imshow(familiar, cmap='gray')
axes[0].set_title('Familiar face')
axes[0].axis('off')

axes[1].imshow(unfamiliar, cmap='gray')
axes[1].set_title('Unfamiliar face')
axes[1].axis('off')

axes[2].imshow(scrambled, cmap='gray')
axes[2].set_title('Scrambled face')
axes[2].axis('off')

plt.tight_layout()
plt.show()

Download Data and install Python modules¶

# Raw dataset: ONLY events.tsv + json sidecar
!cd ds000117 && git checkout 1.0.5 && \
datalad get sub-0[1-5]/ses-mri/func/*_events.tsv task-facerecognition_bold.json

HEAD is now at 12470d39 [OpenNeuro] Recorded changes
action summary:
  get (notneeded: 46)

# get preprocessed normalized func images of 5 individuals and 2 runs
PATTERN_PREP = "sub-0[1-5]/ses-mri/func/*run-[1-2]*space-MNI152NLin6Asym_desc-smoothAROMAnonaggr_bold.nii.gz"

!datalad install https://github.com/OpenNeuroDerivatives/ds000117-fmriprep.git
!cd ds000117-fmriprep && datalad get $PATTERN_PREP

Fetching long content....

%%capture
!pip install nilearn==0.13.1 pandas==2.3.3 scipy==1.16.3

Load SPM and import Python and Nipype modules¶

import module
await module.purge(force=True)
await module.load('spm12/r7771')
await module.list()

['spm12/r7771']

import pandas as pd
import numpy as np
from nilearn import plotting
import matplotlib.pyplot as plt
import json
import os
from os.path import join as opj
from scipy.io import loadmat

import nipype.algorithms.modelgen as model
from nipype.interfaces import spm
from nipype.interfaces.io import DataSink, DataGrabber
from nipype.interfaces.utility import IdentityInterface, Function
from nipype import Node, Workflow, MapNode
from nipype.algorithms.misc import Gunzip

import nipype
NIPYPE_VERSION = nipype.__version__
print(NIPYPE_VERSION)

1.11.0

from packaging.version import Version

if Version(NIPYPE_VERSION) <= Version("1.8.6"):
    print('Contrasts need to be defined manually and wont be computed automatically when they are defined in Level1Design using the factor_info parameter')

# starting in nipype version 1.8.7., when factor_info parameter is used in Level1design T and F contrasts (ess*, con*, spmF* and spmT* images)
# are created automatically by in EstimateModel by SPM

Analysis¶

1. First Level Analysis¶

Prepare Data Input¶

#base directories
data_base_dir = os.getcwd()
experiment_dir = opj(data_base_dir, 'spm_analysis/') #where to store the working and datasink directories

#list of subject identifiers and runs
sub_list =  ['01', '02', '03', '04', '05']

#only take run 1 and 2 for computational reasons
run_id = [1,2]

#TR of functional images
with open(opj(data_base_dir,'ds000117/task-facerecognition_bold.json'), 'rt') as fp:
    task_info = json.load(fp)
TR = float(task_info['RepetitionTime'])
print('Repetition Time:', TR)

Repetition Time: 2.0

Start the workflow¶

wf = Workflow(name='level1_spm', base_dir=experiment_dir)
wf.config["execution"]["crashfile_format"] = "txt"

Input stream¶

infosource = Node(IdentityInterface(fields=["subject_id"]),
                  name="infosource")
infosource.iterables = [("subject_id", sub_list)]

SPM12 can accept NIfTI files as input, but only if they are not compressed (‘unzipped’). Use Gunzip node to unzip the files, before feeding them it to the model specification node.¶

gunzip_func = MapNode(Gunzip(), name='gunzip_func', iterfield='in_file')

datagrabber = Node(interface=DataGrabber(
        infields=["subject_id","run_id"], outfields=["func", "events"]
    ), name="datagrabber"
)

# Specify task names and return a sorted filelist to ensure to match files to correct runs
datagrabber.inputs.run_id = run_id
datagrabber.inputs.sort_filelist = True
datagrabber.inputs.template = "*"
datagrabber.inputs.base_directory = data_base_dir

# Define arguments fill the wildcards in the below paths
datagrabber.inputs.template_args = dict(
    func=[["subject_id","subject_id","run_id"]],
    events=[["subject_id","subject_id", "run_id"]]
)

datagrabber.inputs.field_template = dict(
    func= "ds000117-fmriprep/sub-%s/ses-mri/func/sub-%s_ses-mri_task-facerecognition_run-%d_space-MNI152NLin6Asym_desc-smoothAROMAnonaggr_bold.nii.gz",
    events="ds000117/sub-%s/ses-mri/func/sub-%s_ses-mri_task-facerecognition_run-0%d_events.tsv",
)

wf.connect([
        (infosource, datagrabber, [("subject_id", "subject_id")])])

wf.connect([(datagrabber, gunzip_func, [('func', 'in_file')])])

First-level GLM¶

The subsequent task involves obtaining information such as stimuli type, onset, duration, and other regressors for integration into the GLM model. To accomplish this, a helper function needs to be created, which will be referred to as subjectinfo.

A TSV file for each run looks like this:

!cat ds000117/sub-01/ses-mri/func/sub-01_ses-mri_task-facerecognition_run-01_events.tsv

onset	duration	circle_duration	stim_type	trigger	button_pushed	response_time	stim_file
0	.908	.534	FAMOUS	5	4	2.158	func/f013.bmp
3.273	.962	.586	FAMOUS	6	4	1.233	func/f013.bmp
6.647	.825	.546	UNFAMILIAR	13	4	1.183	func/u014.bmp
9.838	.968	.597	UNFAMILIAR	14	4	.930	func/u014.bmp
12.978	.904	.415	UNFAMILIAR	13	7	1.068	func/u016.bmp
16.219	.859	.558	UNFAMILIAR	14	7	1.207	func/u016.bmp
19.443	.804	.585	UNFAMILIAR	13	4	1.286	func/u010.bmp
22.55	.879	.526	UNFAMILIAR	14	4	1.008	func/u010.bmp
25.606	.866	.416	SCRAMBLED	17	7	1.929	func/s002.bmp
28.697	.884	.461	SCRAMBLED	18	4	1.300	func/s002.bmp
31.319	20.000	20.000	n/a	999	20000	20.000	func/i999.bmp
51.898	.974	.543	FAMOUS	5	7	2.477	func/f004.bmp
55.173	.925	.534	SCRAMBLED	17	7	1.372	func/s008.bmp
58.313	.985	.439	UNFAMILIAR	13	4	1.431	func/u012.bmp
61.587	.862	.533	FAMOUS	5	4	1.086	func/f012.bmp
64.677	.869	.461	FAMOUS	6	4	1.018	func/f012.bmp
67.75	.804	.446	SCRAMBLED	17	7	1.267	func/s007.bmp
70.774	.873	.445	SCRAMBLED	17	7	1.211	func/s011.bmp
73.881	.983	.466	FAMOUS	7	7	1.203	func/f004.bmp
77.105	.998	.468	SCRAMBLED	17	7	1.240	func/s015.bmp
80.445	.833	.583	SCRAMBLED	19	7	1.379	func/s008.bmp
83.469	.940	.434	FAMOUS	5	7	1.637	func/f006.bmp
86.676	.813	.488	FAMOUS	6	7	1.209	func/f006.bmp
89.833	.994	.570	UNFAMILIAR	15	4	1.444	func/u012.bmp
93.19	.997	.594	FAMOUS	5	7	1.352	func/f009.bmp
96.448	.869	.491	FAMOUS	5	7	1.012	func/f005.bmp
99.655	.821	.571	SCRAMBLED	19	7	1.483	func/s007.bmp
102.695	.933	.437	FAMOUS	5	7	1.228	func/f002.bmp
105.869	.818	.481	FAMOUS	6	7	1.109	func/f002.bmp
108.942	.925	.487	SCRAMBLED	19	7	1.205	func/s011.bmp
111.615	20.000	20.000	n/a	999	20000	20.000	func/i999.bmp
132.144	.980	.498	FAMOUS	5	7	.898	func/f014.bmp
135.351	.833	.458	SCRAMBLED	19	n/a	0	func/s015.bmp
138.541	.999	.591	SCRAMBLED	17	4	1.940	func/s004.bmp
141.849	.868	.548	FAMOUS	5	4	1.366	func/f001.bmp
144.906	.832	.421	FAMOUS	6	4	1.433	func/f001.bmp
147.946	.897	.445	FAMOUS	7	7	.767	func/f009.bmp
151.186	.971	.575	UNFAMILIAR	13	7	1.604	func/u013.bmp
154.393	.978	.458	FAMOUS	7	7	1.137	func/f005.bmp
157.701	.984	.564	FAMOUS	5	7	1.248	func/f015.bmp
161.008	.900	.556	UNFAMILIAR	13	4	1.239	func/u011.bmp
164.265	.828	.594	UNFAMILIAR	14	4	1.269	func/u011.bmp
167.306	.830	.447	FAMOUS	7	7	1.116	func/f014.bmp
170.312	.992	.415	FAMOUS	5	7	1.806	func/f003.bmp
173.519	.942	.442	FAMOUS	6	7	1.361	func/f003.bmp
176.777	.874	.539	SCRAMBLED	19	4	1.363	func/s004.bmp
179.984	.845	.559	SCRAMBLED	17	4	1.131	func/s012.bmp
183.058	.981	.467	SCRAMBLED	17	7	.872	func/s001.bmp
186.365	.880	.559	SCRAMBLED	18	7	1.000	func/s001.bmp
189.422	.858	.414	UNFAMILIAR	15	4	1.095	func/u013.bmp
192.027	20.000	20.000	n/a	999	20000	20.000	func/i999.bmp
212.623	.873	.554	SCRAMBLED	17	4	1.718	func/s006.bmp
215.83	.863	.558	FAMOUS	7	7	1.115	func/f015.bmp
218.937	.984	.479	SCRAMBLED	17	7	1.449	func/s014.bmp
222.178	.873	.487	SCRAMBLED	18	7	.834	func/s014.bmp
225.452	.912	.536	UNFAMILIAR	13	4	1.099	func/u002.bmp
228.559	.952	.419	UNFAMILIAR	14	4	.915	func/u002.bmp
231.733	.891	.465	UNFAMILIAR	13	4	1.023	func/u004.bmp
234.89	.947	.496	UNFAMILIAR	14	4	.953	func/u004.bmp
238.164	.824	.560	SCRAMBLED	19	7	1.068	func/s012.bmp
241.187	.922	.425	FAMOUS	5	4	1.154	func/f011.bmp
244.478	.941	.593	SCRAMBLED	17	7	1.283	func/s005.bmp
247.668	.857	.482	SCRAMBLED	18	7	1.023	func/s005.bmp
250.825	.813	.524	SCRAMBLED	19	7	1.329	func/s006.bmp
253.849	.921	.450	FAMOUS	5	7	1.221	func/f007.bmp
257.072	.903	.528	SCRAMBLED	17	7	.788	func/s016.bmp
260.163	.969	.419	FAMOUS	5	4	1.369	func/f010.bmp
263.403	.892	.516	FAMOUS	6	4	1.183	func/f010.bmp
266.627	.950	.562	SCRAMBLED	17	7	1.326	func/s009.bmp
269.901	.935	.561	SCRAMBLED	18	7	1.010	func/s009.bmp
273.025	.896	.434	FAMOUS	7	7	1.431	func/f011.bmp
275.664	20.000	20.000	n/a	999	20000	20.000	func/i999.bmp
296.109	.895	.410	SCRAMBLED	17	4	1.541	func/s010.bmp
299.233	.908	.452	SCRAMBLED	18	4	1.010	func/s010.bmp
302.373	.866	.457	UNFAMILIAR	13	4	1.137	func/u008.bmp
305.53	.880	.519	FAMOUS	7	7	1.127	func/f007.bmp
308.588	.821	.417	SCRAMBLED	17	7	1.208	func/s003.bmp
311.594	.873	.403	SCRAMBLED	18	7	.965	func/s003.bmp
314.784	.967	.543	SCRAMBLED	19	7	1.126	func/s016.bmp
318.008	.913	.495	SCRAMBLED	17	4	1.137	func/s013.bmp
321.165	.957	.477	UNFAMILIAR	13	4	1.073	func/u007.bmp
324.423	.826	.534	UNFAMILIAR	14	4	.934	func/u007.bmp
327.479	.998	.457	UNFAMILIAR	13	4	1.293	func/u015.bmp
330.77	.981	.534	UNFAMILIAR	13	4	1.075	func/u009.bmp
334.011	.920	.491	UNFAMILIAR	15	4	1.075	func/u008.bmp
337.134	.967	.442	FAMOUS	5	7	.754	func/f008.bmp
340.425	.946	.552	FAMOUS	6	7	.917	func/f008.bmp
343.632	.870	.489	UNFAMILIAR	13	4	1.286	func/u003.bmp
346.839	.990	.552	UNFAMILIAR	14	4	1.141	func/u003.bmp
350.146	.937	.542	SCRAMBLED	19	4	1.334	func/s013.bmp
352.836	20.000	20.000	n/a	999	20000	20.000	func/i999.bmp
373.298	.816	.420	UNFAMILIAR	13	4	1.415	func/u001.bmp
376.455	.837	.577	UNFAMILIAR	14	4	1.247	func/u001.bmp
379.646	.825	.572	UNFAMILIAR	13	7	1.292	func/u006.bmp
382.786	.995	.540	UNFAMILIAR	15	4	1.003	func/u015.bmp
385.993	.976	.447	UNFAMILIAR	13	7	1.536	func/u005.bmp
389.3	.906	.558	UNFAMILIAR	15	4	1.078	func/u009.bmp
392.508	.957	.526	FAMOUS	5	7	1.223	func/f016.bmp
395.264	.012	0	n/a	999	0	0	func/Circle.bmp

As mentioned in the introduction, these event files will be adapted in the function ‘subjectinfo’ to demonstrate the setup of a 3x2 factorial design analysis. The original stimulus types (stim_types) FAMOUS, NONFAMILIAR, SCRAMBLED will be replaced with F1 (first presentation of an image of a famous face)/ F2 (second presentation of image), U1/U2 and S1/S1 due to the first or second occurance of the respective stimulus file (stim_file). In addition, stimuli of stimulus type n/a are deleted.

# Get the subject information: to create a GLM model, Nipype needs a list of Bunch objects per run (session)

def subjectinfo(events):

    # packages need to be imported within the function for node to work (function is executed in a standalone environment)
    from nipype.interfaces.base import Bunch
    import pandas as pd
    from collections import OrderedDict

    trialinfo = pd.read_table(events)

    # Filter out rows where stim_type does not contain 'FAMOUS', 'UNFAMILIAR', or 'SCRAMBLED' --> n/a
    trialinfo = trialinfo[trialinfo['stim_type'].isin(['FAMOUS', 'UNFAMILIAR', 'SCRAMBLED'])].reset_index(drop=True)

    # Create a dictionary to store the count of occurrences for each stim_file
    stim_file_count = {}


    # Iterate over each row in the dataframe
    for index, row in trialinfo.iterrows():
        # Get the stim_file value for the current row
        stim_file = row['stim_file']

        # If the stim_file is not in the stim_file_count dictionary, add it with count 1
        if stim_file not in stim_file_count:
            stim_file_count[stim_file] = 1
        else:
            # Increment the count for the stim_file and update the dictionary
            stim_file_count[stim_file] += 1

        # Get the count of occurrences for the current stim_file
        count = stim_file_count[stim_file]

        # Determine the new stim_type based on the stim_file and its count
        if 'FAMOUS' in row['stim_type']:
            new_stim_type = f'F{count}'
        elif 'UNFAMILIAR' in row['stim_type']:
            new_stim_type = f'U{count}'
        else:
            # If it's not 'FAMOUS' or 'UNFAMILIAR', it must be 'SCRAMBLED'
            new_stim_type = f'S{count}'

        # Update the stim_type in the dataframe
        trialinfo.at[index, 'stim_type'] = new_stim_type


    # Define the custom sorting order (instead of an alphabetic ordering F1, F2, S1, S2, U1, U2
    sorting_order = OrderedDict([('F1', 1), ('F2', 2), ('U1', 3), ('U2', 4), ('S1', 5), ('S2', 6)])

    conditions = []
    onsets = []
    durations = []

    # Group trialinfo by 'stim_type' and iterate over groups
    grouped_trials = trialinfo.groupby('stim_type')
    for group_key in sorting_order.keys():  # Use keys() to iterate over keys
        group_data = grouped_trials.get_group(group_key)
        conditions.append(group_key)
        onsets.append(group_data['onset'].tolist())
        durations.append(group_data['duration'].tolist())

    subject_info = Bunch(conditions=conditions,
                     onsets=onsets,
                     durations=durations)

    return subject_info



getsubjectinfo = MapNode(Function(input_names=['events'],
                                output_names=['subject_info'],
                                function=subjectinfo),
                                name='getsubjectinfo', iterfield=['events'])

wf.connect(datagrabber, 'events', getsubjectinfo, 'events')

modelspec = Node(model.SpecifySPMModel(concatenate_runs=True,
                                input_units = 'secs',
                                output_units = 'secs',
                                time_repetition= TR,
                                high_pass_filter_cutoff=128), #in secs, slow signal drifts with a period > 128 will be removed
                                name='modelspec')

wf.connect(getsubjectinfo, 'subject_info', modelspec,'subject_info')
wf.connect(gunzip_func, 'out_file', modelspec, 'functional_runs')

Level1Design: canonical HRF¶

The design matrix will be constructed without including derivatives of the hemodynamic response function (HRF) and therefore assumes a constant delay and dispersion for the hemodynamic response.

Starting in nipype version 1.8.7., when factor_info parameter is used in Level1design, T and F contrasts (ess, con, spmF and spmT images) are created automatically in EstimateModel by SPM. They need to be connected directly to a data output module

The following lines automatically inform SPM to create a default set of contrats for a factorial design.

# Level1Design - Generates an SPM design matrix
level1design = Node(spm.Level1Design(bases={'hrf':{'derivs': [0,0]}}, # no derivatives
                                timing_units='secs',
                                interscan_interval=TR,
                                microtime_onset=8, #The onset/time-bin in seconds for alignment
                                microtime_resolution=16, #Number of time-bins per scan in secs
                                mask_threshold=0.8,
                                global_intensity_normalization='none',
                                volterra_expansion_order=1, #do not model interactions
                                model_serial_correlations='AR(1)'), # serial correlations --> autoregressive AR(1) model during Classical (ReML) parameter estimation
                                name='level1design')

if Version(NIPYPE_VERSION) > Version("1.8.6"):
# Factors need to match conditions: product of levels (here 6) needs to match number of condition names --> F1, F2, U1, U2, S1, S2
    level1design.inputs.factor_info = [dict(name = 'Face', levels = 3),
                                        dict(name = 'Rep', levels = 2)]

wf.connect(modelspec,'session_info', level1design, 'session_info')

stty: 'standard input': Inappropriate ioctl for device

# EstimateModel - estimate the parameters of the model
level1estimate = Node(spm.EstimateModel(estimation_method={'Classical':1}),
                                   name='level1estimate')

wf.connect(level1design, 'spm_mat_file', level1estimate, 'spm_mat_file')

Specify GLM contrast for nipype<=1.8.6¶

Contrasts need to be set up manually as they are not created automatically in EstimateModel when factor_info parameter is used in Level1Design.

condition_names =   ['F1', 'F2', 'U1', 'U2', 'S1', 'S2'] #The condition names must match the names listed in the subjectinfo function described above.

cond1 = ('Positive effect of condition', 'T', condition_names, [1, 1, 1, 1, 1, 1])

# positive effect face
face1 = ('Positive effect of Face_1', 'T', condition_names, [1, 1, -1, -1, 0, 0])
face2 = ('Positive effect of Face_2', 'T', condition_names, [0, 0, 1, 1, -1, -1])

# rep1 > rep2
rep1 = ('Positive effect of Rep', 'T', condition_names, [1, -1, 1, -1, 1, -1])

# positive interaction face x rep
int1 = ('Positive interaction of Face x Rep1', 'T', condition_names, [1, -1, -1, 1, 0, 0])
int2 = ('Positive interaction of Face x Rep2', 'T', condition_names, [0, 0, 1, -1, -1, 1])

contf1 = ['Average effect condition', 'F', [cond1]]
contf2 = ['Main effect Face', 'F', [face1, face2]]
contf3 = ['Main effect Rep', 'F', [rep1]]
contf4 = ['Interaction: Face x Rep', 'F', [int1, int2]]

contrasts = [contf1, contf2, contf3, contf4, cond1, face1, face2,  rep1,  int1, int2]

# EstimateContrast - explicit contrast estimation with nipype version <= 1.8.6 with the defined contrast list

if Version(NIPYPE_VERSION) <= Version("1.8.6"):
    level1conest = Node(spm.EstimateContrast(),
                        name='level1conest')
    level1conest.inputs.contrasts = contrasts


    wf.connect([(level1estimate, level1conest, [('spm_mat_file','spm_mat_file'),
                                                ('beta_images','beta_images'),
                                            ('residual_image','residual_image')])])
else:
    # NEW Nipype: contrasts already created in EstimateModel
    pass

Output stream¶

# save all results into one
datasink = Node(DataSink(), name='sinker')
datasink.inputs.base_directory=opj(experiment_dir, "level1_spm_results")

wf.connect(infosource, 'subject_id', datasink, 'container')

if Version(NIPYPE_VERSION)<= Version("1.8.6"):
    wf.connect([(level1conest, datasink,    [('spm_mat_file', '1stLevel.@spm_mat'),
                                            ('spmT_images', '1stLevel.@T'),
                                            ('con_images', '1stLevel.@con'),
                                            ('spmF_images', '1stLevel.@F'),
                                            ('ess_images', '1stLevel.@ess')]),
                                            ])
# starting in nipype version 1.8.7., when factor_info parameter is used in Level1Design T and F contrasts (ess*, con*, spmF* and spmT* images)
# are created automatically by SPM in EstimateModel
else:
    wf.connect(level1design, 'spm_mat_file', datasink, '1stLevel.@spm_mat')
    wf.connect([(level1estimate, datasink,  [
                                            ('spmT_images', '1stLevel.@T'),
                                            ('con_images', '1stLevel.@con'),
                                            ('spmF_images', '1stLevel.@F'),
                                            ('ess_images', '1stLevel.@ess')]),
                                            ])

subFolders = [('%s/1stLevel' % s, 'sub-%s/' % s)
               for s in sub_list]

subFolders1 = [('_subject_id_%s'%(s), '')
              for s in sub_list]

subFolders.extend(subFolders1)
datasink.inputs.substitutions = subFolders

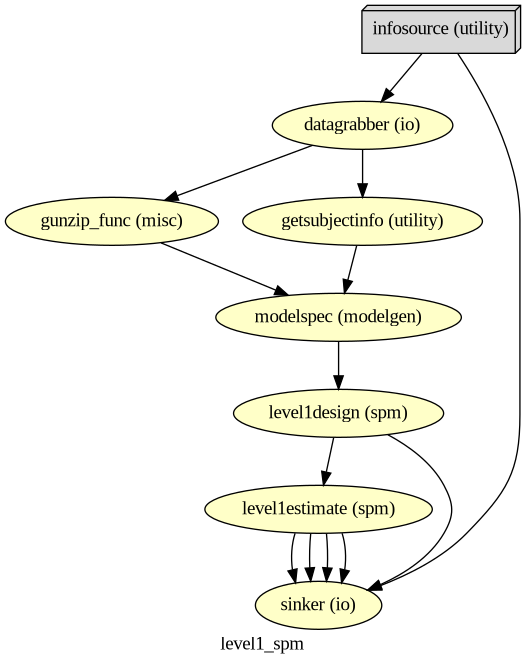

# Create 1st-level analysis output graph
wf.write_graph(graph2use='colored', format='png', simple_form=True)

# Visualize the graph
from IPython.display import Image
Image(filename=opj(wf.base_dir, wf.name, 'graph.png'))

260709-22:59:53,656 nipype.workflow INFO:
	 Generated workflow graph: /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level1_spm/graph.png (graph2use=colored, simple_form=True).

wf.run(plugin="MultiProc") #will use all CPUs

Fetching long content....

stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device

<networkx.classes.digraph.DiGraph at 0x7458d42874d0>

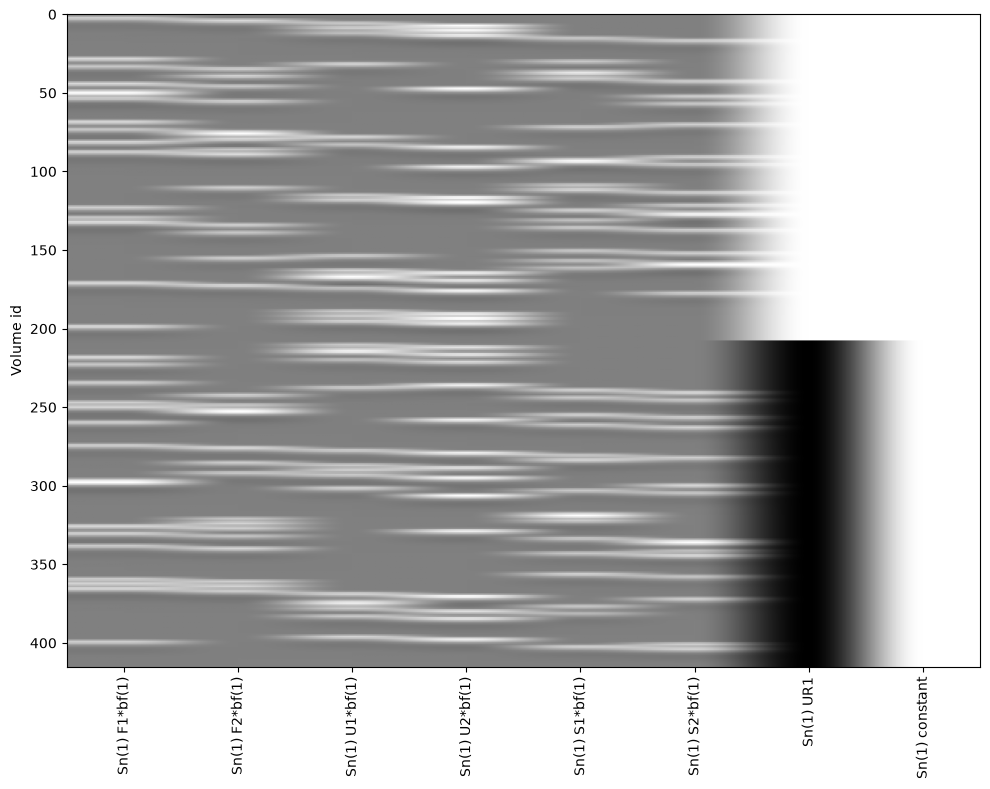

Visualize design matrix and list contrasts¶

# Load
spm_data = loadmat(opj(experiment_dir, 'level1_spm_results/sub-01/SPM.mat'),
                    struct_as_record=False, squeeze_me=True)

SPM = spm_data['SPM']

# Exract Data
designMatrix = SPM.xX.X
names = SPM.xX.name

# Get contrast name
if hasattr(SPM, 'xCon'):
    # xCon can be single object or list
    if isinstance(SPM.xCon, np.ndarray):
        names_contrast = [con.name for con in SPM.xCon]
    else:
        names_contrast = [SPM.xCon.name]
else:
    names_contrast = []

# Plot
normed_design = designMatrix / np.abs(designMatrix).max(axis=0)

fig, ax = plt.subplots(figsize=(10, 8))
im = ax.imshow(normed_design, aspect='auto', cmap='gray')
ax.set_ylabel('Volume id')
ax.set_xticks(np.arange(len(names)))
ax.set_xticklabels(names, rotation=90)
plt.tight_layout()
plt.show()

# Clean up the whole working tree (keeps only your DataSink outputs)
import shutil
shutil.rmtree("spm_analysis/level1_spm", ignore_errors=True)

2. Second Level Analysis¶

For a factorial design with 2 factors there are 4 effects to test for: an overall effect, 2 main effects and one two-way interaction:

To test (1) the overall effect, use a [1 1 1 1 1 1] contrast for each subject and take the resulting con images of all subjects into a one-sample t-test at the second level. Then specify a [1] F-contrast (at the second level) to test for significantly non-zero BOLD responses related to the paradigm.
To test for (2) the main effect of Factor Repetition (two levels), use a [1 -1 1 -1 1 -1] contrast for each subject and take the resulting con images into a one-sample t-test at the second level.
To test for (3) the main effect of Factor Face (three levels), use two contrasts per subject [1 1 -1 -1 0 0] and [0 0 1 1 -1 -1] and take all resulting con images (two per subject) into a two-sample t-test design at the second level. Then, use a [1 0; 0 1] F-contrast to test for this main effect.
To test for (4) the interaction between Factors Face and Rep, use two contrasts per subject [1 -1 -1 1 0 0] and [0 0 1 -1 -1 1] and take all resulting con images (two per subject) into a two-sample t-test design at the second level. Use then a [1 0; 0 1] F-contrast to test for this interaction effect.

2.1 One Sample T-Test: Overall effect, main effect of repetition¶

Test for significantly non-zero BOLD responses over all subjects.

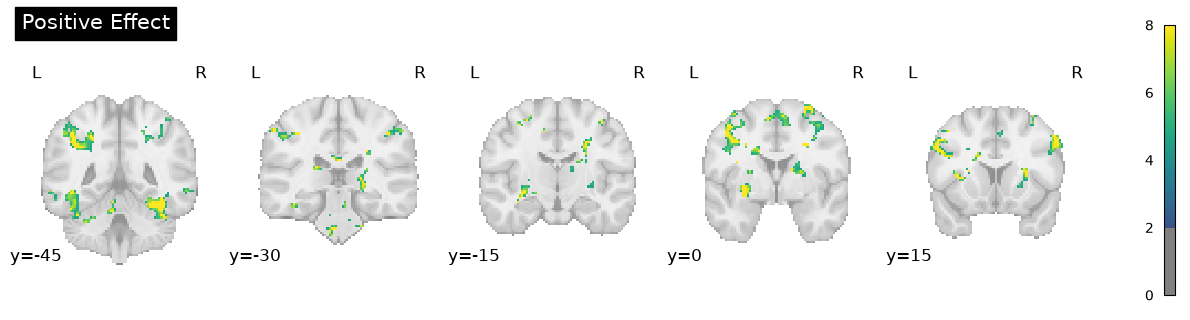

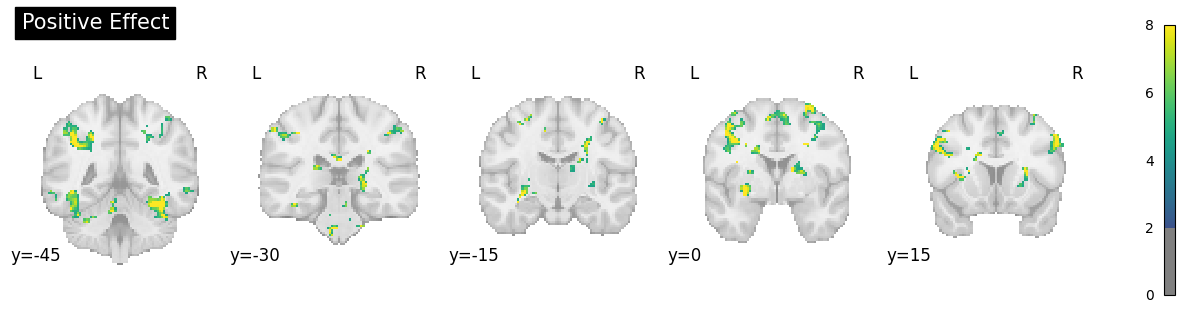

con_0005: Positive effect
con_0006: Positive Effect F>S

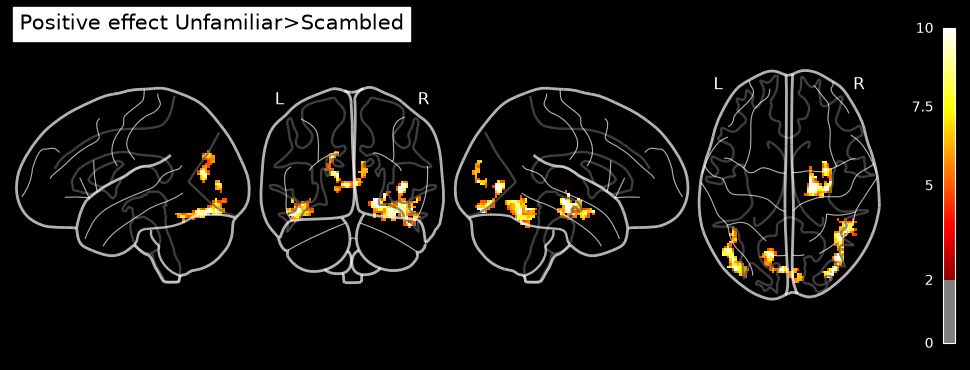

con_0007: Positive Effect S>U

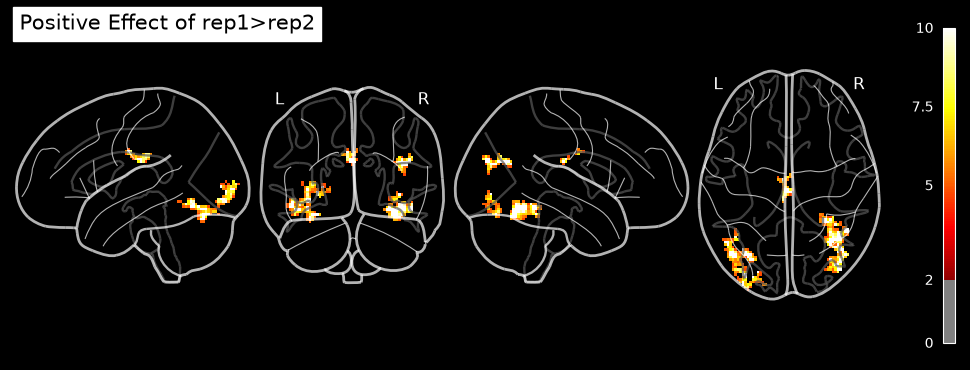

con_0008: Positive Effect of rep1>rep2

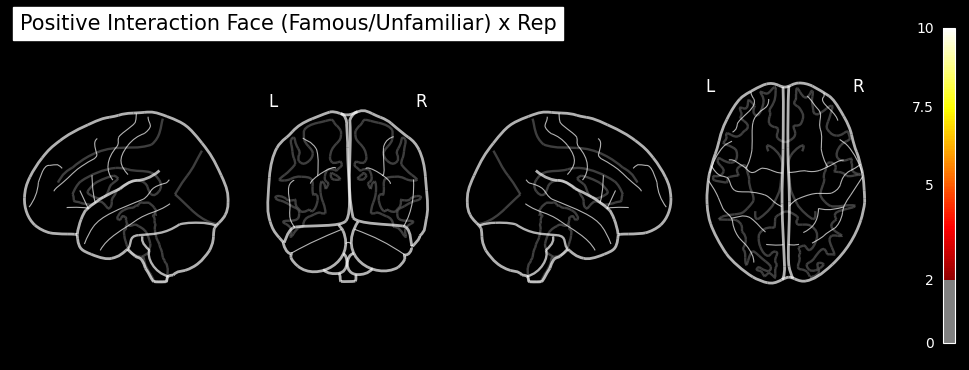

con_0009: Positive Interaction Face (F/S) x Rep

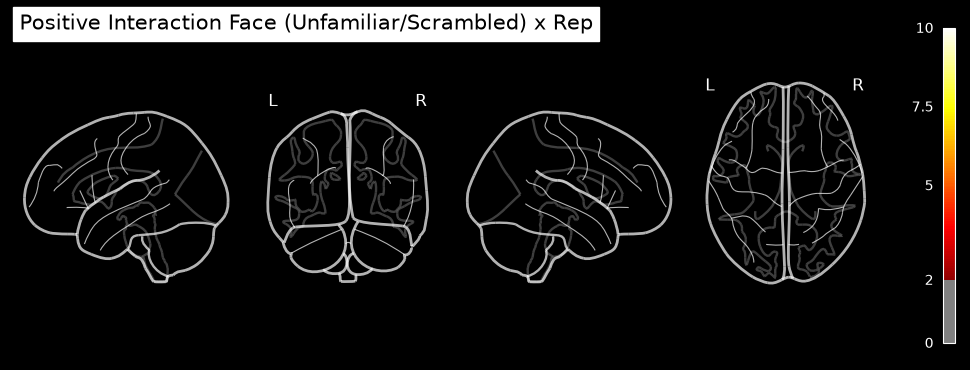

con_0010: Positive Interaction Face (S/U) x Rep

wf_2ndlevel_onesample = Workflow(name='level2_spm_1sample', base_dir=experiment_dir)
wf_2ndlevel_onesample.config["execution"]["crashfile_format"] = "txt"

contrast_id = [5, 6, 7, 8, 9, 10] #contrasts con_0005 to con_0010

l2source = Node(DataGrabber(infields= ['con'], outfields=['contrasts']), name='l2source')

l2source.inputs.sort_filelist = True
l2source.inputs.base_directory = opj(experiment_dir, 'level1_spm_results')
l2source.inputs.template = '*'
l2source.inputs.field_template = dict(
   contrasts = '*/con_%04d.nii'
)

# iterate over all contrast images
l2source.iterables = [('con', contrast_id)]

# OneSampleTTest Design
onesamplettestdes = Node(interface=spm.OneSampleTTestDesign(), name="onesampttestdes")

wf_2ndlevel_onesample.connect([(l2source, onesamplettestdes, [('contrasts', 'in_files')])])

# EstimateModel - estimates the model
l2estimate = Node(spm.EstimateModel(estimation_method={'Classical':1}), name='level2estimate')

# EstimateContast - estimates group contrast
l2conestimate = Node(spm.EstimateContrast(group_contrast=True), name = 'level2conestimate')

con_1= ['Group', 'T', ['mean'], [1]]
#con_2= ['Group', 'F', [con_1]] # if an F contrast is also wanted

l2conestimate.inputs.contrasts = [con_1] # con_2, include in list if wanted

# Threshold - thresholds contrasts
level2thresh = Node(spm.Threshold(contrast_index=1,# which contrast in the SPM.mat to use --> here set for con_1: T stat
                                use_topo_fdr=True, # whether to use FDR over cluster extent probabilities
                                use_fwe_correction=False, # whether to use FWE (Bonferroni) correction for initial threshold
                                extent_threshold=0, # minimum cluster size in voxels
                                height_threshold=0.005, # value for initial thresholding (defining clusters) - voxelwise
                                height_threshold_type='p-value',
                                extent_fdr_p_threshold=0.05), # p threshold on FDR corrected cluster size probabilities
                                name='level2thresh')

wf_2ndlevel_onesample.connect([(onesamplettestdes, l2estimate, [('spm_mat_file', 'spm_mat_file')]),
                    (l2estimate, l2conestimate, [('spm_mat_file', 'spm_mat_file'),
                                                ('beta_images', 'beta_images'),
                                                ('residual_image', 'residual_image')]),
                    (l2conestimate, level2thresh, [('spm_mat_file', 'spm_mat_file'),
                                                    ('spmT_images', 'stat_image')])

                    ])

datasink_2nd = Node(DataSink(), name='datasink_2nd')
datasink_2nd.inputs.base_directory=opj(experiment_dir, 'level2_spm_results_1sample')

wf_2ndlevel_onesample.connect([(l2conestimate, datasink_2nd, [('spm_mat_file', '2ndLevel.@spm_mat'),
                                                    ('spmT_images', '2ndLevel.@T'),
                                                    ('con_images', '2ndLevel.@con')]),
                    (level2thresh, datasink_2nd, [('thresholded_map',
                                                '2ndLevel.@threshold')])
                    ])

#replace _con_ with con
subFolders = [('2ndLevel/', '')]

subFolders1 = [('_con_', 'con')]
subFolders.extend(subFolders1)

datasink_2nd.inputs.substitutions = subFolders

from IPython.display import Image

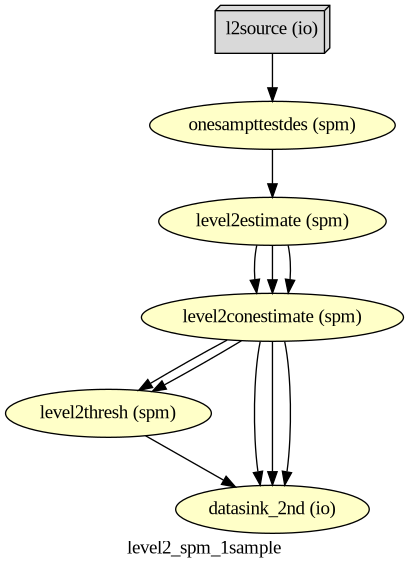

wf_2ndlevel_onesample.write_graph(graph2use='colored', format='png', simple_form=True)

Image(filename=opj(wf_2ndlevel_onesample.base_dir, wf_2ndlevel_onesample.name, 'graph.png'))

260709-23:01:37,796 nipype.workflow INFO:
	 Generated workflow graph: /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_1sample/graph.png (graph2use=colored, simple_form=True).

wf_2ndlevel_onesample.run(plugin="MultiProc")

Fetching long content....

stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device

<networkx.classes.digraph.DiGraph at 0x7458d4179480>

# Clean up the whole working tree (keeps only your DataSink outputs)
shutil.rmtree("spm_analysis/level2_spm_1sample", ignore_errors=True)

2.1 Two Sample T-Test: Main effect of face, Interaction Face x Repetition¶

Main effect of face: enter the following 2 contrasts per subject into a two-sample t-test and use 1 0, 0 1 F contrast

con_0006: Positive Effect F>S
con_0007: Positive Effect S>U

Interaction Face x Rep: enter the following 2 contrasts per subject into a two-sample t-test and use 1 0, 0 1 F contrast

con_0009: Positive Interaction Face (F/S) x Rep
con_0010: Positive Interaction Face (S/U) x Rep

wf_2ndlevel_twosample = Workflow(name='level2_spm_2sample', base_dir=experiment_dir)
wf_2ndlevel_twosample.config["execution"]["crashfile_format"] = "txt"

contrast_id_1 = [6] #con_0006
contrast_id_2 = [7] #con_0007

l2source2 = Node(DataGrabber(outfields=["group_1", "group_2"]), name='l2source')

l2source2.inputs.sort_filelist = True
l2source2.inputs.contrast_id_1 = contrast_id_1
l2source2.inputs.contrast_id_2 = contrast_id_2
l2source2.inputs.base_directory = opj(experiment_dir, 'level1_spm_results')
l2source2.inputs.template = '*'

l2source2.inputs.template_args = dict(
    group_1=[["contrast_id_1"]],
    group_2=[["contrast_id_2"]])

l2source2.inputs.field_template = dict(
    group_1 = "*/con_%04d.nii",
    group_2 ="*/con_%04d.nii",
)

# SecondLevelDesign - TwoSampleTTestDesign bases Factorial Design
twosamplettestdes = Node(interface=spm.TwoSampleTTestDesign(), name="twosampttestdes")
twosamplettestdes.inputs.dependent = False # measurements dependent between levels
twosamplettestdes.inputs.unequal_variance = True # equal or unequal between groups

wf_2ndlevel_twosample.connect([(l2source2, twosamplettestdes, [('group_1', 'group1_files')]),
                             (l2source2, twosamplettestdes, [('group_2', 'group2_files')])])

l2estimate2 = Node(spm.EstimateModel(estimation_method={'Classical':1}), name='level2estimate')

# EstimateContast - estimates group contrast
l2conestimate2 = Node(spm.EstimateContrast(group_contrast=True), name = 'level2conestimate')

con_1 = ('Pos effect level 1','T', ['Group_{1}', 'Group_{2}'],[1, 0])
con_2 = ('Pos effect level 2','T', ['Group_{1}', 'Group_{2}'],[0, 1])

con_3 = ('Main effect', 'F', [con_1, con_2]) # main effect of face

l2conestimate2.inputs.contrasts = [con_1, con_2, con_3]


# Threshold - thresholds contrasts
level2thresh2 = MapNode(spm.Threshold(contrast_index=3,# which contrast in the SPM.mat to use --> here set for con_3: main effect
                                use_topo_fdr=True, # whether to use FDR over cluster extent probabilities
                                use_fwe_correction=False, # whether to use FWE (Bonferroni) correction for initial threshold
                                extent_threshold=0, # minimum cluster size in voxels
                                height_threshold=0.005, # value for initial thresholding (defining clusters) - voxelwise
                                height_threshold_type='p-value',
                                extent_fdr_p_threshold=0.05), # P threshold on FDR corrected cluster size probabilities
                                iterfield=['stat_image'],
                                name='level2thresh')

wf_2ndlevel_twosample.connect([(twosamplettestdes, l2estimate2, [('spm_mat_file', 'spm_mat_file')]),
                    (l2estimate2, l2conestimate2, [('spm_mat_file', 'spm_mat_file'),
                                                ('beta_images', 'beta_images'),
                                                ('residual_image', 'residual_image')]),
                    (l2conestimate2, level2thresh2, [('spm_mat_file', 'spm_mat_file'),
                                                    ('spmT_images', 'stat_image')])
                    ])

datasink_2nd_2 = Node(DataSink(), name='datasink_2nd_2')
datasink_2nd_2.inputs.base_directory=opj(experiment_dir, 'level2_spm_results_2sample')

wf_2ndlevel_twosample.connect([(l2conestimate2, datasink_2nd_2, [('spm_mat_file', '2ndLevel.@spm_mat'),
                                                    ('spmT_images', '2ndLevel.@T'),
                                                    ('con_images', '2ndLevel.@con')]),
                    (level2thresh2, datasink_2nd_2, [('thresholded_map',
                                                '2ndLevel.@threshold')])
                    ])

subFolders = [('2ndLevel/', 'MainEffectFace/')]
subFolders1 = [('_con_', 'con')]
subFolders2 = [('_level2thresh0', 'thresh_con1')]
subFolders3 = [('_level2thresh1', 'thresh_con2')]
subFolders4 = [('_level2thresh2', 'thresh_con3')]

subFolders.extend(subFolders1)
subFolders.extend(subFolders2)
subFolders.extend(subFolders3)
subFolders.extend(subFolders4)

datasink_2nd_2.inputs.substitutions = subFolders

from IPython.display import Image

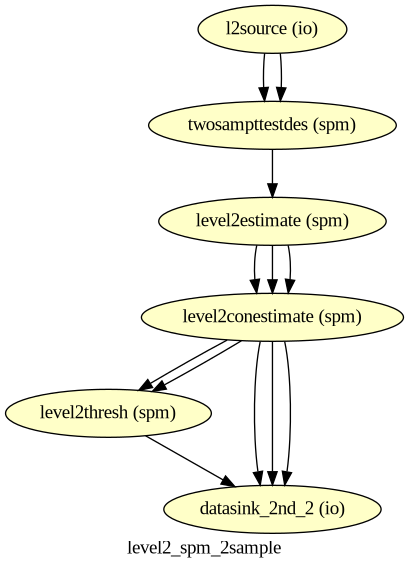

wf_2ndlevel_twosample.write_graph(graph2use='colored', format='png', simple_form=True)

Image(filename=opj(wf_2ndlevel_twosample.base_dir, wf_2ndlevel_twosample.name, 'graph.png'))

260709-23:02:38,161 nipype.workflow INFO:
	 Generated workflow graph: /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_2sample/graph.png (graph2use=colored, simple_form=True).

wf_2ndlevel_twosample.run(plugin="MultiProc")

260709-23:02:38,173 nipype.workflow INFO:
	 Workflow level2_spm_2sample settings: ['check', 'execution', 'logging', 'monitoring']
260709-23:02:38,178 nipype.workflow INFO:
	 Running in parallel.
260709-23:02:38,180 nipype.workflow INFO:
	 [MultiProc] Running 0 tasks, and 1 jobs ready. Free memory (GB): 56.51/56.51, Free processors: 16/16, Free GPU slot:0/0.
260709-23:02:38,437 nipype.workflow INFO:
	 [Node] Setting-up "level2_spm_2sample.l2source" in "/home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_2sample/l2source".
260709-23:02:38,443 nipype.workflow INFO:
	 [Node] Executing "l2source" <nipype.interfaces.io.DataGrabber>
260709-23:02:38,447 nipype.workflow INFO:
	 [Node] Finished "l2source", elapsed time 0.001359s.
260709-23:02:40,181 nipype.workflow INFO:
	 [Job 0] Completed (level2_spm_2sample.l2source).
260709-23:02:40,184 nipype.workflow INFO:
	 [MultiProc] Running 0 tasks, and 1 jobs ready. Free memory (GB): 56.51/56.51, Free processors: 16/16, Free GPU slot:0/0.
260709-23:02:40,357 nipype.workflow INFO:
	 [Node] Setting-up "level2_spm_2sample.twosampttestdes" in "/home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_2sample/twosampttestdes".
260709-23:02:40,364 nipype.workflow INFO:
	 [Node] Executing "twosampttestdes" <nipype.interfaces.spm.model.TwoSampleTTestDesign>
260709-23:02:42,180 nipype.workflow INFO:
	 [MultiProc] Running 1 tasks, and 0 jobs ready. Free memory (GB): 56.31/56.51, Free processors: 15/16, Free GPU slot:0/0.
                     Currently running:
                       * level2_spm_2sample.twosampttestdes
260709-23:02:53,364 nipype.workflow INFO:
	 [Node] Finished "twosampttestdes", elapsed time 12.997545s.
260709-23:02:54,181 nipype.workflow INFO:
	 [Job 1] Completed (level2_spm_2sample.twosampttestdes).
260709-23:02:54,183 nipype.workflow INFO:
	 [MultiProc] Running 0 tasks, and 1 jobs ready. Free memory (GB): 56.51/56.51, Free processors: 16/16, Free GPU slot:0/0.
260709-23:02:54,292 nipype.workflow INFO:
	 [Node] Setting-up "level2_spm_2sample.level2estimate" in "/home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_2sample/level2estimate".
260709-23:02:54,298 nipype.workflow INFO:
	 [Node] Executing "level2estimate" <nipype.interfaces.spm.model.EstimateModel>
260709-23:02:56,181 nipype.workflow INFO:
	 [MultiProc] Running 1 tasks, and 0 jobs ready. Free memory (GB): 56.31/56.51, Free processors: 15/16, Free GPU slot:0/0.
                     Currently running:
                       * level2_spm_2sample.level2estimate
260709-23:03:08,987 nipype.workflow INFO:
	 [Node] Finished "level2estimate", elapsed time 14.686787s.
260709-23:03:10,182 nipype.workflow INFO:
	 [Job 2] Completed (level2_spm_2sample.level2estimate).
260709-23:03:10,184 nipype.workflow INFO:
	 [MultiProc] Running 0 tasks, and 1 jobs ready. Free memory (GB): 56.51/56.51, Free processors: 16/16, Free GPU slot:0/0.
260709-23:03:10,302 nipype.workflow INFO:
	 [Node] Setting-up "level2_spm_2sample.level2conestimate" in "/home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_2sample/level2conestimate".
260709-23:03:10,311 nipype.workflow INFO:
	 [Node] Executing "level2conestimate" <nipype.interfaces.spm.model.EstimateContrast>
260709-23:03:12,183 nipype.workflow INFO:
	 [MultiProc] Running 1 tasks, and 0 jobs ready. Free memory (GB): 56.31/56.51, Free processors: 15/16, Free GPU slot:0/0.
                     Currently running:
                       * level2_spm_2sample.level2conestimate
260709-23:03:24,9 nipype.workflow INFO:
	 [Node] Finished "level2conestimate", elapsed time 13.696088s.
260709-23:03:24,183 nipype.workflow INFO:
	 [Job 3] Completed (level2_spm_2sample.level2conestimate).
260709-23:03:24,185 nipype.workflow INFO:
	 [MultiProc] Running 0 tasks, and 1 jobs ready. Free memory (GB): 56.51/56.51, Free processors: 16/16, Free GPU slot:0/0.
260709-23:03:26,186 nipype.workflow INFO:
	 [MultiProc] Running 0 tasks, and 3 jobs ready. Free memory (GB): 56.51/56.51, Free processors: 16/16, Free GPU slot:0/0.
260709-23:03:26,326 nipype.workflow INFO:
	 [Node] Setting-up "_level2thresh1" in "/home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_2sample/level2thresh/mapflow/_level2thresh1".
260709-23:03:26,326 nipype.workflow INFO:
	 [Node] Setting-up "_level2thresh0" in "/home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_2sample/level2thresh/mapflow/_level2thresh0".
260709-23:03:26,327 nipype.workflow INFO:
	 [Node] Setting-up "_level2thresh2" in "/home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_2sample/level2thresh/mapflow/_level2thresh2".
260709-23:03:26,334 nipype.workflow INFO:
	 [Node] Executing "_level2thresh0" <nipype.interfaces.spm.model.Threshold>
260709-23:03:26,334 nipype.workflow INFO:
	 [Node] Executing "_level2thresh1" <nipype.interfaces.spm.model.Threshold>
260709-23:03:26,335 nipype.workflow INFO:
	 [Node] Executing "_level2thresh2" <nipype.interfaces.spm.model.Threshold>
260709-23:03:28,186 nipype.workflow INFO:
	 [MultiProc] Running 3 tasks, and 0 jobs ready. Free memory (GB): 55.91/56.51, Free processors: 13/16, Free GPU slot:0/0.
                     Currently running:
                       * _level2thresh2
                       * _level2thresh1
                       * _level2thresh0
260709-23:03:35,240 nipype.workflow INFO:
	 [Node] Finished "_level2thresh0", elapsed time 8.904837s.
260709-23:03:35,322 nipype.workflow INFO:
	 [Node] Finished "_level2thresh1", elapsed time 8.98512s.
260709-23:03:35,358 nipype.workflow INFO:
	 [Node] Finished "_level2thresh2", elapsed time 9.02094s.
260709-23:03:36,186 nipype.workflow INFO:
	 [Job 6] Completed (_level2thresh0).
260709-23:03:36,187 nipype.workflow INFO:
	 [Job 7] Completed (_level2thresh1).
260709-23:03:36,188 nipype.workflow INFO:
	 [Job 8] Completed (_level2thresh2).
260709-23:03:36,189 nipype.workflow INFO:
	 [MultiProc] Running 0 tasks, and 1 jobs ready. Free memory (GB): 56.51/56.51, Free processors: 16/16, Free GPU slot:0/0.
260709-23:03:36,309 nipype.workflow INFO:
	 [Node] Setting-up "_level2thresh0" in "/home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_2sample/level2thresh/mapflow/_level2thresh0".
260709-23:03:36,313 nipype.workflow INFO:
	 [Node] Cached "_level2thresh0" - collecting precomputed outputs
260709-23:03:36,314 nipype.workflow INFO:
	 [Node] "_level2thresh0" found cached.
260709-23:03:36,315 nipype.workflow INFO:
	 [Node] Setting-up "_level2thresh1" in "/home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_2sample/level2thresh/mapflow/_level2thresh1".
260709-23:03:36,317 nipype.workflow INFO:
	 [Node] Cached "_level2thresh1" - collecting precomputed outputs
260709-23:03:36,318 nipype.workflow INFO:
	 [Node] "_level2thresh1" found cached.
260709-23:03:36,319 nipype.workflow INFO:
	 [Node] Setting-up "_level2thresh2" in "/home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_2sample/level2thresh/mapflow/_level2thresh2".
260709-23:03:36,321 nipype.workflow INFO:
	 [Node] Cached "_level2thresh2" - collecting precomputed outputs
260709-23:03:36,321 nipype.workflow INFO:
	 [Node] "_level2thresh2" found cached.
260709-23:03:38,186 nipype.workflow INFO:
	 [Job 4] Completed (level2_spm_2sample.level2thresh).
260709-23:03:38,187 nipype.workflow INFO:
	 [MultiProc] Running 0 tasks, and 1 jobs ready. Free memory (GB): 56.51/56.51, Free processors: 16/16, Free GPU slot:0/0.
260709-23:03:38,296 nipype.workflow INFO:
	 [Node] Setting-up "level2_spm_2sample.datasink_2nd_2" in "/home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_2sample/datasink_2nd_2".
260709-23:03:38,305 nipype.workflow INFO:
	 [Node] Executing "datasink_2nd_2" <nipype.interfaces.io.DataSink>
260709-23:03:38,307 nipype.interface INFO:
	 sub: /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/2ndLevel/SPM.mat -> /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/MainEffectFace/SPM.mat
260709-23:03:38,308 nipype.interface INFO:
	 sub: /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/2ndLevel/spmT_0001.nii -> /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/MainEffectFace/spmT_0001.nii
260709-23:03:38,309 nipype.interface INFO:
	 sub: /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/2ndLevel/spmT_0002.nii -> /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/MainEffectFace/spmT_0002.nii
260709-23:03:38,310 nipype.interface INFO:
	 sub: /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/2ndLevel/spmF_0003.nii -> /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/MainEffectFace/spmF_0003.nii
260709-23:03:38,311 nipype.interface INFO:
	 sub: /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/2ndLevel/con_0001.nii -> /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/MainEffectFace/con_0001.nii
260709-23:03:38,312 nipype.interface INFO:
	 sub: /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/2ndLevel/con_0002.nii -> /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/MainEffectFace/con_0002.nii
260709-23:03:38,313 nipype.interface INFO:
	 sub: /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/2ndLevel/ess_0003.nii -> /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/MainEffectFace/ess_0003.nii
260709-23:03:38,313 nipype.interface INFO:
	 sub: /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/2ndLevel/_level2thresh0/spmT_0001_thr.nii -> /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/MainEffectFace/thresh_con1/spmT_0001_thr.nii
260709-23:03:38,314 nipype.interface INFO:
	 sub: /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/2ndLevel/_level2thresh1/spmT_0002_thr.nii -> /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/MainEffectFace/thresh_con2/spmT_0002_thr.nii
260709-23:03:38,315 nipype.interface INFO:
	 sub: /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/2ndLevel/_level2thresh2/spmF_0003_thr.nii -> /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/MainEffectFace/thresh_con3/spmF_0003_thr.nii
260709-23:03:38,317 nipype.workflow INFO:
	 [Node] Finished "datasink_2nd_2", elapsed time 0.009333s.
260709-23:03:40,186 nipype.workflow INFO:
	 [Job 5] Completed (level2_spm_2sample.datasink_2nd_2).
260709-23:03:40,187 nipype.workflow INFO:
	 [MultiProc] Running 0 tasks, and 0 jobs ready. Free memory (GB): 56.51/56.51, Free processors: 16/16, Free GPU slot:0/0.

stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device

<networkx.classes.digraph.DiGraph at 0x74590f2908a0>

contrast_id_1 = [9] #con_0009
contrast_id_2 = [10] #con_0010

l2source2.inputs.contrast_id_1 = contrast_id_1
l2source2.inputs.contrast_id_2 = contrast_id_2

subFolders = [('2ndLevel/', 'InteractionFace_Repetition/')]
subFolders.extend(subFolders1)
subFolders.extend(subFolders2)
subFolders.extend(subFolders3)
subFolders.extend(subFolders4)

datasink_2nd_2.inputs.substitutions = subFolders

wf_2ndlevel_twosample.run(plugin="MultiProc")

260709-23:03:42,238 nipype.workflow INFO:
	 Workflow level2_spm_2sample settings: ['check', 'execution', 'logging', 'monitoring']
260709-23:03:42,243 nipype.workflow INFO:
	 Running in parallel.
260709-23:03:42,245 nipype.workflow INFO:
	 [MultiProc] Running 0 tasks, and 1 jobs ready. Free memory (GB): 56.51/56.51, Free processors: 16/16, Free GPU slot:0/0.
260709-23:03:42,355 nipype.workflow INFO:
	 [Node] Outdated cache found for "level2_spm_2sample.l2source".
260709-23:03:42,356 nipype.workflow INFO:
	 [Node] Outdated cache found for "level2_spm_2sample.l2source".
260709-23:03:42,495 nipype.workflow INFO:
	 [Node] Setting-up "level2_spm_2sample.l2source" in "/home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_2sample/l2source".
260709-23:03:42,498 nipype.workflow INFO:
	 [Node] Outdated cache found for "level2_spm_2sample.l2source".
260709-23:03:42,502 nipype.workflow INFO:
	 [Node] Executing "l2source" <nipype.interfaces.io.DataGrabber>
260709-23:03:42,506 nipype.workflow INFO:
	 [Node] Finished "l2source", elapsed time 0.001315s.
260709-23:03:44,246 nipype.workflow INFO:
	 [Job 0] Completed (level2_spm_2sample.l2source).
260709-23:03:44,248 nipype.workflow INFO:
	 [MultiProc] Running 0 tasks, and 1 jobs ready. Free memory (GB): 56.51/56.51, Free processors: 16/16, Free GPU slot:0/0.
260709-23:03:44,418 nipype.workflow INFO:
	 [Node] Outdated cache found for "level2_spm_2sample.twosampttestdes".
260709-23:03:44,419 nipype.workflow INFO:
	 [Node] Outdated cache found for "level2_spm_2sample.twosampttestdes".
260709-23:03:44,422 nipype.workflow INFO:
	 [Node] Setting-up "level2_spm_2sample.twosampttestdes" in "/home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_2sample/twosampttestdes".
260709-23:03:44,425 nipype.workflow INFO:
	 [Node] Outdated cache found for "level2_spm_2sample.twosampttestdes".
260709-23:03:44,430 nipype.workflow INFO:
	 [Node] Executing "twosampttestdes" <nipype.interfaces.spm.model.TwoSampleTTestDesign>
260709-23:03:46,246 nipype.workflow INFO:
	 [MultiProc] Running 1 tasks, and 0 jobs ready. Free memory (GB): 56.31/56.51, Free processors: 15/16, Free GPU slot:0/0.
                     Currently running:
                       * level2_spm_2sample.twosampttestdes
260709-23:03:57,385 nipype.workflow INFO:
	 [Node] Finished "twosampttestdes", elapsed time 12.952827s.
260709-23:03:58,247 nipype.workflow INFO:
	 [Job 1] Completed (level2_spm_2sample.twosampttestdes).
260709-23:03:58,249 nipype.workflow INFO:
	 [MultiProc] Running 0 tasks, and 1 jobs ready. Free memory (GB): 56.51/56.51, Free processors: 16/16, Free GPU slot:0/0.
260709-23:03:58,359 nipype.workflow INFO:
	 [Node] Outdated cache found for "level2_spm_2sample.level2estimate".
260709-23:03:58,360 nipype.workflow INFO:
	 [Node] Outdated cache found for "level2_spm_2sample.level2estimate".
260709-23:03:58,363 nipype.workflow INFO:
	 [Node] Setting-up "level2_spm_2sample.level2estimate" in "/home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_2sample/level2estimate".
260709-23:03:58,366 nipype.workflow INFO:
	 [Node] Outdated cache found for "level2_spm_2sample.level2estimate".
260709-23:03:58,373 nipype.workflow INFO:
	 [Node] Executing "level2estimate" <nipype.interfaces.spm.model.EstimateModel>
260709-23:04:00,248 nipype.workflow INFO:
	 [MultiProc] Running 1 tasks, and 0 jobs ready. Free memory (GB): 56.31/56.51, Free processors: 15/16, Free GPU slot:0/0.
                     Currently running:
                       * level2_spm_2sample.level2estimate
260709-23:04:12,983 nipype.workflow INFO:
	 [Node] Finished "level2estimate", elapsed time 14.608098s.
260709-23:04:14,249 nipype.workflow INFO:
	 [Job 2] Completed (level2_spm_2sample.level2estimate).
260709-23:04:14,250 nipype.workflow INFO:
	 [MultiProc] Running 0 tasks, and 1 jobs ready. Free memory (GB): 56.51/56.51, Free processors: 16/16, Free GPU slot:0/0.
260709-23:04:14,369 nipype.workflow INFO:
	 [Node] Outdated cache found for "level2_spm_2sample.level2conestimate".
260709-23:04:14,370 nipype.workflow INFO:
	 [Node] Outdated cache found for "level2_spm_2sample.level2conestimate".
260709-23:04:14,375 nipype.workflow INFO:
	 [Node] Setting-up "level2_spm_2sample.level2conestimate" in "/home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_2sample/level2conestimate".
260709-23:04:14,378 nipype.workflow INFO:
	 [Node] Outdated cache found for "level2_spm_2sample.level2conestimate".
260709-23:04:14,385 nipype.workflow INFO:
	 [Node] Executing "level2conestimate" <nipype.interfaces.spm.model.EstimateContrast>
260709-23:04:16,250 nipype.workflow INFO:
	 [MultiProc] Running 1 tasks, and 0 jobs ready. Free memory (GB): 56.31/56.51, Free processors: 15/16, Free GPU slot:0/0.
                     Currently running:
                       * level2_spm_2sample.level2conestimate
260709-23:04:27,927 nipype.workflow INFO:
	 [Node] Finished "level2conestimate", elapsed time 13.539982s.
260709-23:04:28,250 nipype.workflow INFO:
	 [Job 3] Completed (level2_spm_2sample.level2conestimate).
260709-23:04:28,252 nipype.workflow INFO:
	 [MultiProc] Running 0 tasks, and 1 jobs ready. Free memory (GB): 56.51/56.51, Free processors: 16/16, Free GPU slot:0/0.
260709-23:04:30,251 nipype.workflow INFO:
	 [MultiProc] Running 0 tasks, and 3 jobs ready. Free memory (GB): 56.51/56.51, Free processors: 16/16, Free GPU slot:0/0.
260709-23:04:30,357 nipype.workflow INFO:
	 [Node] Outdated cache found for "_level2thresh0".
260709-23:04:30,357 nipype.workflow INFO:
	 [Node] Outdated cache found for "_level2thresh0".
260709-23:04:30,359 nipype.workflow INFO:
	 [Node] Outdated cache found for "_level2thresh1".
260709-23:04:30,360 nipype.workflow INFO:
	 [Node] Outdated cache found for "_level2thresh1".
260709-23:04:30,362 nipype.workflow INFO:
	 [Node] Outdated cache found for "_level2thresh2".
260709-23:04:30,362 nipype.workflow INFO:
	 [Node] Outdated cache found for "_level2thresh2".
260709-23:04:30,361 nipype.workflow INFO:
	 [Node] Setting-up "_level2thresh0" in "/home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_2sample/level2thresh/mapflow/_level2thresh0".
260709-23:04:30,364 nipype.workflow INFO:
	 [Node] Outdated cache found for "_level2thresh0".
260709-23:04:30,363 nipype.workflow INFO:
	 [Node] Setting-up "_level2thresh1" in "/home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_2sample/level2thresh/mapflow/_level2thresh1".
260709-23:04:30,366 nipype.workflow INFO:
	 [Node] Outdated cache found for "_level2thresh1".
260709-23:04:30,365 nipype.workflow INFO:
	 [Node] Setting-up "_level2thresh2" in "/home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_2sample/level2thresh/mapflow/_level2thresh2".
260709-23:04:30,368 nipype.workflow INFO:
	 [Node] Outdated cache found for "_level2thresh2".
260709-23:04:30,370 nipype.workflow INFO:
	 [Node] Executing "_level2thresh0" <nipype.interfaces.spm.model.Threshold>
260709-23:04:30,370 nipype.workflow INFO:
	 [Node] Executing "_level2thresh1" <nipype.interfaces.spm.model.Threshold>
260709-23:04:30,372 nipype.workflow INFO:
	 [Node] Executing "_level2thresh2" <nipype.interfaces.spm.model.Threshold>
260709-23:04:32,251 nipype.workflow INFO:
	 [MultiProc] Running 3 tasks, and 0 jobs ready. Free memory (GB): 55.91/56.51, Free processors: 13/16, Free GPU slot:0/0.
                     Currently running:
                       * _level2thresh2
                       * _level2thresh1
                       * _level2thresh0
260709-23:04:39,52 nipype.workflow INFO:
	 [Node] Finished "_level2thresh1", elapsed time 8.680071s.
260709-23:04:39,101 nipype.workflow INFO:
	 [Node] Finished "_level2thresh0", elapsed time 8.729315s.
260709-23:04:39,203 nipype.workflow INFO:
	 [Node] Finished "_level2thresh2", elapsed time 8.828596s.
260709-23:04:40,251 nipype.workflow INFO:
	 [Job 6] Completed (_level2thresh0).
260709-23:04:40,252 nipype.workflow INFO:
	 [Job 7] Completed (_level2thresh1).
260709-23:04:40,252 nipype.workflow INFO:
	 [Job 8] Completed (_level2thresh2).
260709-23:04:40,254 nipype.workflow INFO:
	 [MultiProc] Running 0 tasks, and 1 jobs ready. Free memory (GB): 56.51/56.51, Free processors: 16/16, Free GPU slot:0/0.
260709-23:04:40,352 nipype.workflow INFO:
	 [Node] Outdated cache found for "level2_spm_2sample.level2thresh".
260709-23:04:40,353 nipype.workflow INFO:
	 [Node] Outdated cache found for "level2_spm_2sample.level2thresh".
260709-23:04:40,358 nipype.workflow INFO:
	 [Node] Outdated cache found for "level2_spm_2sample.level2thresh".
260709-23:04:40,365 nipype.workflow INFO:
	 [Node] Setting-up "_level2thresh0" in "/home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_2sample/level2thresh/mapflow/_level2thresh0".
260709-23:04:40,367 nipype.workflow INFO:
	 [Node] Cached "_level2thresh0" - collecting precomputed outputs
260709-23:04:40,368 nipype.workflow INFO:
	 [Node] "_level2thresh0" found cached.
260709-23:04:40,370 nipype.workflow INFO:
	 [Node] Setting-up "_level2thresh1" in "/home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_2sample/level2thresh/mapflow/_level2thresh1".
260709-23:04:40,372 nipype.workflow INFO:
	 [Node] Cached "_level2thresh1" - collecting precomputed outputs
260709-23:04:40,373 nipype.workflow INFO:
	 [Node] "_level2thresh1" found cached.
260709-23:04:40,375 nipype.workflow INFO:
	 [Node] Setting-up "_level2thresh2" in "/home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_2sample/level2thresh/mapflow/_level2thresh2".
260709-23:04:40,376 nipype.workflow INFO:
	 [Node] Cached "_level2thresh2" - collecting precomputed outputs
260709-23:04:40,377 nipype.workflow INFO:
	 [Node] "_level2thresh2" found cached.
260709-23:04:42,251 nipype.workflow INFO:
	 [Job 4] Completed (level2_spm_2sample.level2thresh).
260709-23:04:42,252 nipype.workflow INFO:
	 [MultiProc] Running 0 tasks, and 1 jobs ready. Free memory (GB): 56.51/56.51, Free processors: 16/16, Free GPU slot:0/0.
260709-23:04:42,356 nipype.workflow INFO:
	 [Node] Outdated cache found for "level2_spm_2sample.datasink_2nd_2".
260709-23:04:42,357 nipype.workflow INFO:
	 [Node] Outdated cache found for "level2_spm_2sample.datasink_2nd_2".
260709-23:04:42,360 nipype.workflow INFO:
	 [Node] Setting-up "level2_spm_2sample.datasink_2nd_2" in "/home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_2sample/datasink_2nd_2".
260709-23:04:42,363 nipype.workflow INFO:
	 [Node] Outdated cache found for "level2_spm_2sample.datasink_2nd_2".
260709-23:04:42,367 nipype.workflow INFO:
	 [Node] Executing "datasink_2nd_2" <nipype.interfaces.io.DataSink>
260709-23:04:42,369 nipype.interface INFO:
	 sub: /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/2ndLevel/SPM.mat -> /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/InteractionFace_Repetition/SPM.mat
260709-23:04:42,370 nipype.interface INFO:
	 sub: /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/2ndLevel/spmT_0001.nii -> /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/InteractionFace_Repetition/spmT_0001.nii
260709-23:04:42,371 nipype.interface INFO:
	 sub: /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/2ndLevel/spmT_0002.nii -> /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/InteractionFace_Repetition/spmT_0002.nii
260709-23:04:42,372 nipype.interface INFO:
	 sub: /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/2ndLevel/spmF_0003.nii -> /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/InteractionFace_Repetition/spmF_0003.nii
260709-23:04:42,373 nipype.interface INFO:
	 sub: /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/2ndLevel/con_0001.nii -> /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/InteractionFace_Repetition/con_0001.nii
260709-23:04:42,374 nipype.interface INFO:
	 sub: /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/2ndLevel/con_0002.nii -> /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/InteractionFace_Repetition/con_0002.nii
260709-23:04:42,375 nipype.interface INFO:
	 sub: /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/2ndLevel/ess_0003.nii -> /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/InteractionFace_Repetition/ess_0003.nii
260709-23:04:42,376 nipype.interface INFO:
	 sub: /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/2ndLevel/_level2thresh0/spmT_0001_thr.nii -> /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/InteractionFace_Repetition/thresh_con1/spmT_0001_thr.nii
260709-23:04:42,377 nipype.interface INFO:
	 sub: /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/2ndLevel/_level2thresh1/spmT_0002_thr.nii -> /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/InteractionFace_Repetition/thresh_con2/spmT_0002_thr.nii
260709-23:04:42,378 nipype.interface INFO:
	 sub: /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/2ndLevel/_level2thresh2/spmF_0003_thr.nii -> /home/jovyan/workspace/books/examples/functional_imaging/spm_analysis/level2_spm_results_2sample/InteractionFace_Repetition/thresh_con3/spmF_0003_thr.nii
260709-23:04:42,379 nipype.workflow INFO:
	 [Node] Finished "datasink_2nd_2", elapsed time 0.009914s.
260709-23:04:44,251 nipype.workflow INFO:
	 [Job 5] Completed (level2_spm_2sample.datasink_2nd_2).
260709-23:04:44,253 nipype.workflow INFO:
	 [MultiProc] Running 0 tasks, and 0 jobs ready. Free memory (GB): 56.51/56.51, Free processors: 16/16, Free GPU slot:0/0.

stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device

<networkx.classes.digraph.DiGraph at 0x74590edf3a80>

#Clean up working directory, keep only Datasink
shutil.rmtree("spm_analysis/level2_spm_2sample", ignore_errors=True)

Results¶

The group analysis was only done on N=9 subjects, a voxel-wise threshold of p<0.005 was chosen and a cluster-wise FDR threshold of p<0.05 to correct for multiple comparisons.

Look at the positive effect using the plot_stat_map plotting method of nilearn¶

import warnings
warnings.filterwarnings("ignore", message="Non-finite values detected")

plotting.plot_stat_map(opj(experiment_dir, 'level2_spm_results_1sample/con5/spmT_0001_thr.nii'), title='Positive Effect', dim=1, display_mode='y', cut_coords=(-45, -30, -15, 0, 15), threshold=2, vmax=8, cmap='viridis');

Look at the results using the glass brain plotting method of¶

Note: with 5 subjects × 2 runs this is an underpowered demonstration — expect only the strongest contrast to survive thresholding; subtler contrasts may render as empty glass brains.

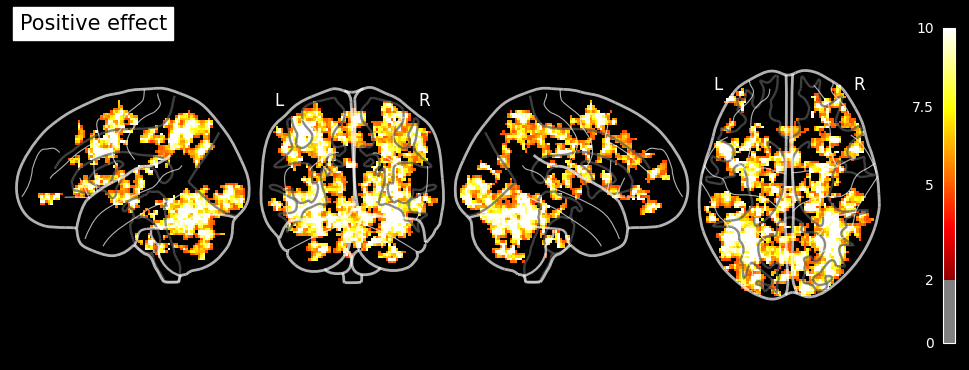

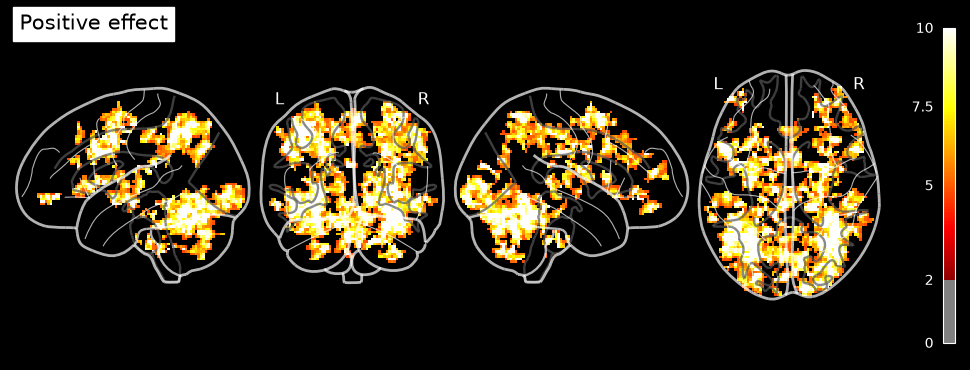

plotting.plot_glass_brain(opj(experiment_dir, 'level2_spm_results_1sample/con5/spmT_0001_thr.nii'),
                          colorbar=True, threshold=2, display_mode='lyrz', black_bg=True, vmax=10, title='Positive effect');

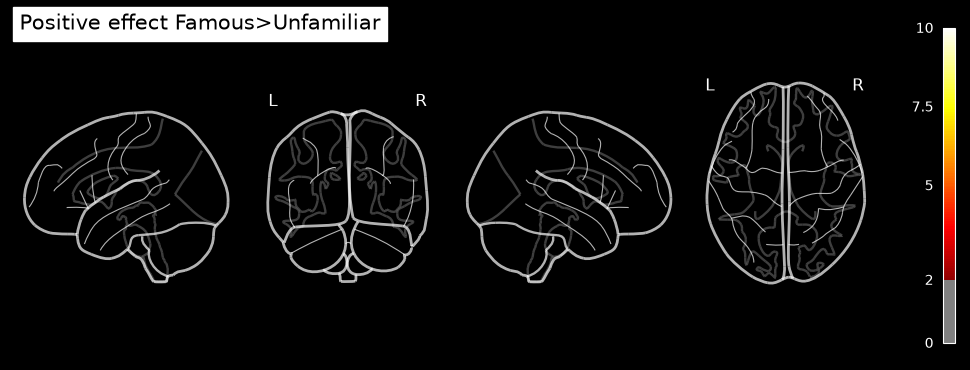

plotting.plot_glass_brain(opj(experiment_dir, 'level2_spm_results_1sample/con6/spmT_0001_thr.nii'),
                          colorbar=True, threshold=2, display_mode='lyrz', black_bg=True, vmax=10, title='Positive effect Famous>Unfamiliar');

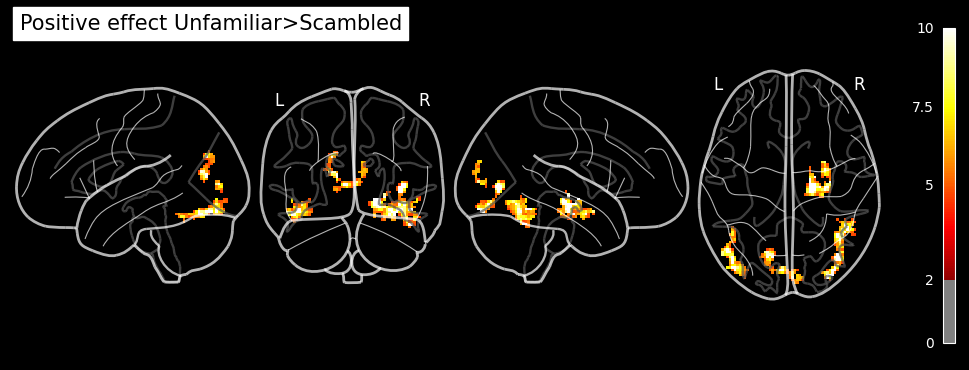

plotting.plot_glass_brain(opj(experiment_dir, 'level2_spm_results_1sample/con7/spmT_0001_thr.nii'),
                          colorbar=True, threshold=2, display_mode='lyrz', black_bg=True, vmax=10, title='Positive effect Unfamiliar>Scambled');

plotting.plot_glass_brain(opj(experiment_dir, 'level2_spm_results_1sample/con8/spmT_0001_thr.nii'),
                          colorbar=True, threshold=2, display_mode='lyrz', black_bg=True, vmax=10, title='Positive Effect of rep1>rep2');

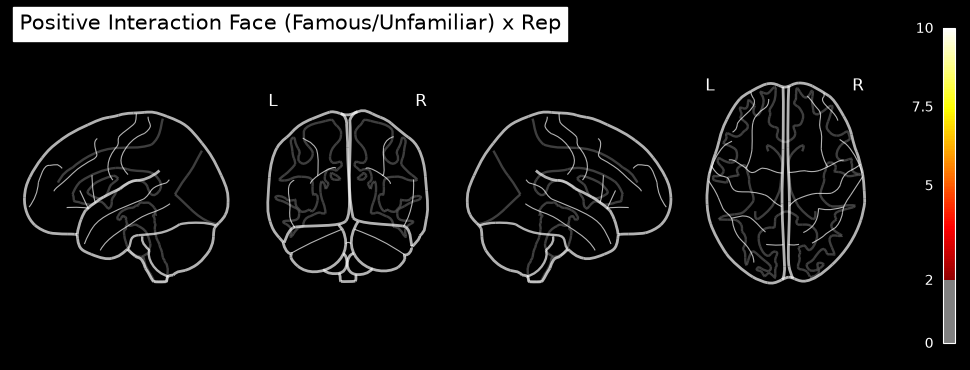

plotting.plot_glass_brain(opj(experiment_dir, 'level2_spm_results_1sample/con9/spmT_0001_thr.nii'),
                          colorbar=True, threshold=2, display_mode='lyrz', black_bg=True, vmax=10, title='Positive Interaction Face (Famous/Unfamiliar) x Rep');

plotting.plot_glass_brain(opj(experiment_dir, 'level2_spm_results_1sample/con10/spmT_0001_thr.nii'),
                          colorbar=True, threshold=2, display_mode='lyrz', black_bg=True, vmax=10, title='Positive Interaction Face (Unfamiliar/Scrambled) x Rep');

/tmp/ipykernel_1966/3476432501.py:4: UserWarning: empty mask
  plotting.plot_glass_brain(opj(experiment_dir, 'level2_spm_results_1sample/con6/spmT_0001_thr.nii'),
/tmp/ipykernel_1966/3476432501.py:13: UserWarning: empty mask
  plotting.plot_glass_brain(opj(experiment_dir, 'level2_spm_results_1sample/con9/spmT_0001_thr.nii'),
/tmp/ipykernel_1966/3476432501.py:16: UserWarning: empty mask
  plotting.plot_glass_brain(opj(experiment_dir, 'level2_spm_results_1sample/con10/spmT_0001_thr.nii'),

Visualize main effects face and interaction face x repetition¶

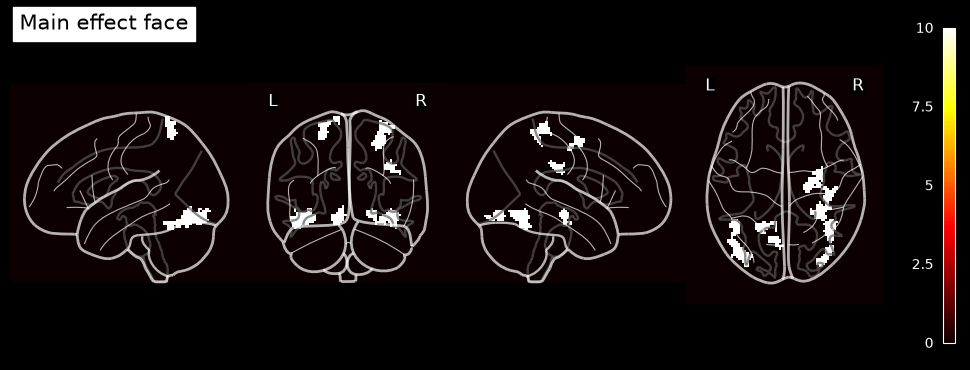

plotting.plot_glass_brain(opj(experiment_dir, 'level2_spm_results_2sample/MainEffectFace/thresh_con3/spmF_0003_thr.nii'),
                          colorbar=True, display_mode='lyrz', black_bg=True, vmax=10, title='Main effect face');


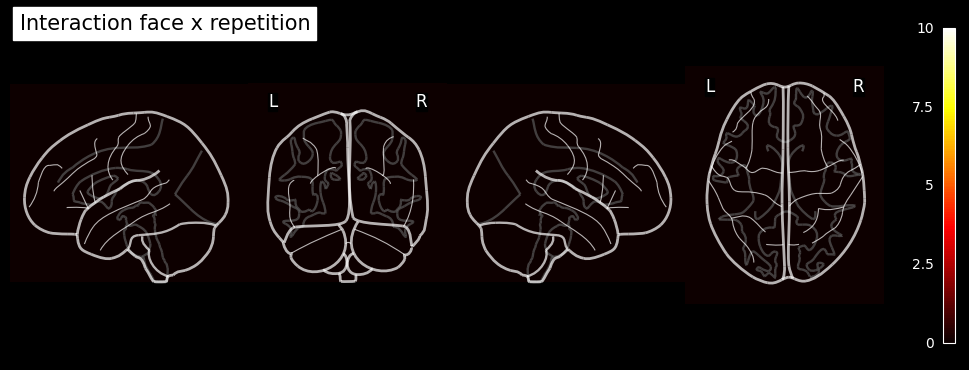

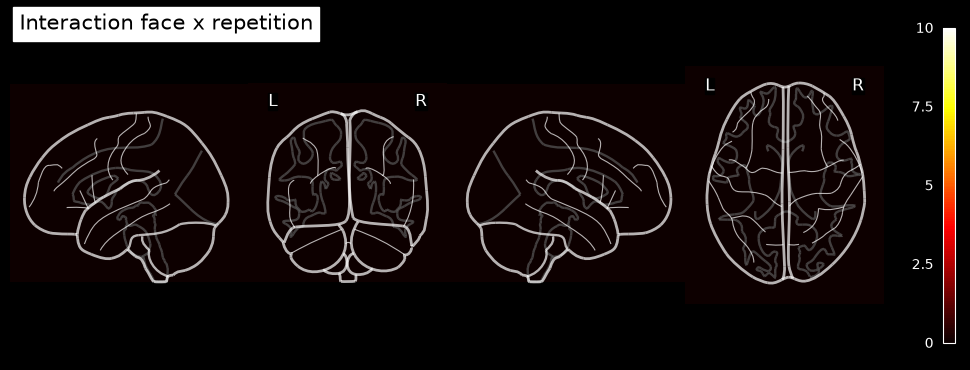

plotting.plot_glass_brain(opj(experiment_dir, 'level2_spm_results_2sample/InteractionFace_Repetition/thresh_con3/spmF_0003_thr.nii'),
                          colorbar=True, display_mode='lyrz', black_bg=True, vmax=10, title='Interaction face x repetition');

Dependencies in Jupyter/Python¶

Using the package watermark to document system environment and software versions used in this notebook, alongside the Neurodesktop version extracted from the JUPYTER_IMAGE or NEURODESKTOP_VERSION environment variables.

import os

%load_ext watermark

%watermark
%watermark --iversions

neurodesktop_version = (
    os.environ.get('JUPYTER_IMAGE', '').split(':')[-1] or
    os.environ.get('NEURODESKTOP_VERSION', 'unknown')
)

print(f"Neurodesktop version: {neurodesktop_version}")

Last updated: 2026-07-09T23:04:54.366536+00:00

Python implementation: CPython
Python version       : 3.13.13
IPython version      : 9.12.0

Compiler    : GCC 14.3.0
OS          : Linux
Release     : 6.8.0-111-generic
Machine     : x86_64
Processor   : x86_64
CPU cores   : 16
Architecture: 64bit

IPython   : 9.12.0
json      : 2.0.9
matplotlib: 3.10.9
nilearn   : 0.13.1
nipype    : 1.11.0
numpy     : 2.4.6
packaging : 25.0
pandas    : 2.3.3
scipy     : 1.16.3

Neurodesktop version: 2026-06-04

References¶

Esteban, O., Markiewicz, C. J., Burns, C., Goncalves, M., Jarecka, D., Ziegler, E., Berleant, S., Ellis, D. G., Pinsard, B., Madison, C., Waskom, M., Notter, M. P., Clark, D., Manhães-Savio, A., Clark, D., Jordan, K., Dayan, M., Halchenko, Y. O., Loney, F., … Ghosh, S. (2025). nipy/nipype: 1.8.6. Zenodo. 10.5281/ZENODO.15054147
